34
www.seuservice.com
DEMAG.SERVICE
WOOFERSPEAKER
LEFT PLAYER
TEST
RIGHT PLAYER
421-9482

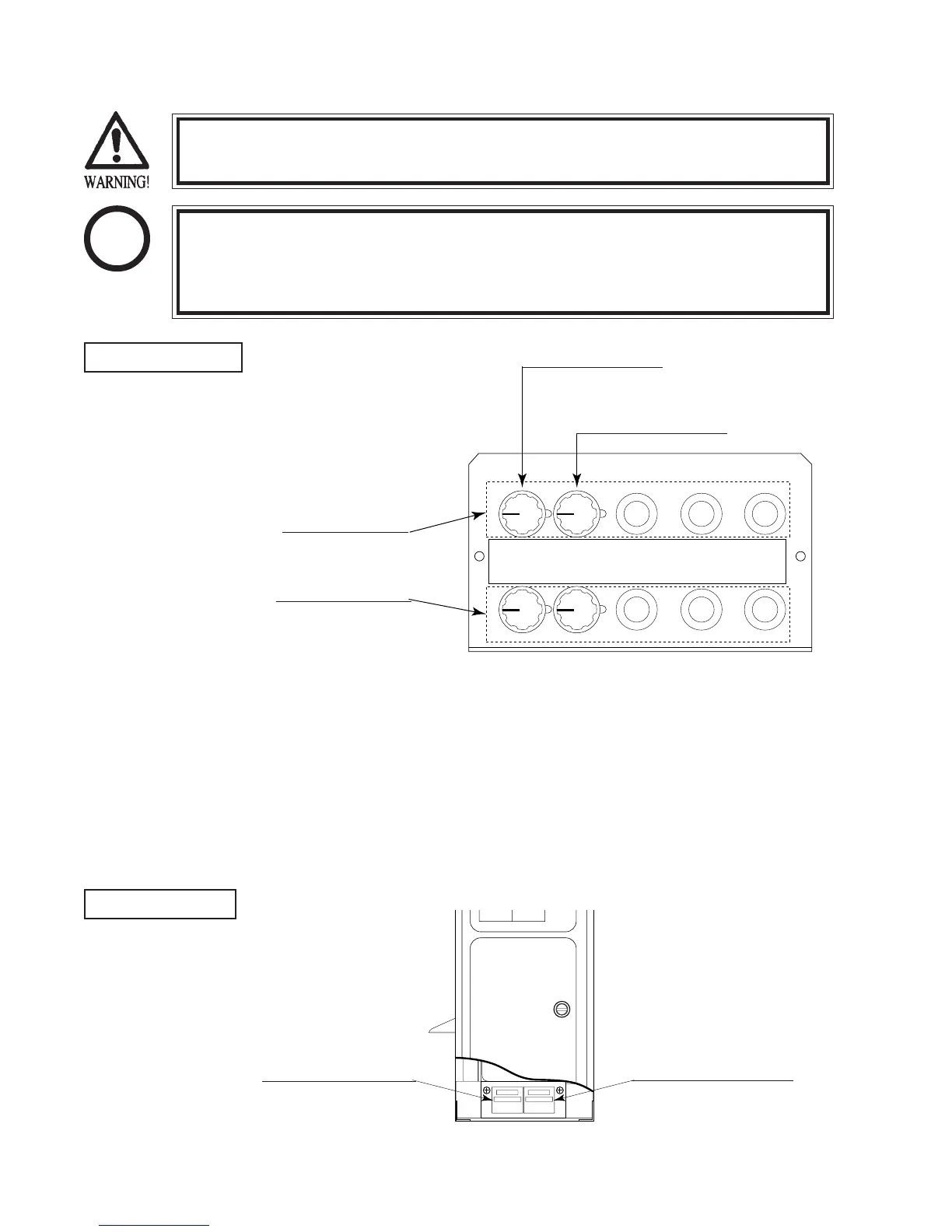

9 - 1 SWITCH UNIT AND COIN METER
Never touch places other than those specified. Touching places not specified can
cause electric shock and short circuit accidents.
Adjust to the optimum sound volume by considering the environmental
requirements of the installation location.
If the COIN METER and the game board are electrically disconnected, game
play is not possible.
STOP
IMPORTANT!
Open the coin chute door, and the
switch unit shown will appear. The
function of each SW is as follows:
SWITCH UNIT
FIG. 9. 1 a SWITCH UNIT
FIG. 9. 1 b COIN METER
Open the Cashbox Door by using the key
to have the Coin Meter appear
underneath the Cashbox.
COIN METER
SWITCHES FOR THE
RIGHT SIDE PLAYER
SWITCHES FOR THE
LEFT SIDE PLAYER
TEST BUTTON: For the handling of the test button, refer to the following pages.
SERVICE BUTTON: Gives credits without registering on the coin meter.
DEMAGNETIZER BUTTON: Eliminates the on-screen color unevenness due to magnetization of
CRT. First use this SW before performing the monitor's color
adjustment.
SERVICE
TEST
COIN METER2 (Right side)
Counts the number of coins
into 2P side.
COIN METER1 (Left side)
Counts the number of coins
into 1P side.
DEMAG
Sound Volume for woofer.
WOOFER
Sound Volume for left/right
Speakers (Seat Backrest)
SPEAKER
To Next Page
