18. GAME BOARD
In order to prevent electric shock and short circuit hazards, be sure to turn
power off before performing work.
Be careful so as not to damage wirings. Damaged wiring can cause fire,
electric shock and short circuit hazards.
Do not expose the Game BD, etc. without a good reason. Failure to observe
this can cause electric shock hazard or malfunctioning.
In this product, setting changes are made during the test mode. The Game BD
need not be operated. Use the Game BD, etc. as is with the same setting made at
the time of shipment so as not to cause electric shock and malfunctioning.
Put the Game Board in the Carton Box (an accessory) together with the Shield
Case when requesting for the replacement or repair. Transporting the Game
Board in an undesignated status for replacement/repair is unacceptable.
STOP
IMPORTANT!

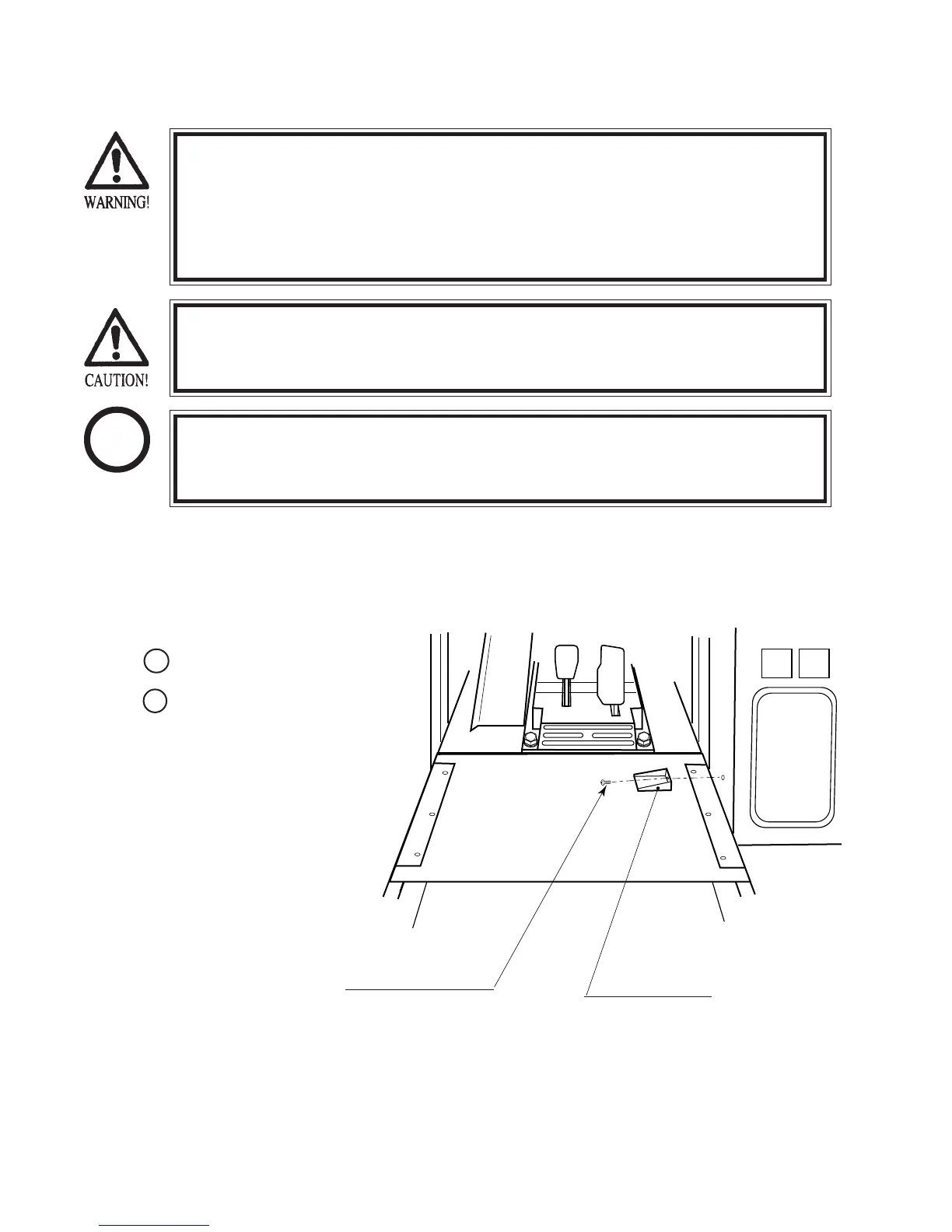

18 - 1 REMOVING THE BOARD
To replace the IC BD (such as Game BD, Drive BD, etc.), take out the IC BD by using the
following procedure:
Turn the MAIN SW off.
Take out a truss screw to remove
the TOWER BRACKET.
FIG. 18. 1 a
TRUSS SCREW (1) black
M4 X 8
TOWER BRACKET
2
1
To Next Page
