79
www.seuservice.com

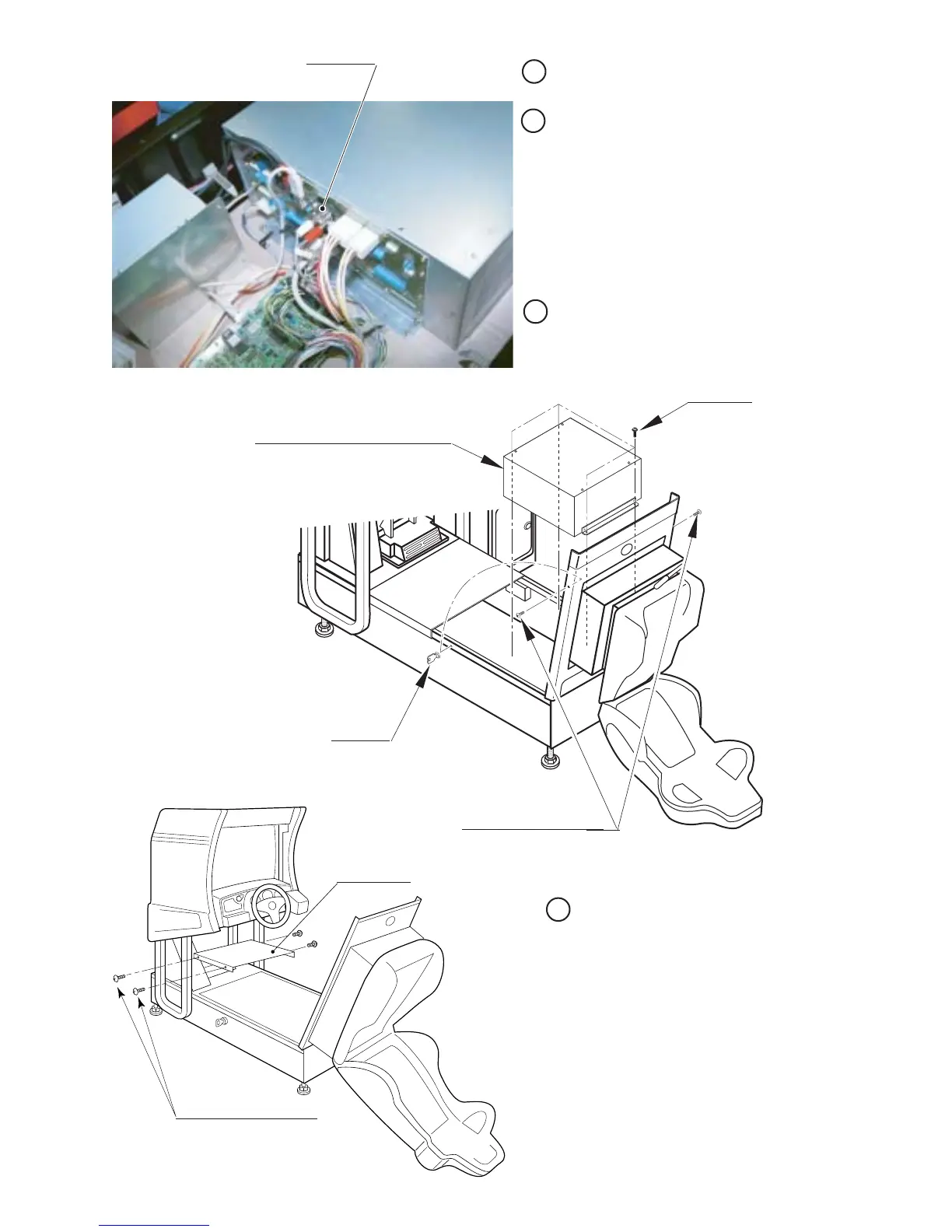

Unlock and take off the 2 truss screws from
the side of the base as shown.
Turn the knob to unlock. The seat can be
inclined in the direction shown. When
inclining the seat, be careful so as not to
damage the seat parts. Carefully cause the
backrest portion of the seat to come into
contact with the floor.
If the floor has hard surfaces, protect the seat
from damage by using a cloth, etc. on the
floor surfaces.
Disconnect all connectors from the SHIELD
CASE and take off the 4 screws to remove
the SHIELD CASE.
Take off a total of 4 screws from both
sides with the seat being in an inclined
state and remove BASE LID F.
Removing Base Lid F allows ELEC
BASE to be viewed.
SCREW(4)
M4 X 8,
w/flat & spring washers
SHIELD CASE (GAME BOARD)
PHOTO 18. 1 Disconnect all connectors
NOT USED
FIG. 18. 1 c
FIG. 18. 1 b
UNLOCK
TRUSS SCREW(2)black
M5 X 12
TRUSS SCREW(4)black
M5 X 12
BASE LID F
3
4
5
6
