10 - 2 ADJUSTING AND REPLACING THE HANDLE's (STEERING WHEEL's) V.R.
STOP
IMPORTANT!
ADJUSTlNG THE VOLUME
Loosen the 2 screws which secure the Volume Bracket to disengage gear mesh.
With the Steering Wheel in the centering position, cause gears to be engaged in the manner so
that the Volume Shaft is in the status shown as per FIG. l0.2.
Fasten the screws which secure the Volume Bracket.
Perform Volume setting as per the Volume Setting mode.
After the replacement or adjustment of Volume (V. R.), be sure to set the
centering value of Steering Wheel's V.R. in the Test Mode.
VR BRACKET
SCREW (2)
M4 X 8, w/flat and
spring washers
V.R.
220-5473,220-5484

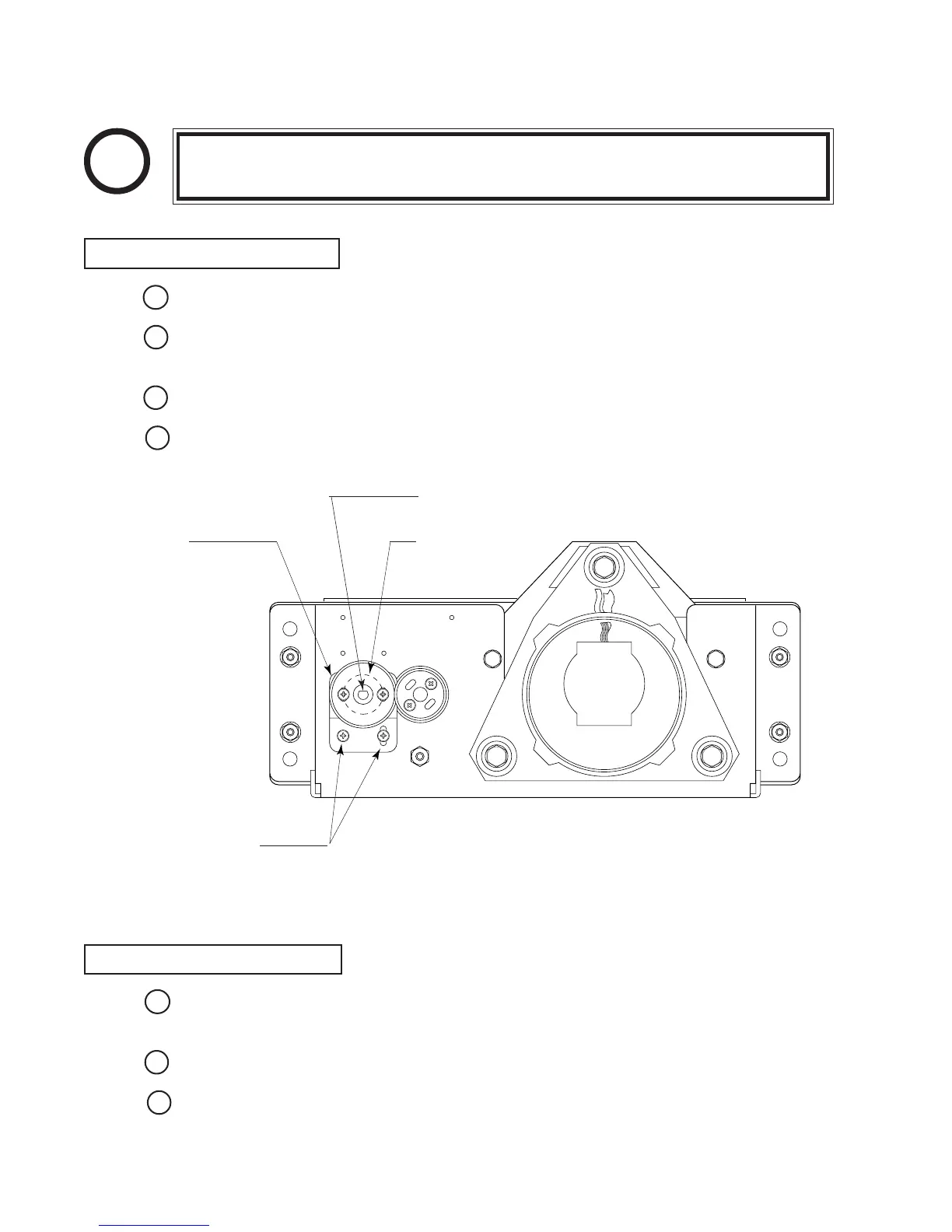

FIG. 10. 2
"D"CUT FACE
REPLAClNG THE VOLUME
Take out the 2 screws which secure the VOLUME BRACKET and remove the VOLUME
BRACKET.
Take out the 2 screws to remove the volume gear and replace the volume.
After replacing the volume, perform volume setting in the volume setting mode.
