If Error display is shown on the screen, remove BASE LID F without turning power off to
check the 7-SEG display on the Drive Control Board. At this time, if the power is turned off,
each of Er 23, 24 and 25 which could have occurred during operation may not be displayed.

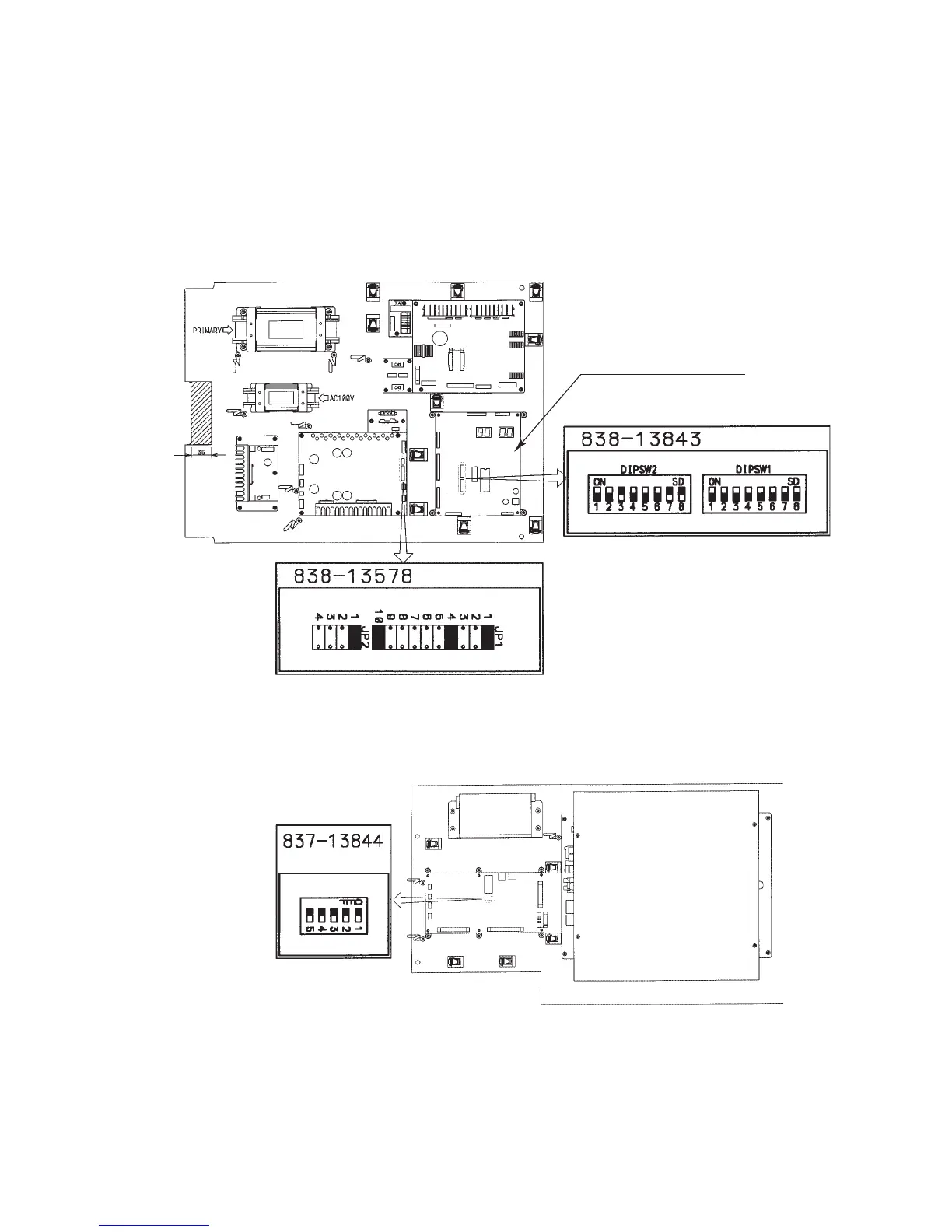

Perform the DIP SW setting on the DRIVE CONTROL BOARD and the ASSY MAIN BD
BASE as shown below.
DRIVE CONTROL BOARD
w/7-SEG DISPLAY
DIP SW setting as shown.
ASSY MAIN BD BASE
ASSY ELEC BASE
DIP SW SETTING
JAMPER SETTING
DIP SW SETTING
