Sega Initial D4 User Manual

42
SHIFT LEVER
10
Once every three months, apply grease to the indicated parts. We recommend Grease Mate-brand spray grease. (Part No.: 090-0066).
10-2 FIG. 01
1
Using a socket driver (for M5 screws), remove the two stopper shafts and two fl at washers. Remove the two
screws.
2
Unscrew the hexagonal nut and remove the shifter base R, spring washer, bearings, crimped spring washer, and
spacer. Remove the two rubber stoppers.
3
Remove the lever shaft, bearings, crimped spring washer, and spacer, and detach the shift lever.
4
Remove the two tapping screws, and detach the knock base.
5
Remove the boss. Apply grease to the spring parts on both sides of the boss.

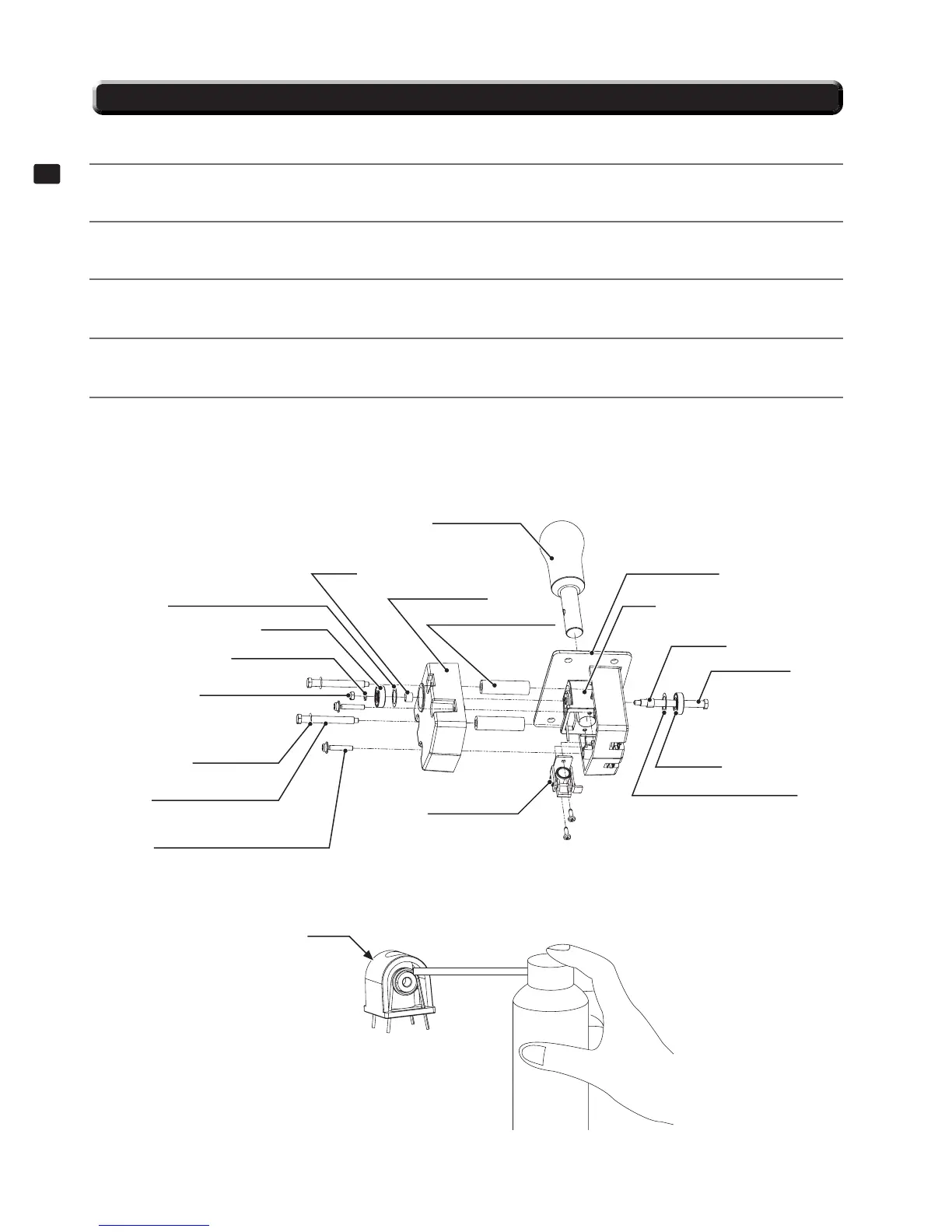

10-2 GREASING
SHIFT LEVER
BOSS
STOPPER SHAFT (2)
SCREW (2)
M4x25, w/fl at & spring washers
M5
HEXAGON NUT
M4
SPRING WASHER
BEARING
CRIMPED SPRING WASHER
SPACER
SHIFTER BASE R
RUBBER STOPPERS (2)
SHIFTER BASE L
KNOCK BASE
CRIMPED SPRING WASHER
BEARING
BOSS
SPACER
LEVER SHAFT
M5
FLAT WASHER
