Sega Initial D4 User Manual

11
ASSEMBLY AND INSTALLATION
6
6-1-4 CONNECTING NETWORK CABLES
1

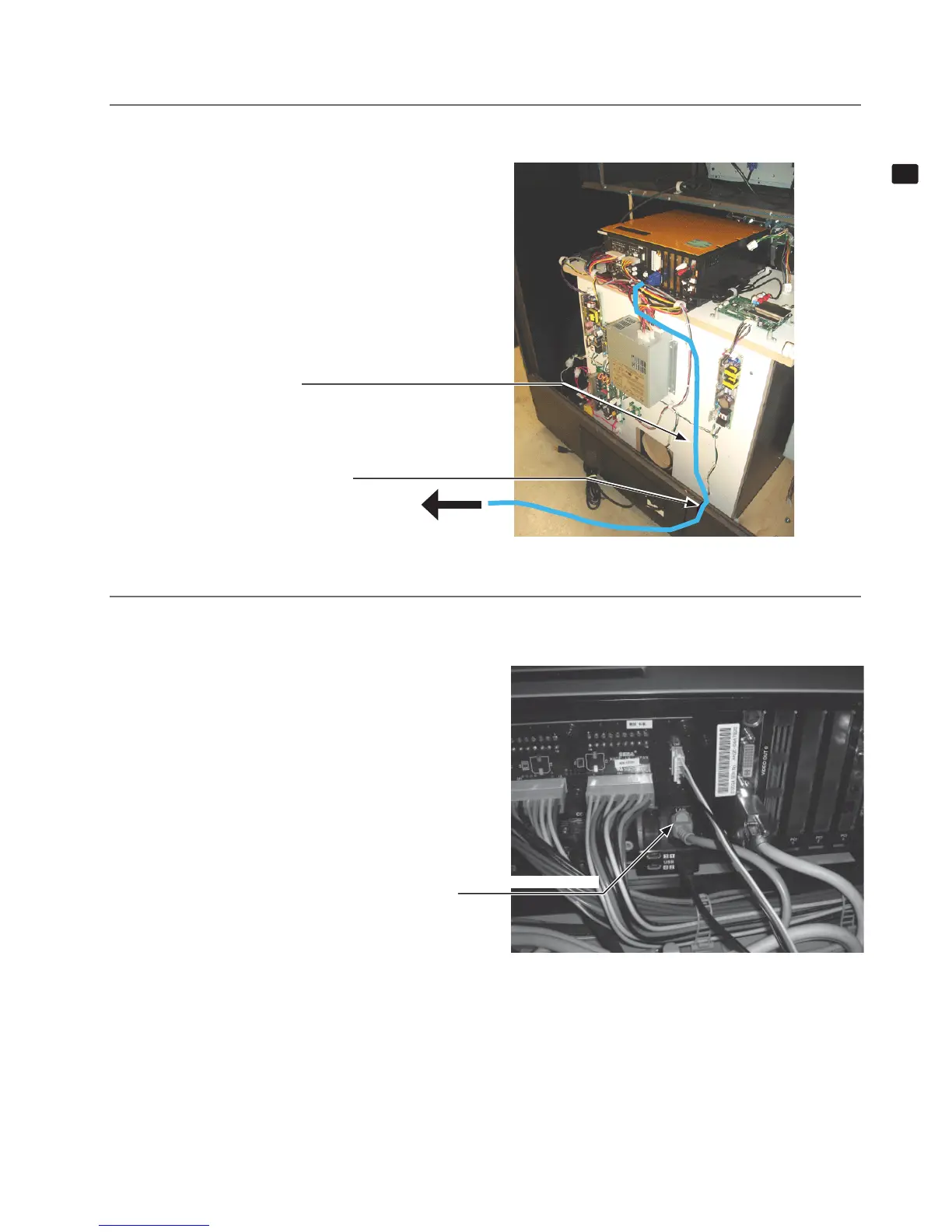

Use LAN cable in cash box to connect 2 games. Open the back door of cabinet. True LAN cable as bottom slit
of cabinet.
6-1-4 FIG. 01
6-1-5 FIG. 02
2
Connect LAN cable connectors to the both LAN connectors (One near by USB MINI connectors) on both Left
and Right cabinet of MAIN PCB. After that close back door of both cabinet.
SLIT FOR LAN CABLE
LAN cable connector
PASS LAN CABLE Like this...
Connect to the
other Main PCB
on other cabinet.
