LC-32LB370U/LC-50LB370U Sharp 32"/50" LED TV

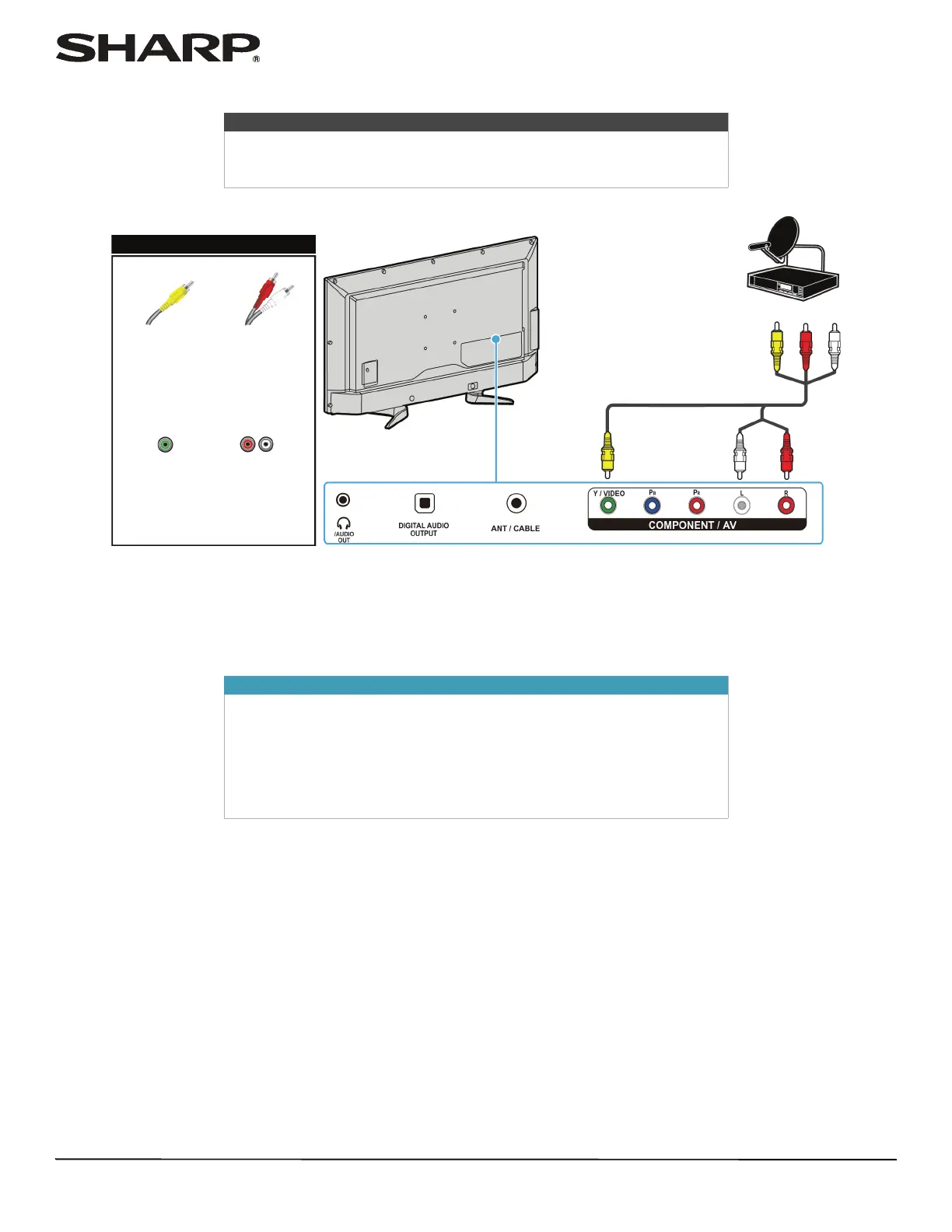

AV (composite video) (good)
1 Make sure that your TV’s power cord is unplugged and all connected equipment is turned off.
2 Connect the incoming cable from the cable wall jack to the cable-in jack on the cable or satellite box.
3 Connect an AV cable (not provided) to the Y/VIDEO jack and L and R audio jacks on the back of your TV and to the AV
and audio out jacks on the cable or satellite box.
4 Plug your TV’s power cord into a power outlet, turn on your TV, then turn on the cable or satellite box.
5 Press INPUT to open the INPUT SOURCE list.
6 Press
S or T to select AV, then press ENTER.
Notes
• Cables are often color-coded to match color-coded jacks.
• The yellow video connector on the AV cable connects to the green
Y/VIDEO jack.
Important
•The Y/VIDEO, P
B , and P R video jacks (used to connect a component
video device) share the L and R audio jacks with the Y/VIDEO jack
(used to connect an AV device). You can only connect one component
video or AV device at a time. We suggest upgrading to HDMI if your DVD
or Blu-ray player supports it.
• When you connect the audio using the L and R audio jacks, the audio
output is analog.
Cable or
satellite box
AV cable
Back of TV
AV cable
connector
AV jack
Audio cable
connectors
Analog
audio jacks
On your TV

Sharp LC-32LB370U Specifications

General

Comb filter	3D
Screen shape	Flat
Response time	- ms
Display diagonal	31.5 \
Display brightness	- cd/m²
LED backlighting type	Direct-LED
Supported video modes	1080p
Contrast ratio (dynamic)	2000000:1
Screen format adjustments	16:9
Supported graphics resolutions	1920 x 1080 (HD 1080)
Motion interpolation technology	-
3D type	Active
Tuner type	Analog & digital
Number of tuners	2 tuner(s)
Analog signal format system	NTSC
Digital signal format system	ATSC
Audio system	DTS Sound
Audio decoders	DTS
RMS rated power	5 W
Number of speakers	2
HDMI ports quantity	3
DVI-D ports quantity	0
USB 2.0 ports quantity	1
Consumer Electronics Control (CEC)	Aquos Link
On Screen Display (OSD) languages	ENG, ESP, FRE
Product color	Black
Panel mounting interface	100 x 100 mm
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	1 W
Power consumption (typical)	47 W

Weight and Dimensions

Depth (with stand)	184 mm
Height (with stand)	464 mm
Weight (with stand)	5100 g
Depth (without stand)	64 mm
Width (without stand)	727 mm
Height (without stand)	437 mm
Weight (without stand)	4900 g
