Siemens S7-1200 User Manual

CP 1243-7 LTE
Operating Instructions, 01/2015, C79000-G8976-C381-01
125
Accessories
C
C.1
Antenna
The following antenna is available for use in mobile wireless networks and can be installed
both indoors and outdoors. The antenna must be ordered separately.

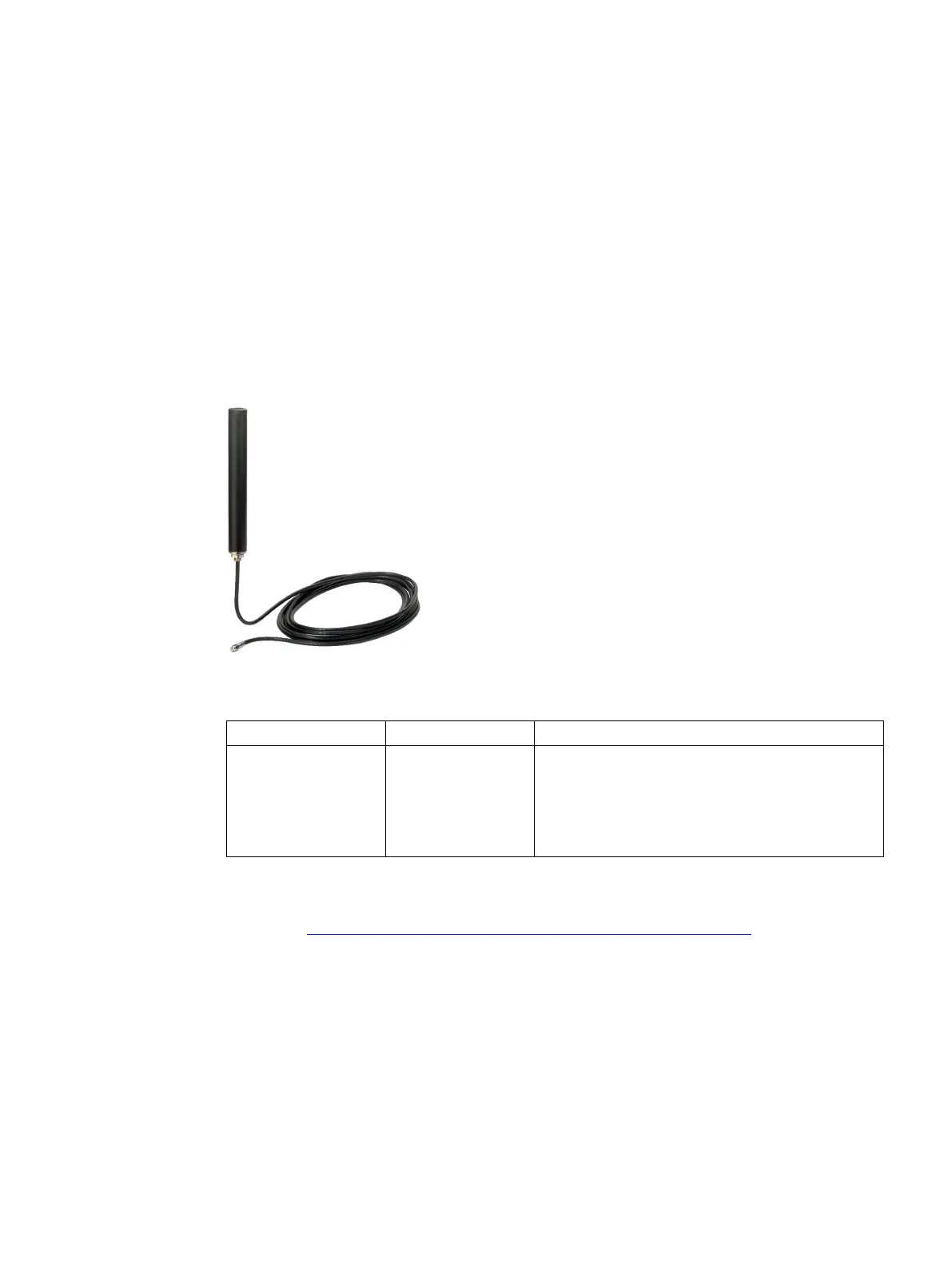

Antenna ANT794-4MR
Figure C-1 Antenna ANT794-4MR
Short name
Order no.
Explanation
ANT794-4MR 6NH9 860-1AA00 Omnidirectional antenna for LTE networks (4G),
GSM networks (2G) and UMTS networks (3G);
weatherproof for indoor and outdoor areas; 5 m
connecting cable connected permanently to the
antenna, SMA connector, including installation
bracket, screws, wall plugs.
You will find detailed information in the documentation of the device. You will find this on the
Internet on the pages of Siemens Industry Online Support under the following entry ID:
23119005 (http://support.automation.siemens.com/WW/view/en/23119005)
C.2
TS Gateway
Use of TS Gateway
TS Gateway is an application used for TeleService connections via the mobile wireless
network with remote SIMATIC stations of the type S7-1200.

Siemens S7-1200 Specifications

General

Digital Inputs	Integrated in CPU or via signal modules (SM)
Digital Outputs	Integrated in CPU or via signal modules (SM)
Analog Inputs	Integrated in CPU or via signal modules (SM)
Analog Outputs	Integrated in CPU or via signal modules (SM)
Communication	PROFINET
Communication Ports	1 x PROFINET
I/O Modules	Signal Modules (SM)
Programming	STEP 7
Power Supply	24V DC
Operating Temperature	0°C to 55°C
Expansion Modules	Communication Modules (CM), Battery Modules (BM)
