LEDs and connectors
2.3 Electrical connectors
CP 1243-7 LTE
Operating Instructions, 01/2015, C79000-G8976-C381-01
31
2.3
Electrical connectors
2.3.1
Power supply
Power supply
The 3-pin socket for the external 24 V DC power supply is located on the top of the module.
The matching plug ships with the product.
You will find the pin assignment of the socket in section Pin assignment of the socket for the
external power supply (Page 116).

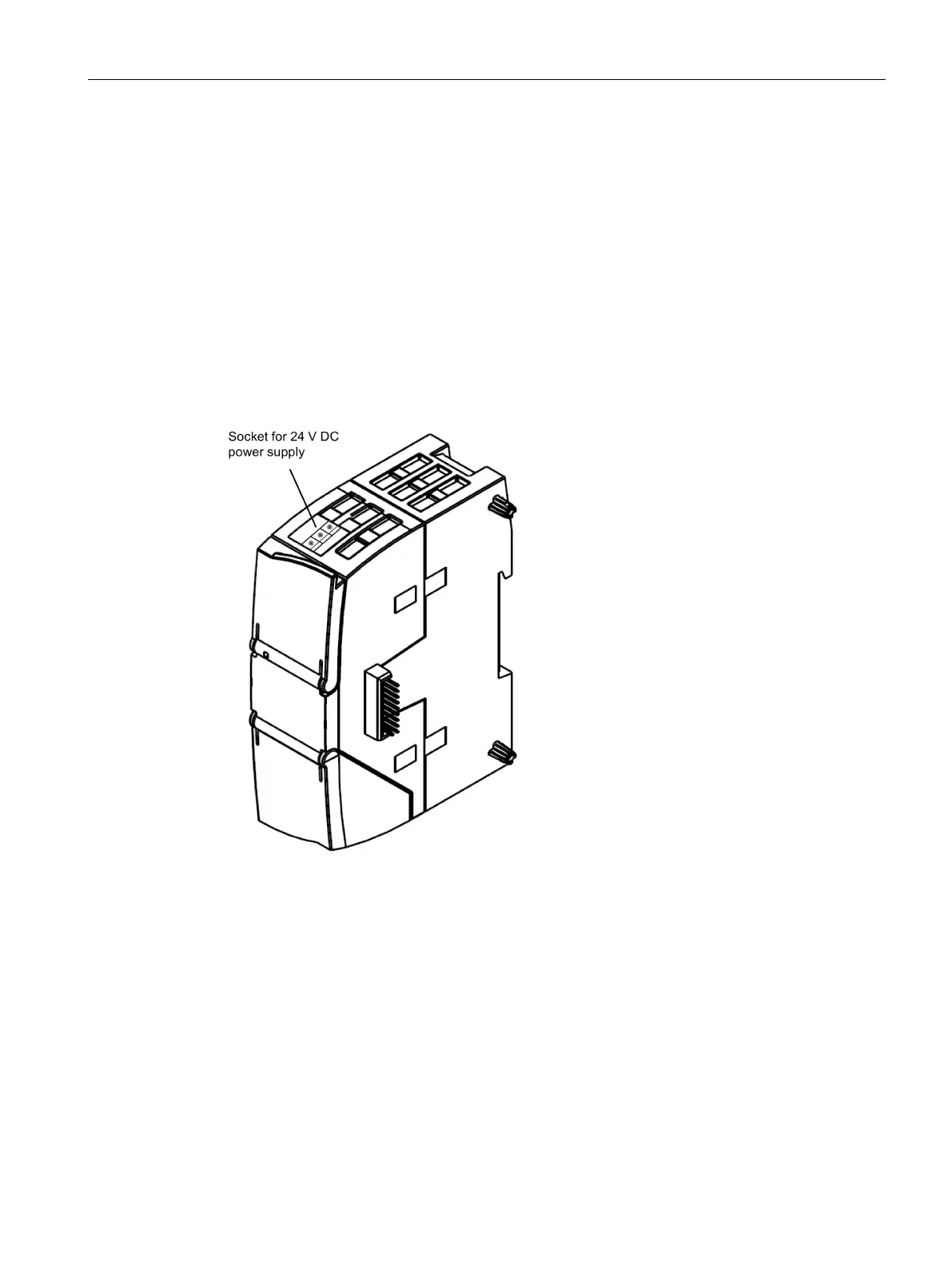

Figure 2-2 Socket for the 24 V DC power supply

Siemens S7-1200 Specifications

General

Digital Inputs	Integrated in CPU or via signal modules (SM)
Digital Outputs	Integrated in CPU or via signal modules (SM)
Analog Inputs	Integrated in CPU or via signal modules (SM)
Analog Outputs	Integrated in CPU or via signal modules (SM)
Communication	PROFINET
Communication Ports	1 x PROFINET
I/O Modules	Signal Modules (SM)
Programming	STEP 7
Power Supply	24V DC
Operating Temperature	0°C to 55°C
Expansion Modules	Communication Modules (CM), Battery Modules (BM)
