Siemens SED2 Commissioning Manual

14/80
Siemens Building Technologies Commissioning Guide CM1G5192en
HVAC Products 5 Electrical installation 26.02.2003

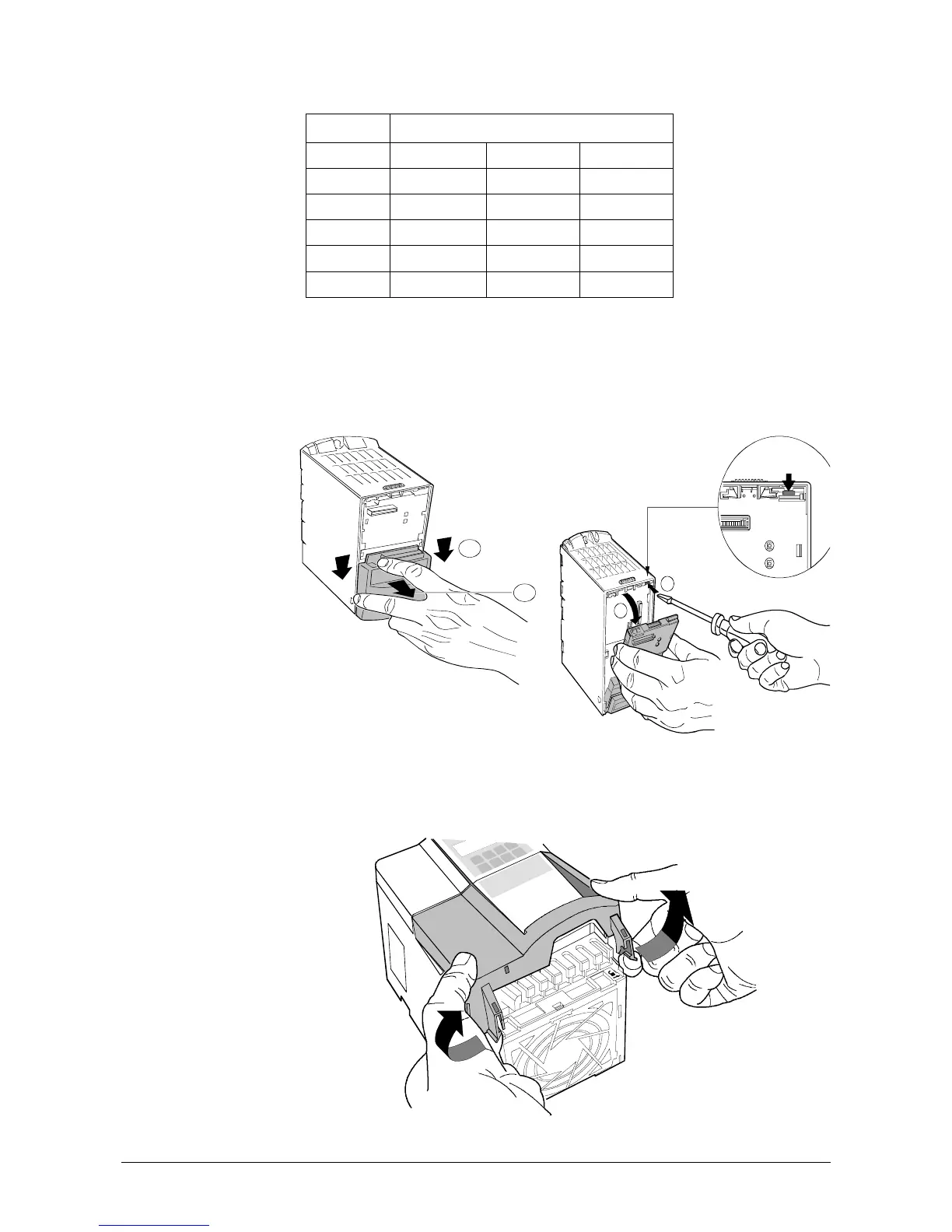

5.1.1 Dimensions of the cable entries in the gland plates of SED2 IP54
Number of entries
Frame size 25.0 mm dia. 40.0 mm dia. 63.0 mm dia.
B
4--
C
4--
D
22-
E
22-
F
2-2
5.2 Wiring of SED2 IP20
5.2.1 Access to connection terminals: Frame size A
Removing the terminal
cover of the I/O module
and the I/O module
itself
5192J16
2
1
1
51
9
2
5.2.2 Access to connection terminals: Frame sizes B and C
Removing the cover of
the mains and motor
terminals
5192J12
