Siemens SED2 Commissioning Manual

17/80
Siemens Building Technologies Commissioning Guide CM1G5192en
HVAC Products 5 Electrical installation 26.02.2003

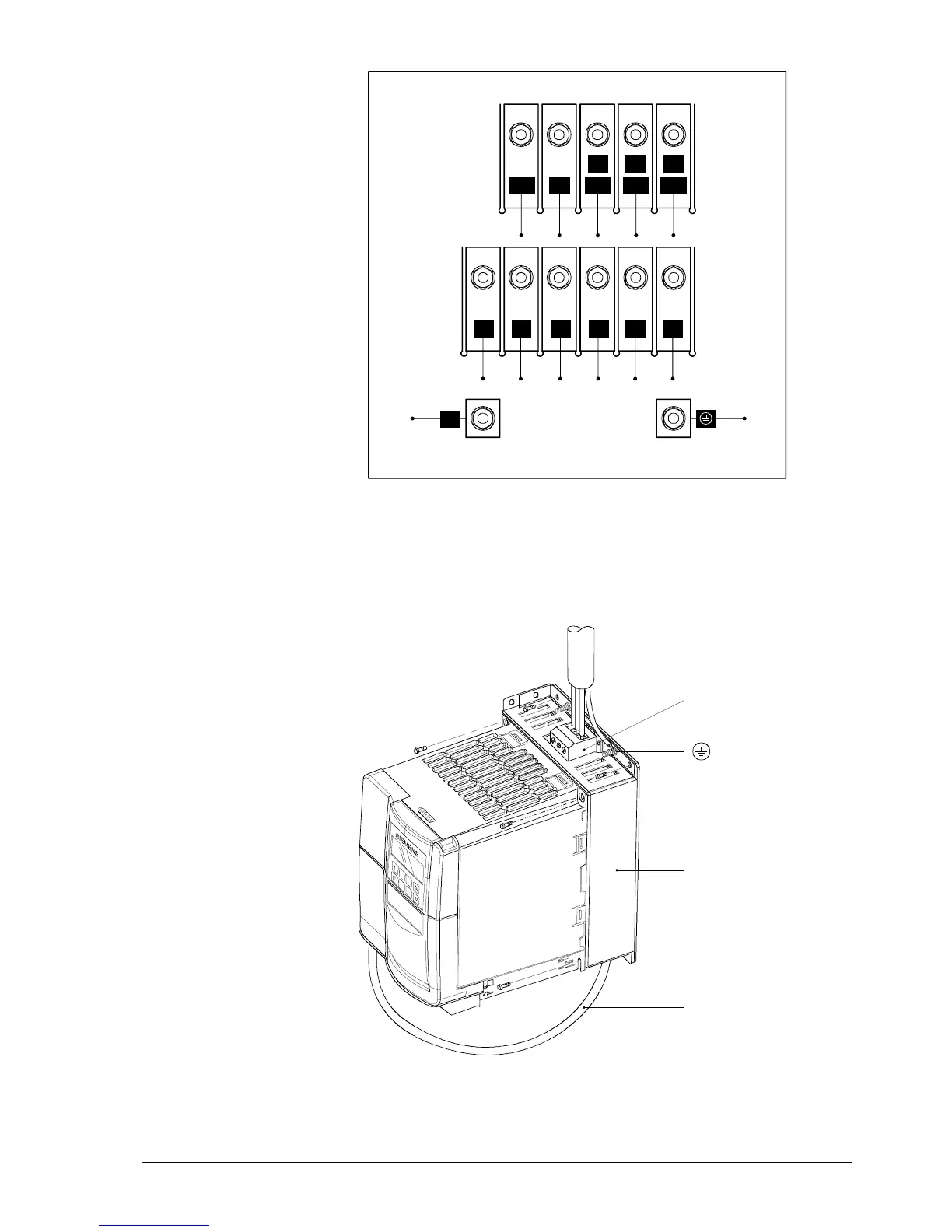

Terminal layout:
Frame size F
DC+DC+DC+DC- B-
R+ B+ B+
L3 U V WL2L1
PE
5192Z08
5.2.5 Power connection for VSDs with a built-in EMC filter
Power connection to the
footprint filter for frame
sizes A…C
The SED2 with frame sizes A, B, and C are delivered with built-in ready wired EMC
footprint filters. Route the power supply to the terminals of the preinstalled footprint
filter.
L
2
L
3
L
1
Incoming mains voltage
Ground
Filter output
5192J15en
Filter
