Siemens SED2 Commissioning Manual

20/80
Siemens Building Technologies Commissioning Guide CM1G5192en
HVAC Products 5 Electrical installation 26.02.2003

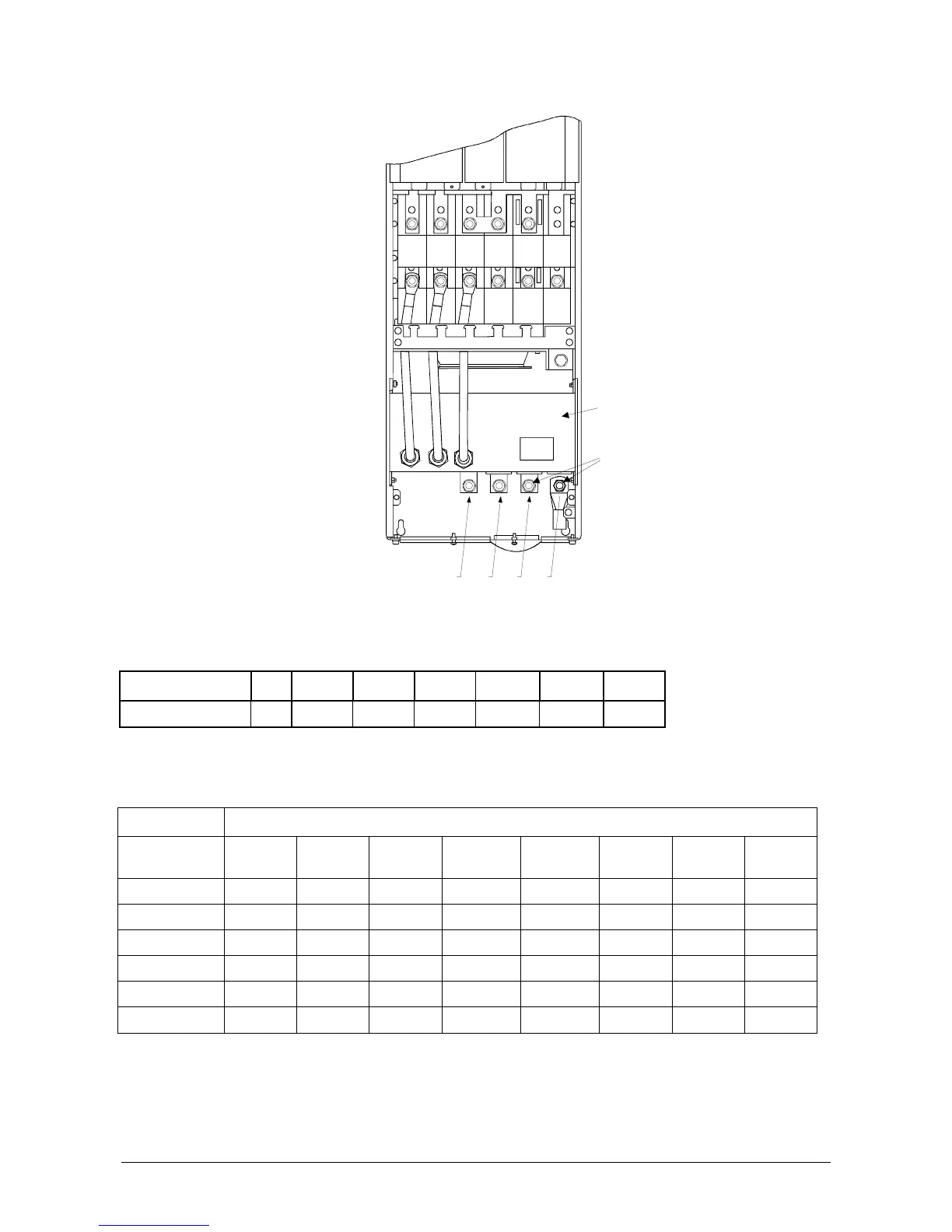

Connection terminals of
SED2 frame size F, IP20,
with built-in EMC filter
PE L1 L2 L3
L1
DC+
B
DC+
B
UV
L2 L3 W
DC- B- DC+
R+
View without cable entry guide
and without lower terminal connection plate
Mains voltage inputs
EMC filter
5192Z09en
5.2.6 Tightening torque for connection terminals
Frame size
ABCD E F
Tightening torque
Nm 1.1 1.5 2.25 10 (max.) 10 (max.) 50
5.2.7 Dimensions of the cable entries in the gland plates of SED2 IP20
Frame size Number of entries
18.8 mm
dia.
22.8 mm
dia.
28.0 mm
dia.
Skullform
28x31 mm
Skullform
45x51 mm
46.0 mm
dia.
48.0 mm
dia.
76.2 mm
dia.
A
-2-- ----
B
22-- ----
C
3-2- - ---
D
1 1 3 ---
E
---- --12-
F
- - - - - 641
