Siemens SED2 Commissioning Manual

34/80
Siemens Building Technologies Commissioning Guide CM1G5192en
HVAC Products 7 Application examples 26.02.2003
Par. no. Value Parameter function Function selection
P2201 50 % Setpoint of pressure control 50 % of 500 Pa = one setpoint 250 Pa
P2253(0) 2224 Setpoint source Internal setpoint
P2306 1 PID acting direction Indirect
P2200(0) 1 Enable PID controller PID controller enabled
P2280 0.5 PID proportional gain
P2285 60 PID integral action time
r2262 Current setpoint
r2272 Current feedback

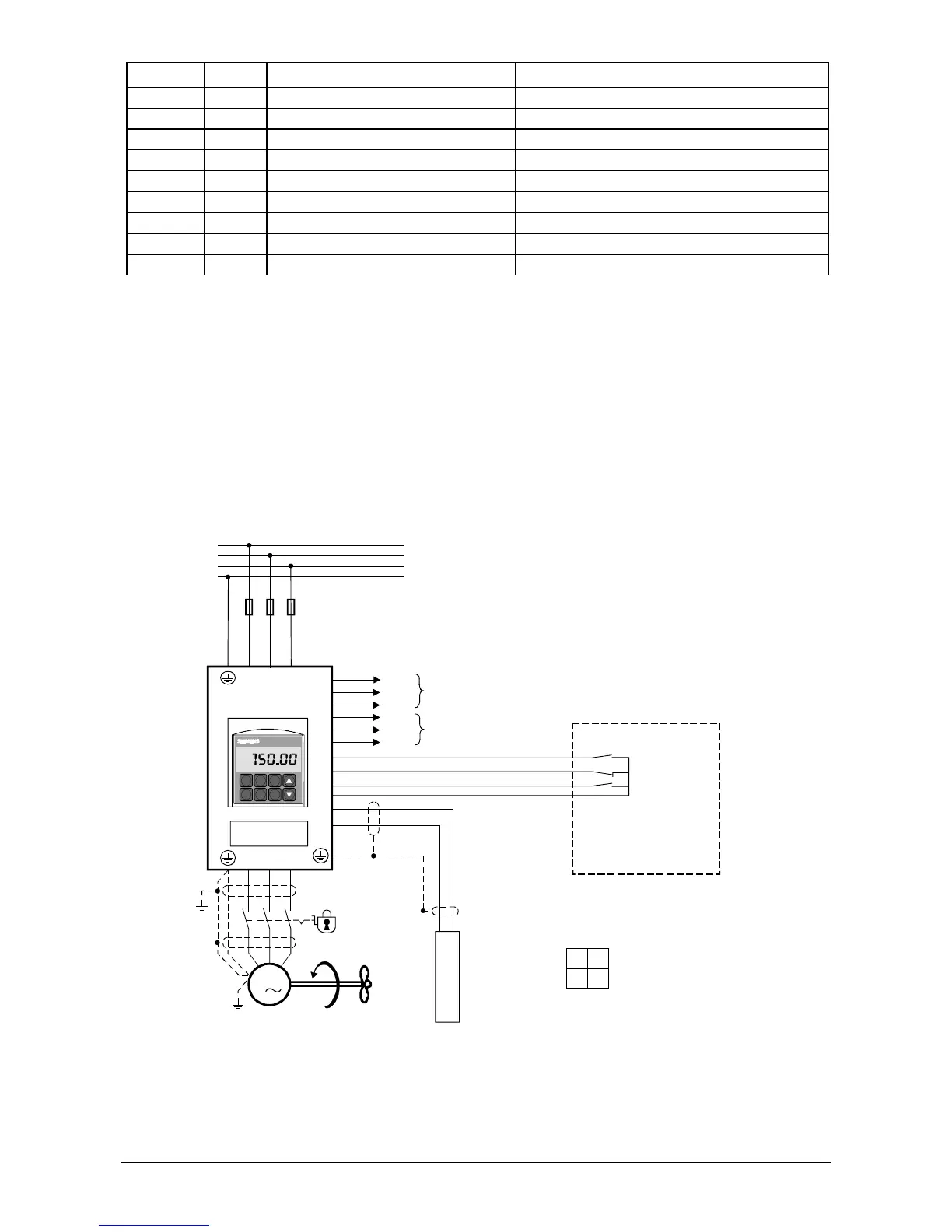

7.5 Application example 5
The speed of a fan motor shall be controlled with the help of the integrated PID controller to keep the CO2
equivalent of the CO2 / VOC sensor / ventilation demand processor high via the signal output.
− Adjust the fixed setpoint (50 % corresponding to the CO2 equivalent of 1000 ppm)
− Switching on / off via digital input 1
− External alarm to digital input 2; in the event of an alarm, the fan will be stopped
− Booster function via digital input 3 (rpm = 100 %)
− Error message via relay output 1
− Indication of operation via relay output 2
Hand
Auto
SED2
0
I
P
Fn
P(1)
Hz
L1
L2
L3
PE
L1 L2 L3
20
9
5
10
2
SED2
uvw
M
3
21
22
23
24
25
6
7
Fuses
Building Management System
(BMS)
Inspection switch
Fan
5192A05en
- Switch on/off
- External alarm
- Booster
Com
Com
Error
Run
Relay 1
Relay 2
Air Quality Sensor
0...10 V DC
DIP switch setting
ON 1 = analog input 1
OFF
❚❚
OFF = DC 0…10 V
1 2 ON = 0…20 mA
2 = analog input 2
OFF = DC 0…10 V
ON = 0…20 mA
