Wizards
4.1 Example wizard
Intelligent Operator Panel (IOP)
36 Operating Instructions, 08/2015, FW V1.6.1, A5E00110011B AF

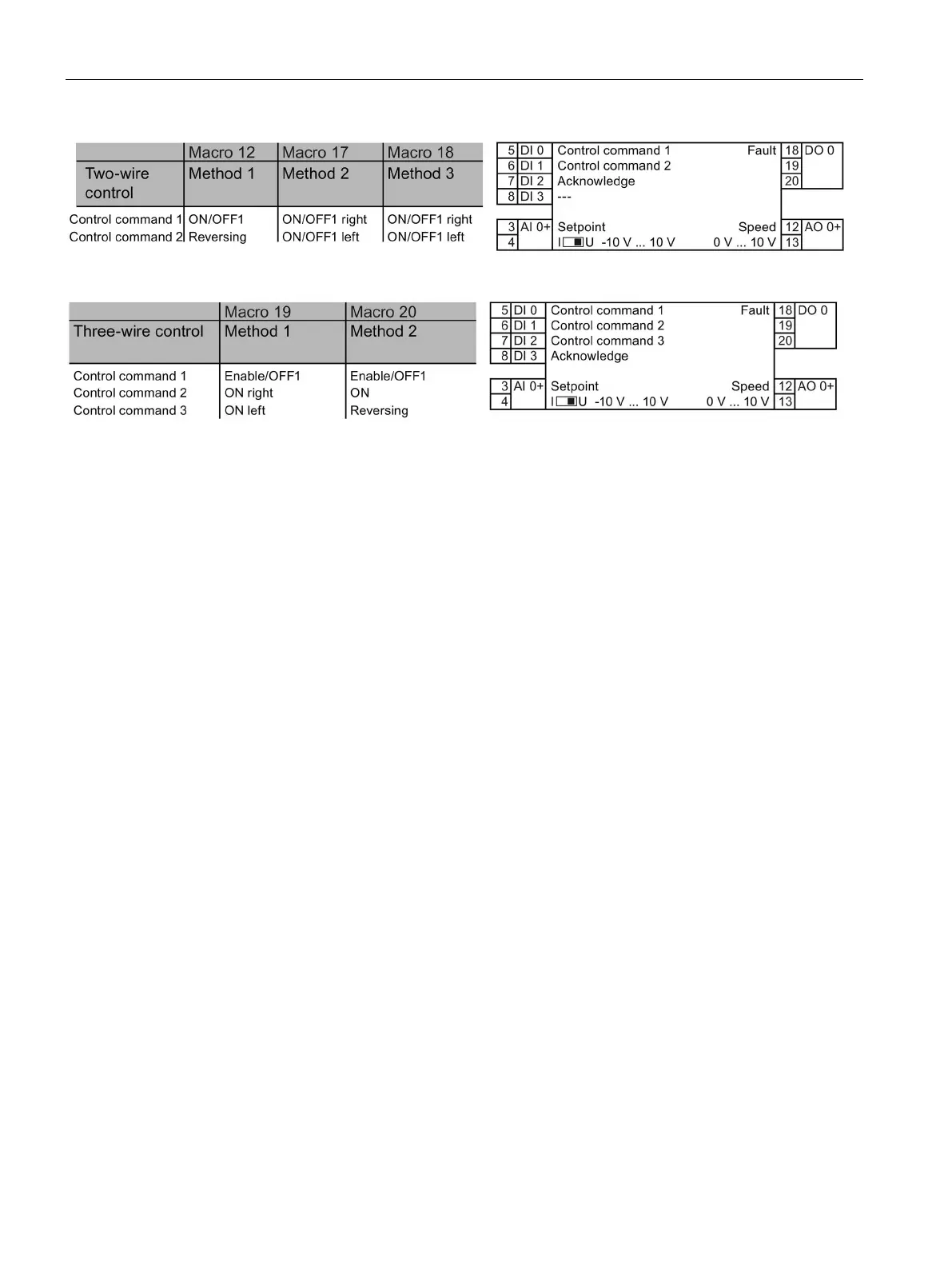

Figure 4-3 Example of two and three wire control macros
Since the purpose of the IOP Wizards are to guide the user through the setting-up and
commissioning of applications, some assumptions must be made as to the technical
knowledge, qualifications and practical knowledge of the potential user.
The user must be a qualified and experienced drives engineer - this is required because they
must have a complete understanding of the application that is to be commissioned.
The user must be fully conversant with all the technologies and protocols of the following:
● PLCs - Set-up, programming and communications
● Inverters - Set-up, wiring and commissioning
● All relevant international, local safety regulations
The information provided will be the information required to wiring the application with
regards to the Inverter inputs, outputs and communications connections.
The user must ensure that all the following actions are completed prior to using the IOP
wizards:
● All necessary equipment is available and installed correctly, according to the relevant
wiring diagram for the specific application wizard.
● All wiring of the Inverter, motor and other devices used within the application is complete
in accordance to the enclosed wiring diagrams.
● All necessary information, such as the rating label information of the motor, is available.
● All components of the system have been tested to ensure their correct and safe
installation.
