Menu
6
6.1
Overview
Overview
The "Menu" is selected from the three menu options at the bottom of the IOP screen. If the
menu options are not displayed, then one press of the Wheel will display the menu options.
Menu selection

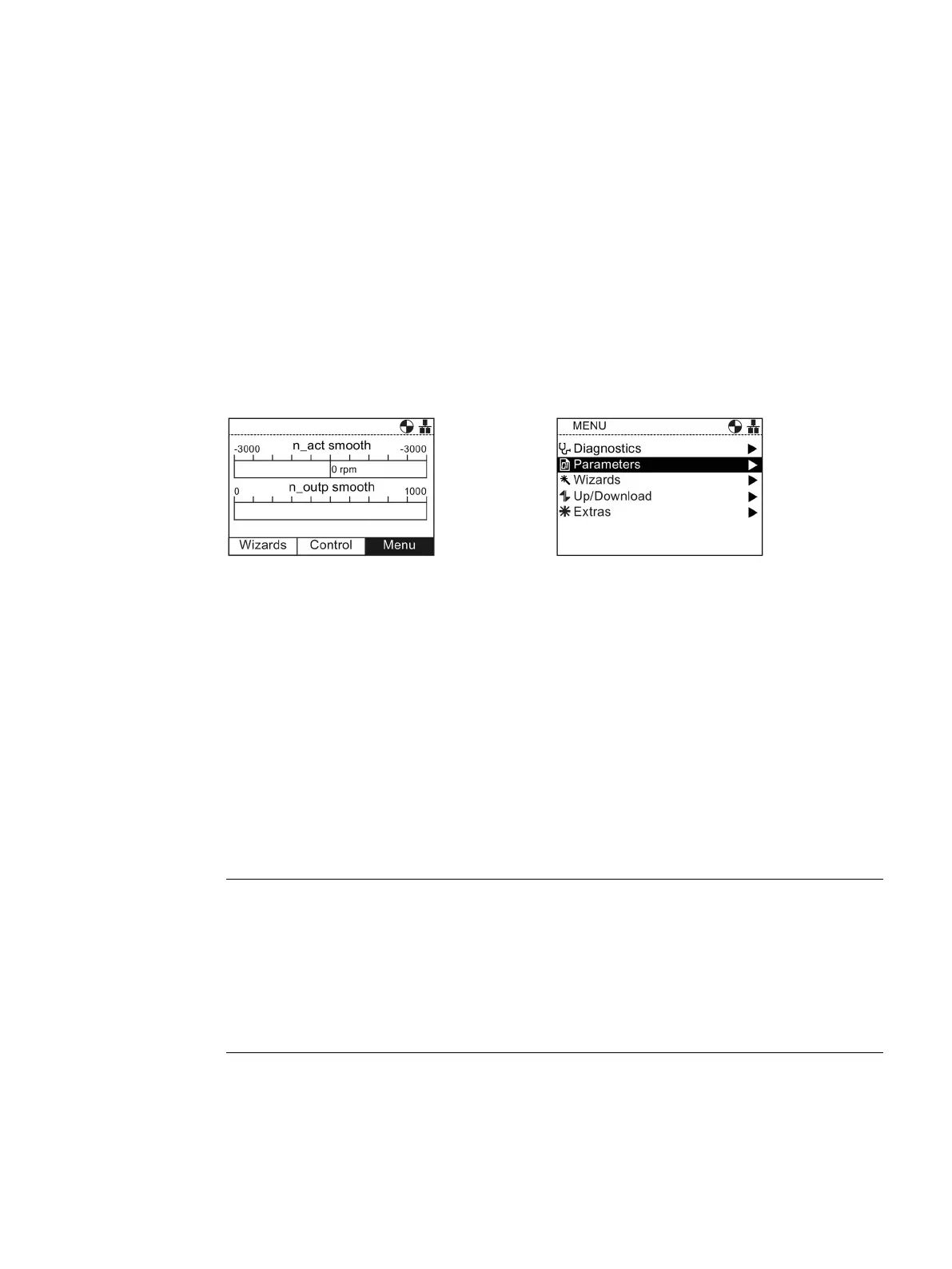

Menu screen
When the "Menu" option is selected the following functions are displayed:
● Diagnostics
● Parameters
● Wizards (this is a shortcut to the main Wizards menu)
● Up/Download
● Extras
By rotating the Wheel the required function can be highlighted. Pushing the Wheel confirms
the selection and further sub-menus will be displayed. Pressing
"Esc"
once, will return the
IOP to the previous screen, a longer press will return the display to the "Status" screen.
Note
IOP functional support
The actual menu structure and functionality of the IOP will be influenced by the following
factors:
•
The software version and type of Control Unit to which the IOP is fitted.
•
The firmware and software version of the IOP.
•
The selected functional group filtering of the parameters.
