Siemens SINUMERIK 808D Programming And Operating Manual

Turning Part 2: Programming (Siemens instructions)
Programming and Operating Manual, 05/2012, 6FC5398-5DP10-0BA0
197

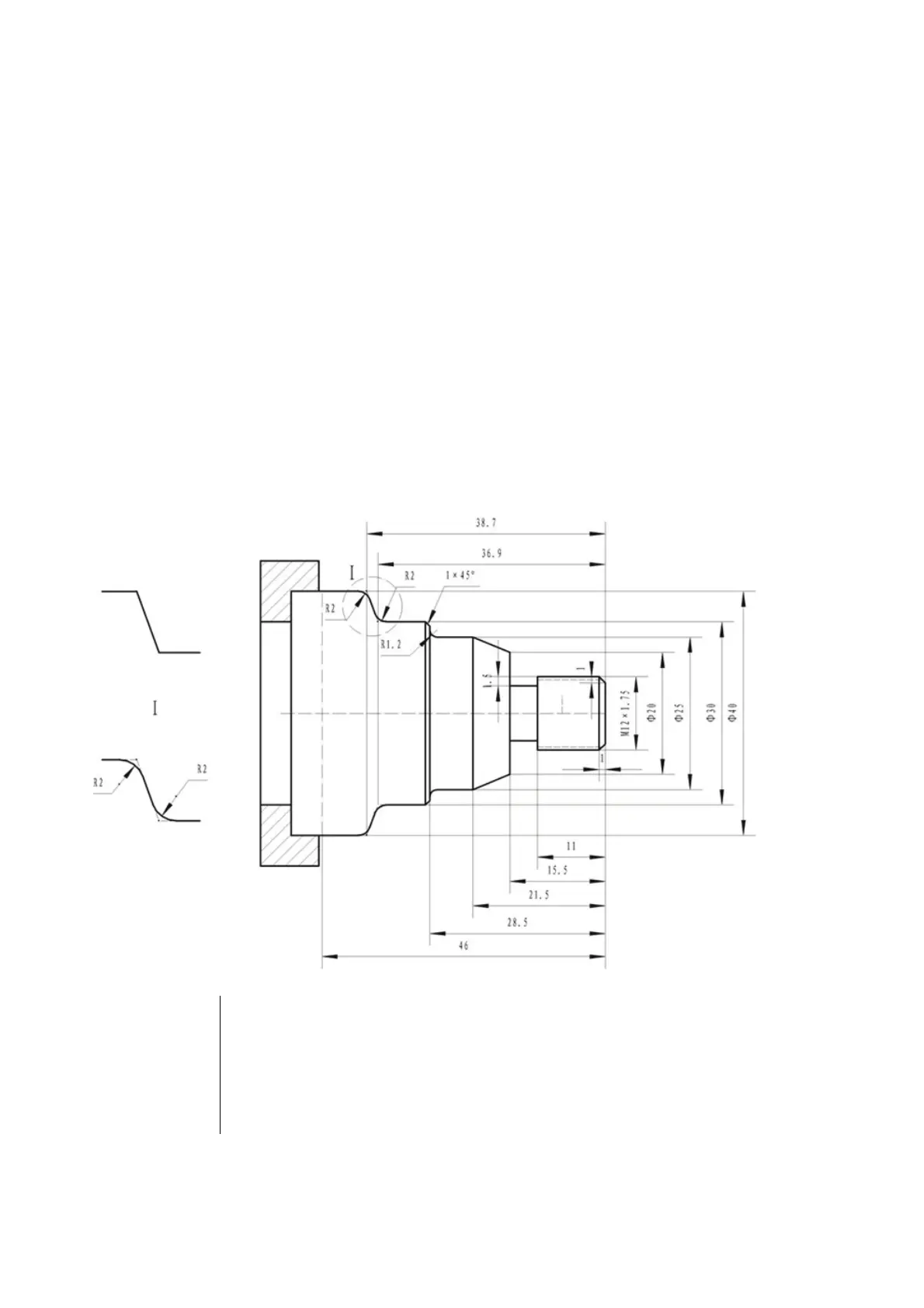

Typical turning program
3
Blank data
Blank material: Hard aluminum V
Blank diameter: 50 mm
Blank length: 60 mm (machining length: 46 mm; clamping length: 10 mm)
Required tools
T1: the tool for relief cutting
T2: the tool for grooving
T3: the tool for thread cutting
Programming example1
T1
S2000 M03
F0.4
G0 X60 Z10
CYCLE95( "PART_CONTOUR:END_T", 1.00000, , ,0.20000, 0.30000, 0.20000, 0.10000, 9, ,
,1.00000)
T2
