Mounting
7.3 Assembly and disassembly with different mounting systems
SIRIUS - SIRIUS 3RA load feeders
108 Manual, 09/2016, A5E03656507520A/RS-AB/003

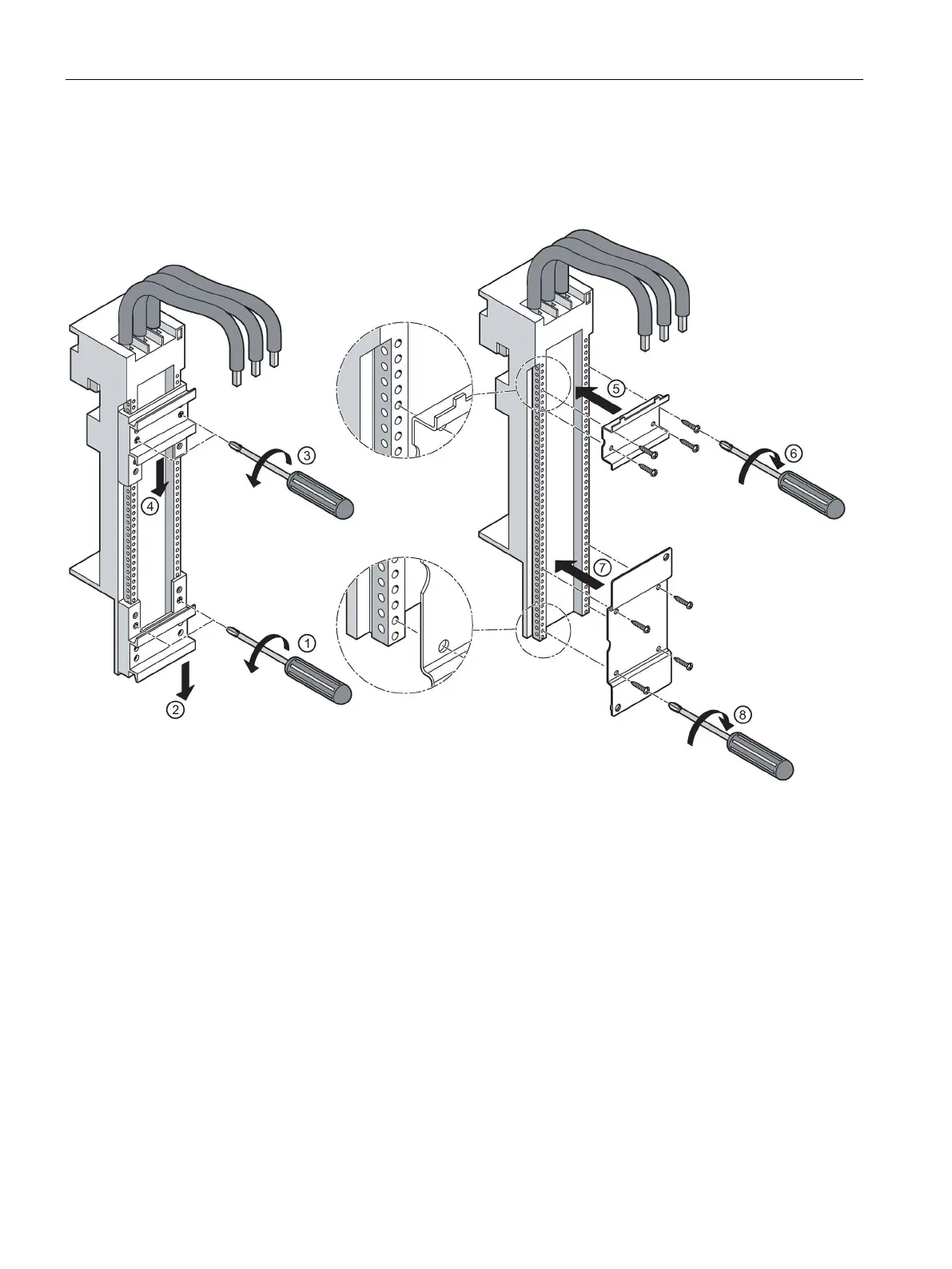

Installing the vibration and shock kit for direct-on-line starters in size S2
The following figures show how to install the vibration and shock kit for direct-on-line starters
in size S2.
/
Use a screwdriver to release the screws of the lower plastic DIN rail, and remove the plastic DIN rail by pulling it
down off the busbar adapter.
/
Use a screwdriver to release the screws of the upper plastic DIN rail, and remove the plastic DIN rail by pulling it
down off the busbar adapter.
/
Screw the metal DIN rail tight on the busbar adapter.
Ensure the metal DIN rail is screwed into the busbar adapter in the 5th opening from the top as shown in the figure.
Tightening torque: 0.5 ... 0.8 Nm
/
Screw the fastening plate tight to the busbar adapter.
Ensure the fastening plate is screwed into the busbar adapter in the 2nd opening from below as shown in the
figure.
Tightening torque: 0.5 ... 0.8 Nm
