Mounting
7.2 Mounting and disassembling load feeders
SIRIUS - SIRIUS 3RA load feeders
Manual, 09/2016, A5E03656507520A/RS-AB/003
59
②
Pull the link module and the contactor attached to it toward you to remove it.

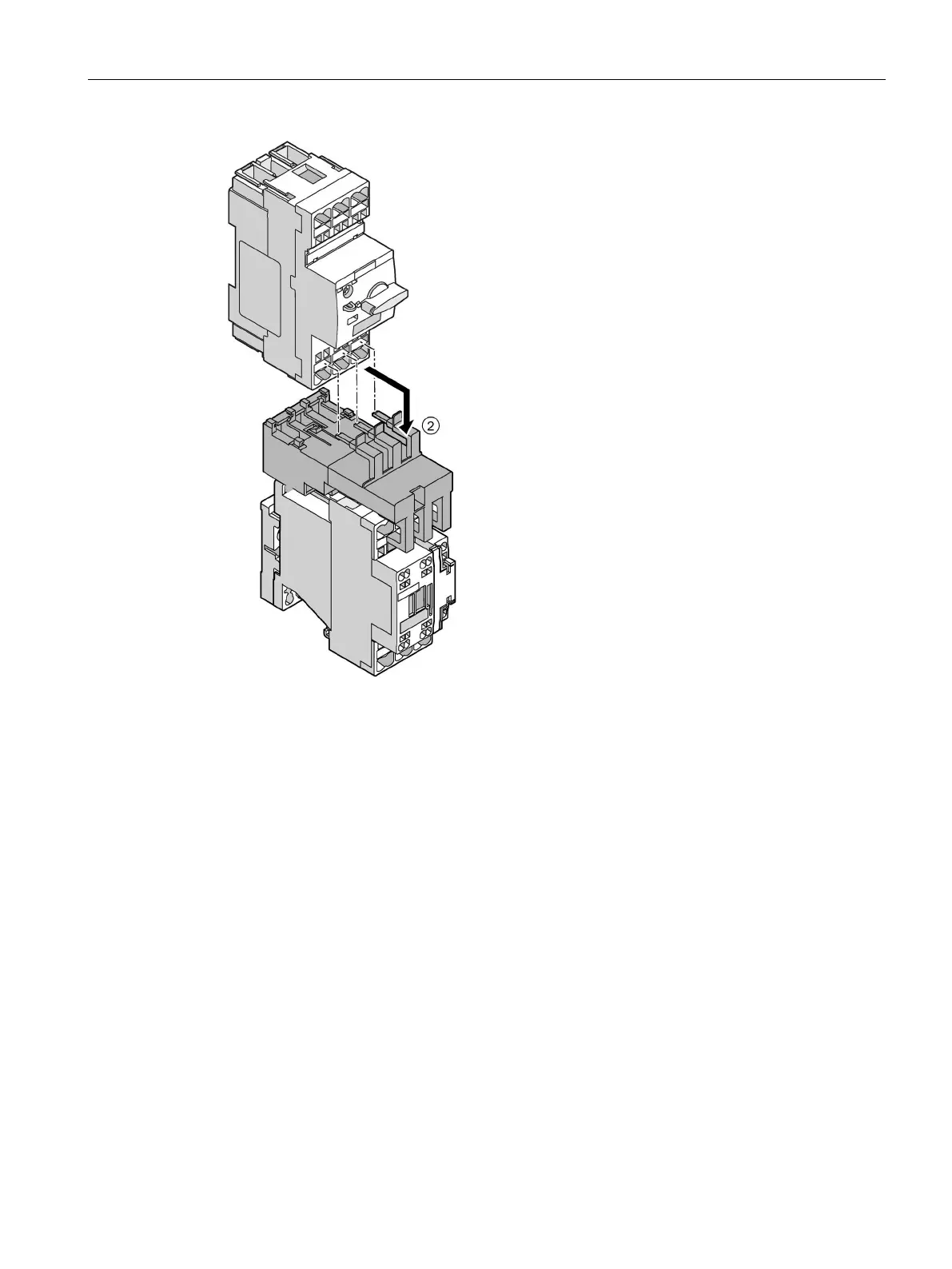

Figure 7-13 Disassembling an S0 load feeder with spring-loaded connection system
