Mounting
7.3 Assembly and disassembly with different mounting systems
SIRIUS - SIRIUS 3RA load feeders
Manual, 09/2016, A5E03656507520A/RS-AB/003
71

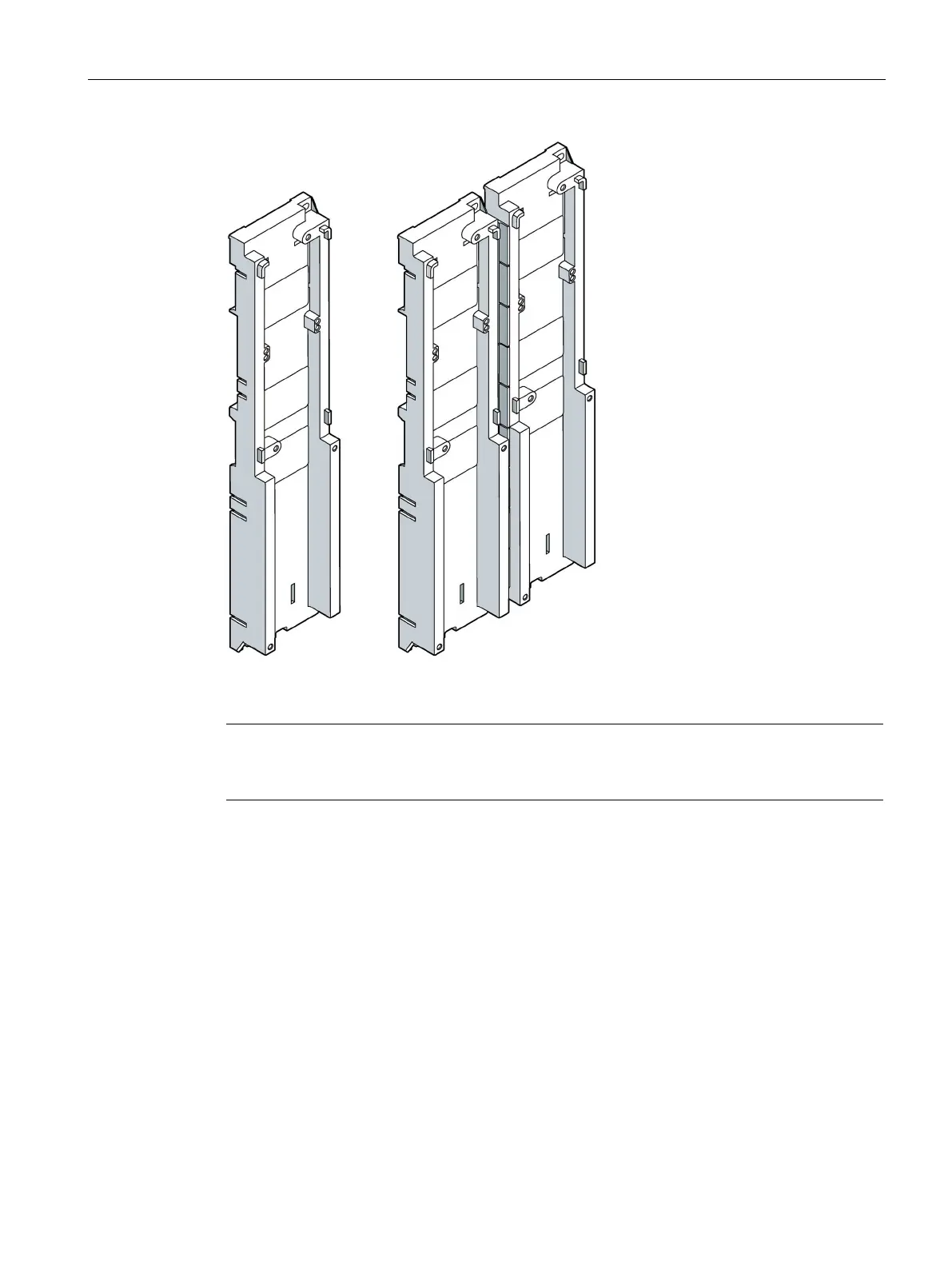

Figure 7-26 DIN rail adapter, individually and as an adapter pair (size S3)
Note
Two DIN rails (DIN rail spacing 125 mm) are required for installation wi
th a DIN rail adapter
(size S3).
