Mounting
7.3 Assembly and disassembly with different mounting systems
SIRIUS - SIRIUS 3RA load feeders
78 Manual, 09/2016, A5E03656507520A/RS-AB/003
Mounting the direct-on-line starter (with soft starter) on the DIN rail adapter: Size S2

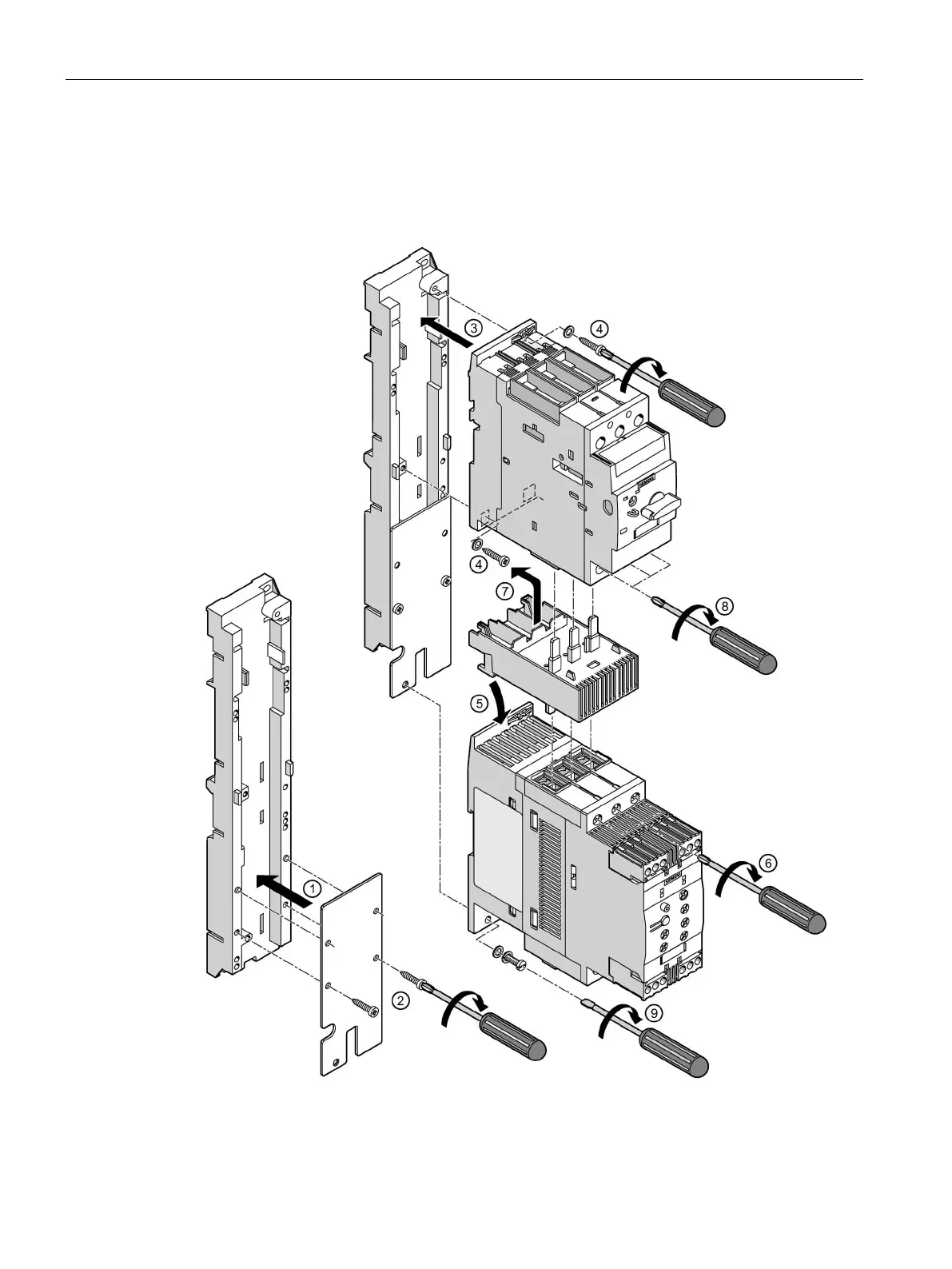

The figure below illustrates how the size S2 direct-on-line starter (with soft starter) with
screw-type connection system is mounted on a DIN rail adapter. The devices are snapped
onto the DIN rail adapter and screwed onto the adapter.
