Mounting
7.3 Assembly and disassembly with different mounting systems
SIRIUS - SIRIUS 3RA load feeders
82 Manual, 09/2016, A5E03656507520A/RS-AB/003
Disassembling the DIN rail adapter from the DIN rail

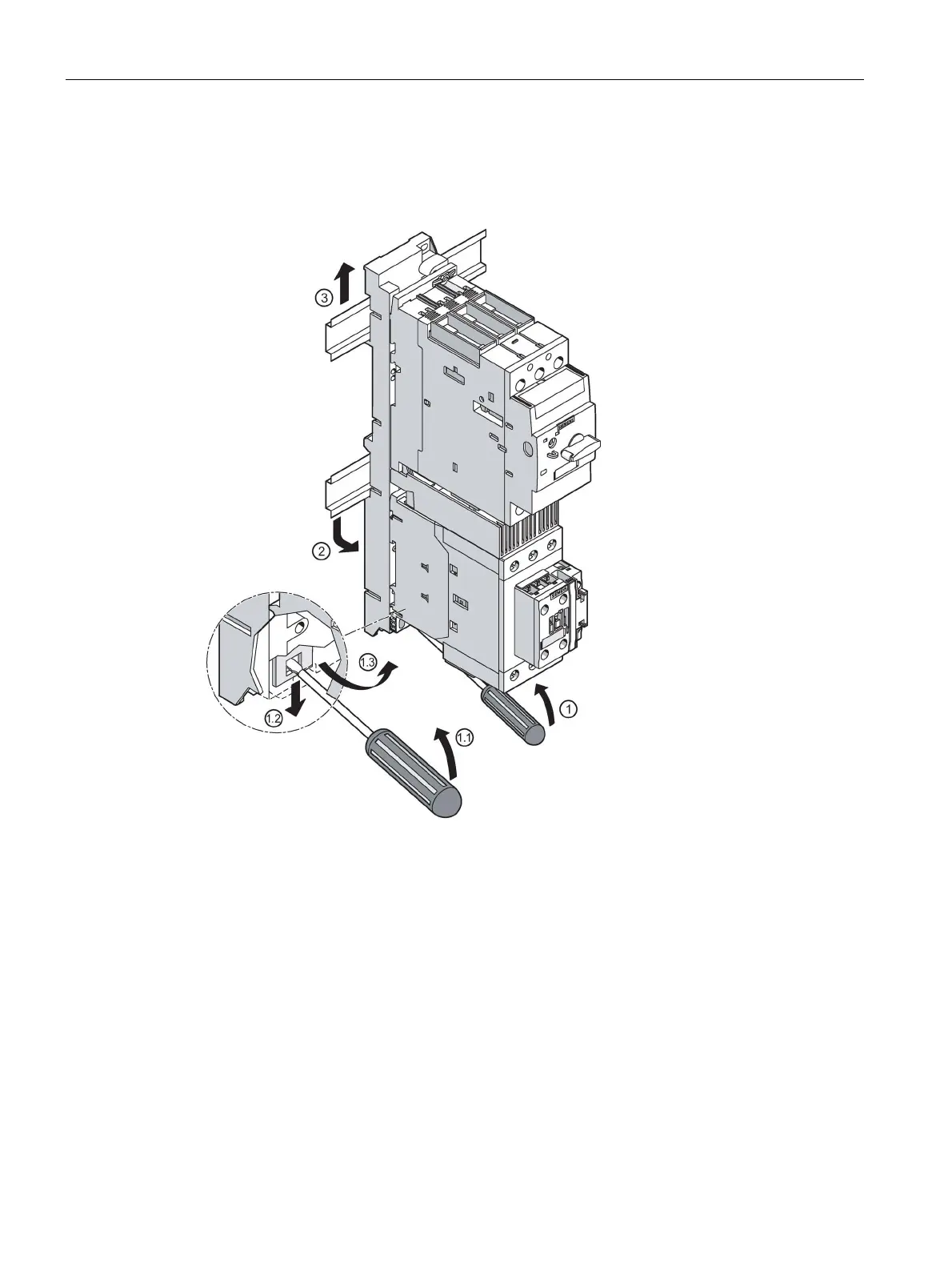

The procedure for disassembling the DIN rail adapter with mounted direct-on-line starter of
size S2 is shown in the figure below. You require a screwdriver for disassembling.
① Press the locking device down with a screwdriver. Then push the DIN rail adapter with
mounted feeder forwards against the pressure of the mounting spring.
② Pull the DIN rail adapter with mounted feeder forwards with a swivel action.
③ Press the DIN rail adapter with mounted feeder upwards and remove the DIN rail adapter with
mounted feeder from the DIN rail.
