Note
Considerations for connecting device
● Use shielded, twisted pair cable (wire gauge AWG 22 to AWG 14/ 0.34 mm
2
to 2.08 mm
2
).
● Separate cables and conduits may be required to conform to standard instrumentation
wiring practices, or electrical codes.
● If cable is routed through conduit, use only approved suitable-size hubs for waterproof
applications.
● Non-metallic enclosure does not provide a continuous ground path between conduit
connections: use grounding-type bushings and jumpers.
● More detailed information can be found on Hazardous area installations (Page 25).
6.2.1 Wiring instructions
Note
Initial connection
The display is not connected to the device when shipped. If this is not initial connection, remove
the display before wiring. See Remove existing display (Page 44).

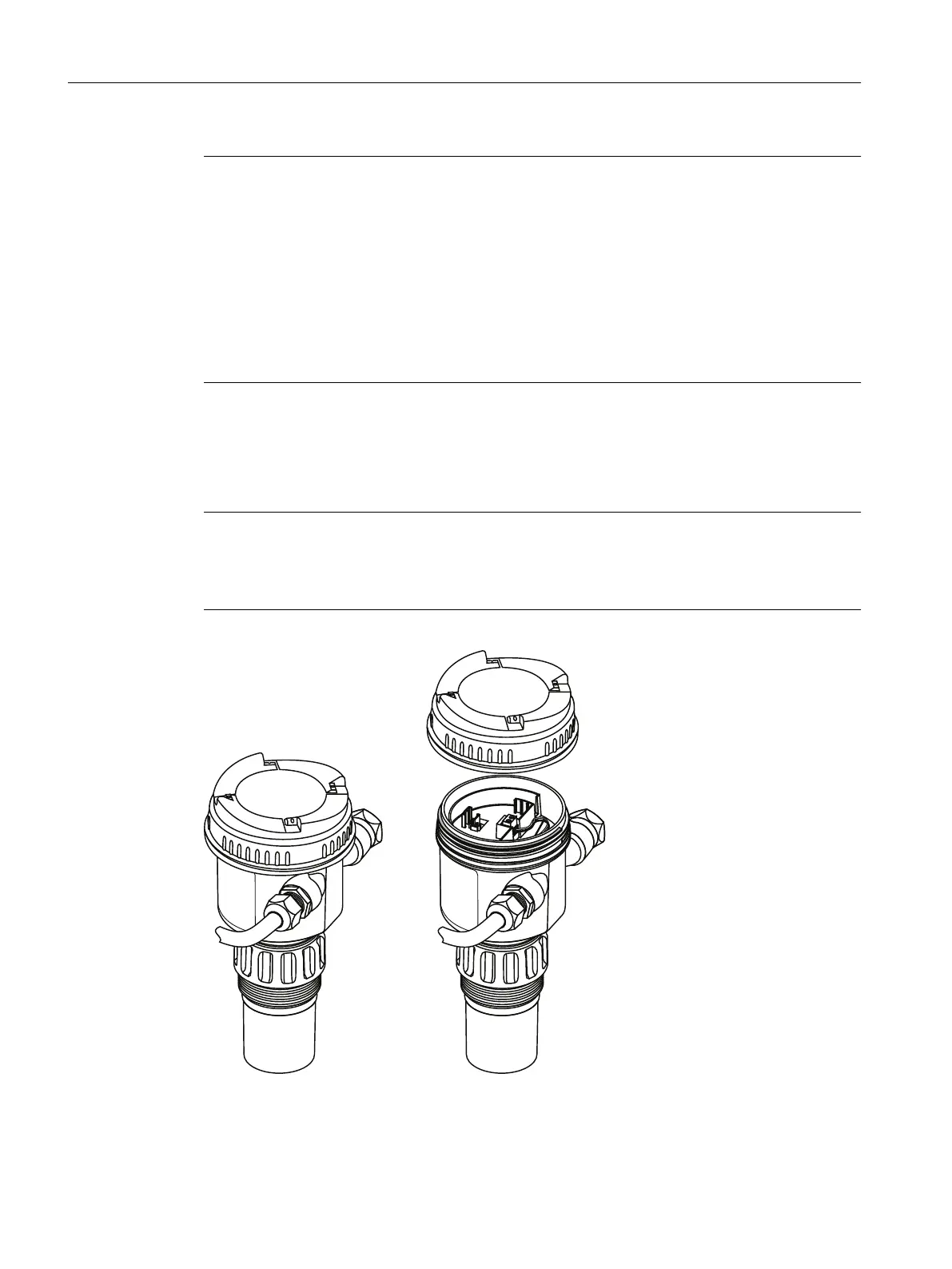

Connecting
6.2 Connecting SITRANS Probe LU240
SITRANS Probe LU240 with mA/HART
24 Compact Operating Instructions, 10/2018, A5E42673704-AB
