Service view
Sets operation of local device display to show menu numbers in parameter view.

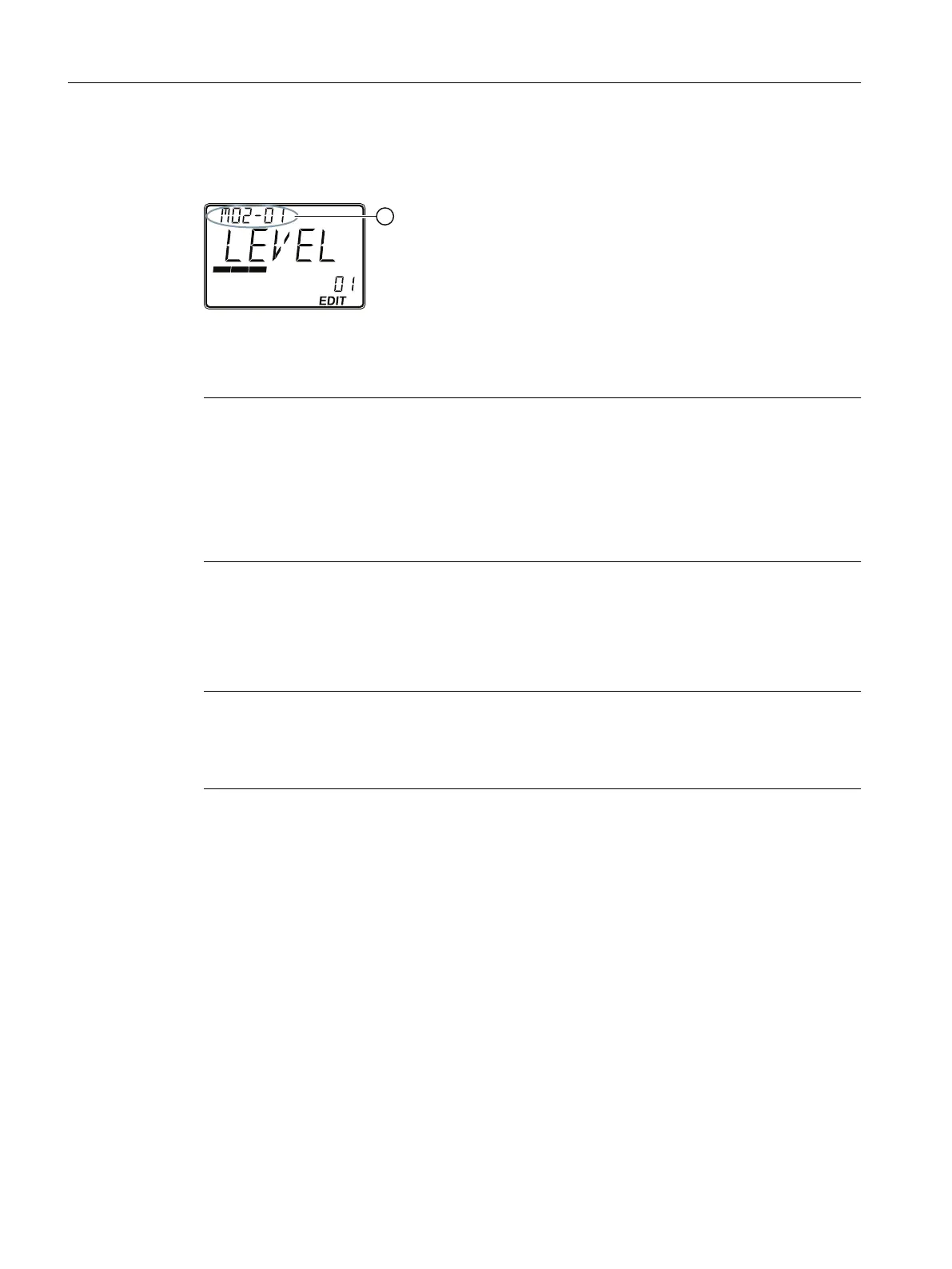

① Menu number
Parameter name (top left), parameter unit (if available, top right), and menu number (as shown
above, top left) alternate in two-second intervals.
Note
Show menu numbers on local display
To view menu numbers on the device, parameter "Service view" must be enabled. (Go to menu
"Setup > Local display".)
● The item number of the current selection appears in the info field.
● The menu number in which the current selection resides, appears on the title line (thus no
menu numbers appear for top-level menu items, such as "QUICK START", "SETUP", etc.).
7.2.5 Parameter menus
Note
Complete parameter list
For a complete list of parameters with instructions, and dimension drawings, see the full
operating instructions.
Parameters are identified by name and organized into function groups, then arranged in a
three-level menu structure.
On the local display:
● Navigate to a menu - menu name shows on title line, and "MENU" shows on main line. (Info
field shows number of current selection within menu structure.)
● Navigate to a wizard - wizard name shows on title line, and "WIZ" shows on main line. (Info
field shows number of current selection within menu structure.)
● Navigate to a parameter - parameter name shows on title line, and parameter number
shows in info field.
Commissioning
7.2 Local commissioning
SITRANS Probe LU240 with mA/HART
32 Compact Operating Instructions, 10/2018, A5E42673704-AB
