7.2.2 Local display

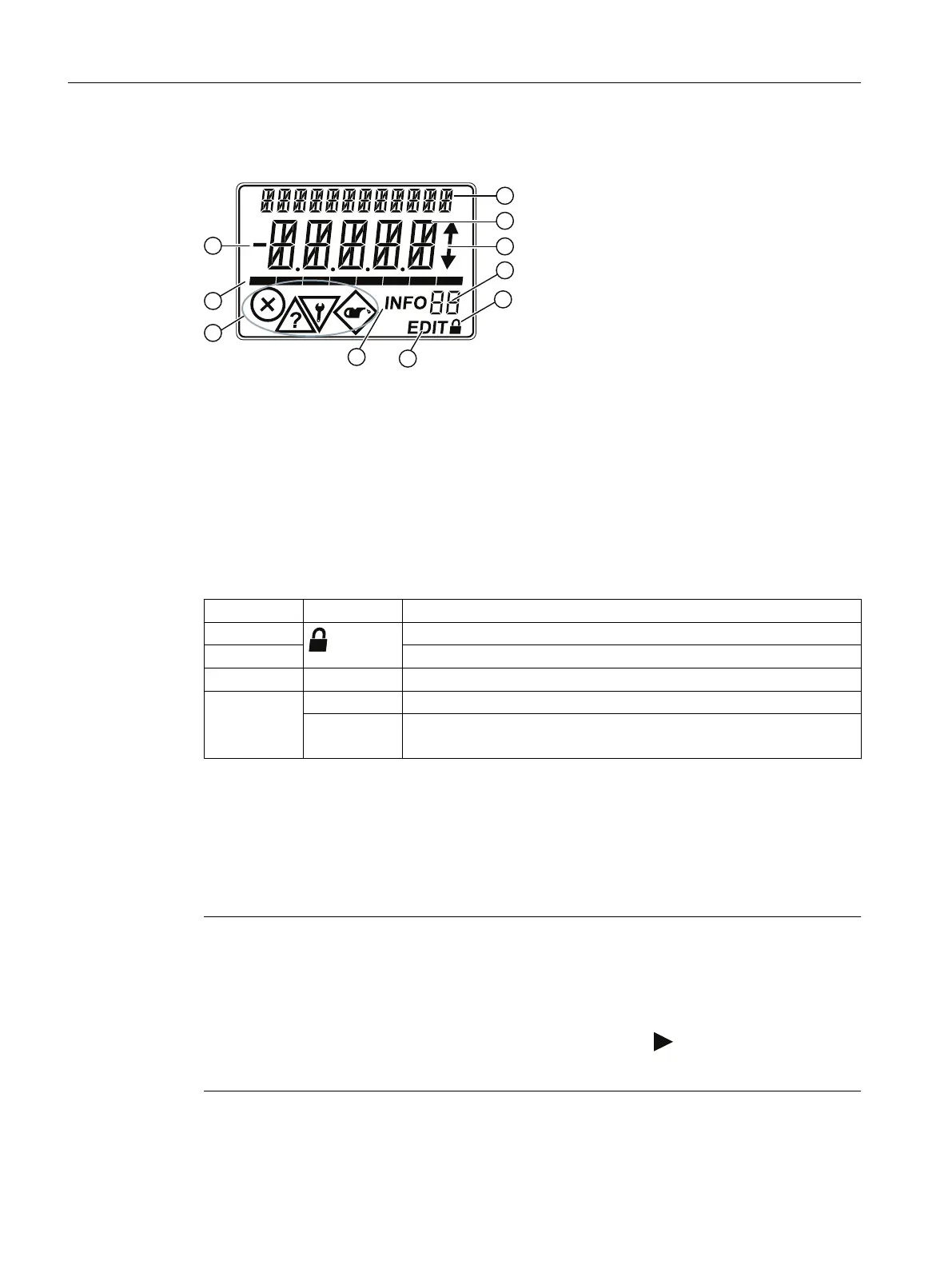

① Title line ⑥ EDIT indicator
② Main line ⑦ INFO indicator
③ UP/DOWN navigation arrows ⑧ NE107 diagnostic states
④ Info field ⑨ Bar graph
⑤ Lock symbol ⑩ Sign of the process value
7.2.3 Display symbols
INFO field Symbol Meaning
LP Device is write-protected via parameter "User PIN".
LL Device is write-protected via parameter "Button lock".
Co Loop test is running.
EDIT When symbol is flashing, you can edit the parameter.
INFO Diagnostic message. The ID next to the "INFO" symbol is used for
identification of the diagnostic message.
For a complete list of diagnostic messages that appear on the local display, refer to the
Diagnosing and troubleshooting chapter of the full operating instructions.
7.2.4 Display views
Note
Display views
● Edit view and measurement view refer to the display only. While the device is in edit view,
the output remains active and continues to respond to changes in the device.
● The display will return to measurement view after ten minutes of inactivity (from last button
press), when in edit view and from within a wizard. Pressing button will then take you
to the main navigation menu. (It will not return to the screen from which the timeout
occurred.)
Commissioning
7.2 Local commissioning
SITRANS Probe LU240 with mA/HART
30 Compact Operating Instructions, 10/2018, A5E42673704-AB
