Info page boiler sequence
(Only with RMK770)
To reach the Info page:
1. Return to the start page by pressing the ESC button.
2. Press the INFO button.
3. Turn the OK knob until the required page appears.

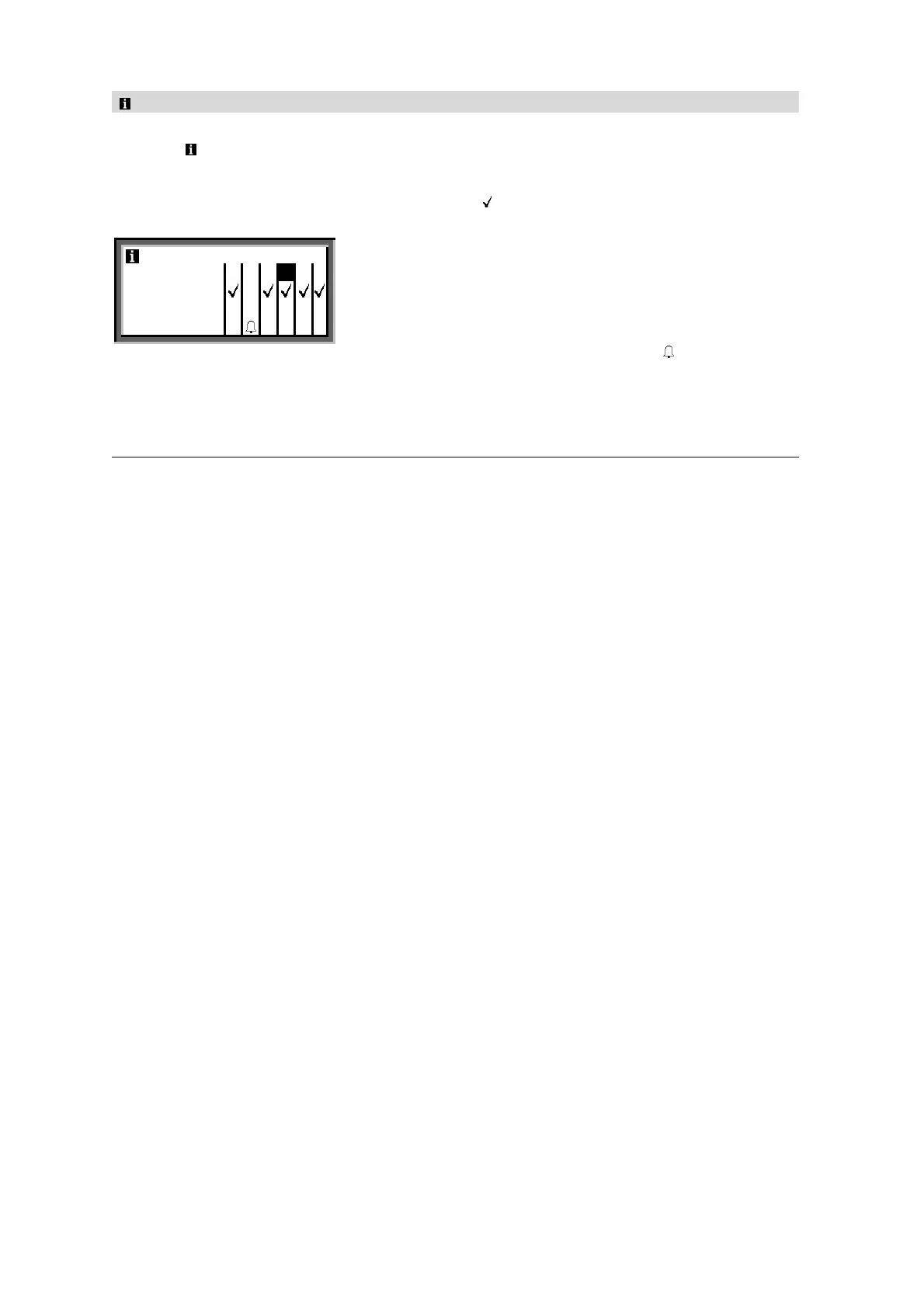

The state of the boiler sequence is displayed as follows:
Boiler sequence
Addr no: 1 2 3
4 5 6
Release:
–
Burner: 1 – 1 m 2 1
Faults:
Boiler address number
The boilers are numbered (max. 6). The lead boiler is
highlighted.
Release
= boiler released; it is switched on / off depending on
the demand for heat from plant
– = boiler locked
Burner
1 = burner or first burner stage on
2 = second burner stage on
m = burner modulates
– = burner off
Faults
Boiler faults are indicated by the
symbol. For general
information about faults, refer to page 23.
