4.8 Electrostatic discharge
TC35 and TC35i are identical protected against Electrical Discharge. For additional
information about ESD please consult the actual specification
4.9 Mechanical Dimensions
TC35 and TC35i provide the same type of connectors and mounting holes on the board. The
position of mounting holes is identical as with TC35, as well as the order of external
connectors. The outline mechanical dimensions are identical with both devices except the
high. TC35i is a single side mounted device that makes it much thinner compared to TC35.

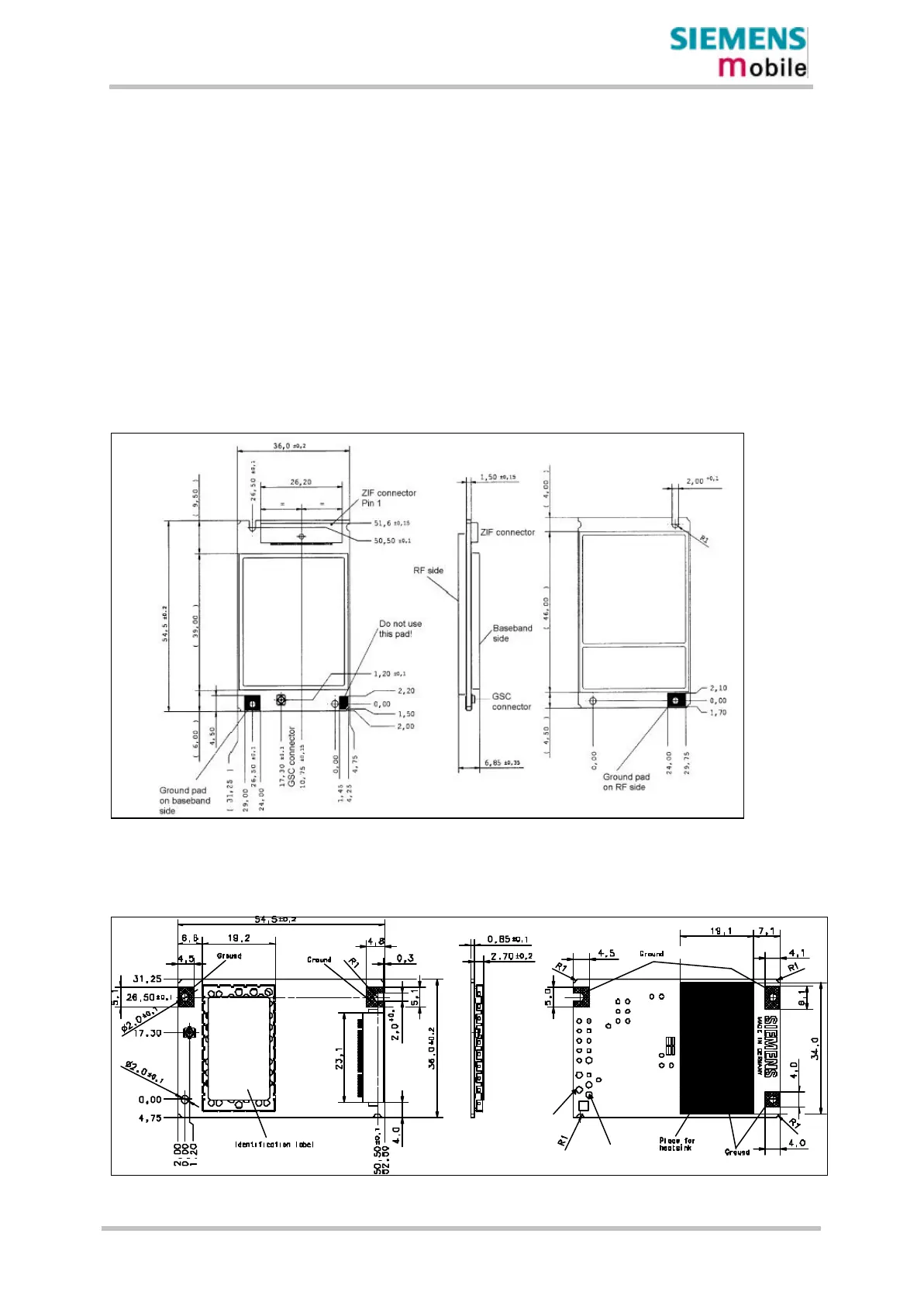

Figure 3: TC35 footprint
Figure 4: TC35i footprint
TP GND
TP BATT+
