15 - 9
Seat Slide Rail Replacement
1. Turn the ignition key switch to the OFF position,
remove the key, set the parking brake, and turn the
PTO off.
2. Disconnect the negative (-) battery cable (see
Section 7, ELECTRICAL SYSTEM SERVICE).
3. Remove the seat deck (refer to Seat Deck Removal
in this section).
4. Remove the seat (refer to Seat Replacement, in this
section).
5. Remove the seat pan (refer to Seat Pan
Replacement, in this section).
6. Remove the four nuts (C, Figure 11) and bell washer
(D) from the underside of the seat deck (A).
7. Remove slide rails (B) and replace in reverse order of
disassembly, with the exception of tightening the four
nuts (C) underneath the seat deck (A) until after the
seat pan (F, Figure 10) is in place.

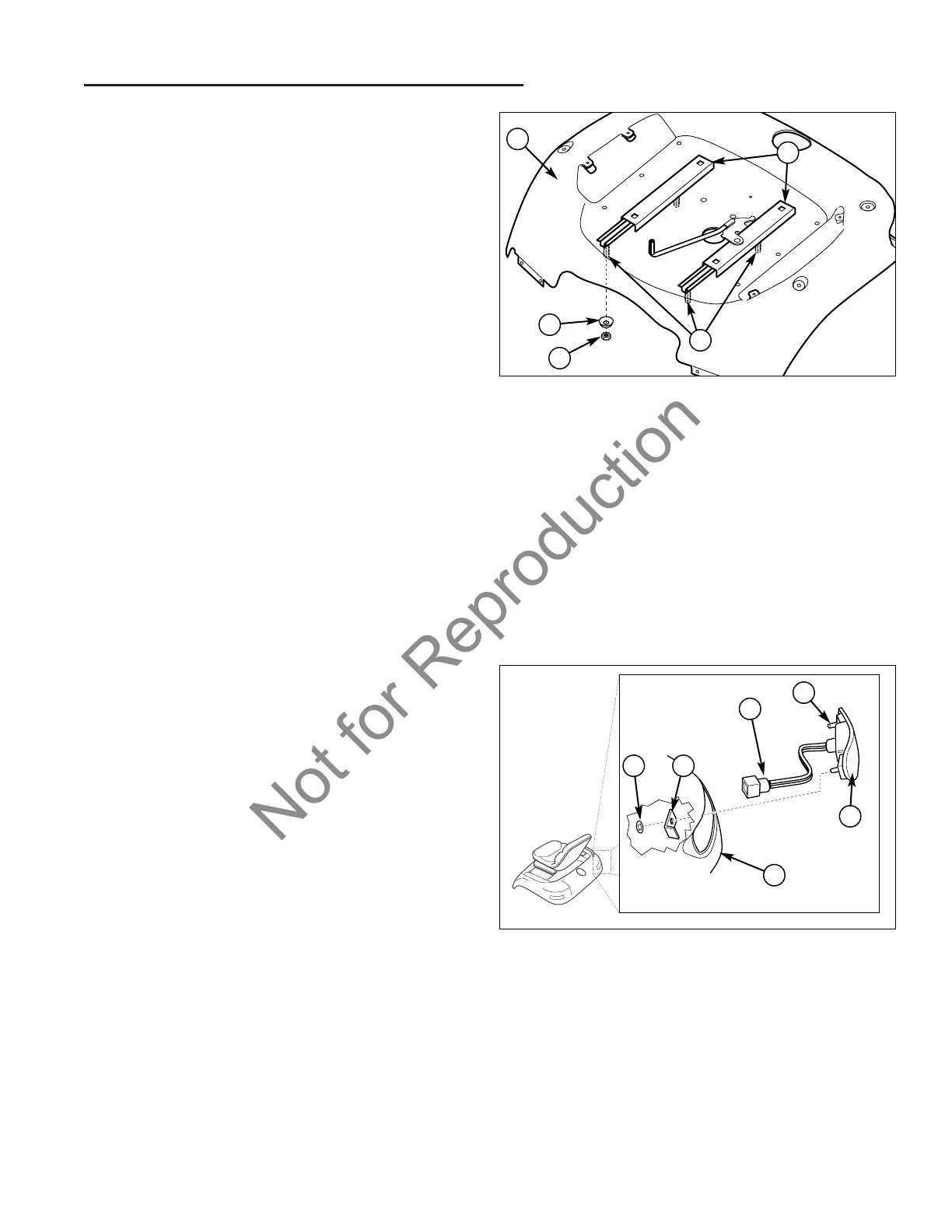

Figure 11. Remove Seat Slide Rails
A. Seat Deck D. Bell Washer
B. Slide Rails E. Screws
C. Nut
15 Seat Deck & Fuel Tank Service
Seat Slide and Tail Light Replacement
D
C
A
E
B
Tail Light Bezel Replacement
1. Verify ignition switch is in the OFF position and set
parking brake.
2. Disconnect the connector on the wire harness
(C, Figure 12) from the main wiring harness.
3. Remove the fasteners (A) from the posts (D) on the
tail light bezel (E).
4. Remove the brackets (B) that hold the bezel (E) to
the seat deck (F).
5. Remove the bezel (E) and wire harness (C) through
the back of the seat deck (F).
6. Replace in reverse order of disassembly.
B
Figure 12. Tail Light Bezel Replacement
A. Fastener D. Post
B. Bracket E. Bezel
C. Wire Harness F. Seat Deck
A
C
D
F
E
