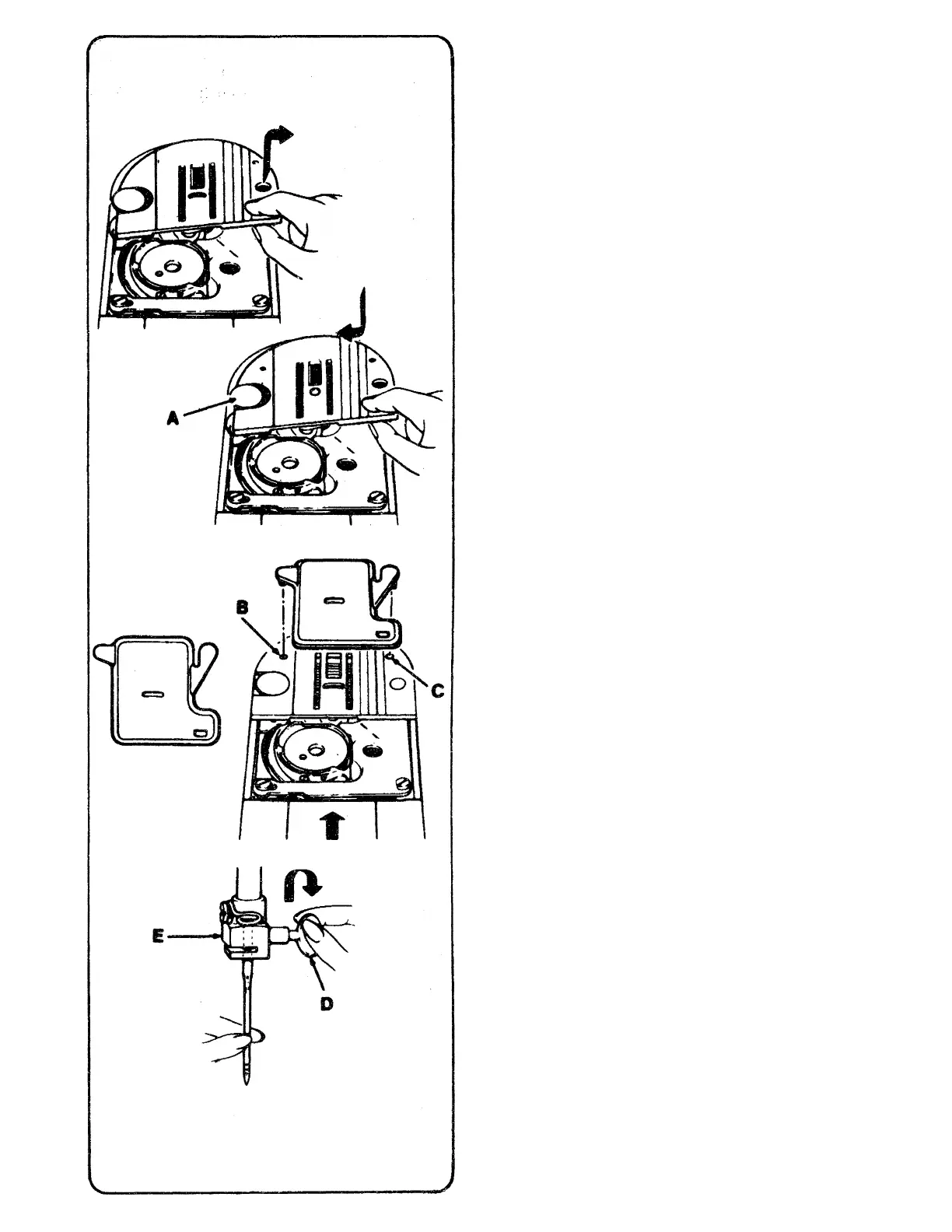

Changing Needle Plates
NOTE: Remove bobbin if it contains thread in
order to prevent thread being caught when
plate is replaced,
c Raise needle to highest position by turming
the hand wheel toward you,
• Raise presser foot.
• Open slide plate. Place thumb under right
side of needle plate, lift it up and withdraw
it to right.
c Replace needle plate under clamping pin A,
push it firmly to the left and press down
until it snaps into place
• Close slide plate.
Attaching Snap-In Feed
Cover
• Raise needle to highest position by turning
hand wheel toward you.
m Raise presser foot, open slide plate and
insert general purpose needle plate.
c Slide snap-in feed cover away from you over
needle plate until points B and C are
positioned directly over holes in needle
plate as illustrated. Snap in point B. Then
push point C in toward point B until it
snaps into place. Close slide plate.
• To remove, open slide plate, then simply lift
up front edge of feed cover and remove.
Close slide plate.
Changing the Needle
% Raise needle to its highest position by
turning the hand wheel toward you. Loosen
the needle-clamp screw D and remove the
needle.
• Insert new needle with the flat side of the
needle to the back, up into clamp E as far as
It will go.
g Tighten needle-damp screw.
J
11
