Changing the Light Bulb
Disconnect power-line plug from eletrical
out-let before removing old bulb.

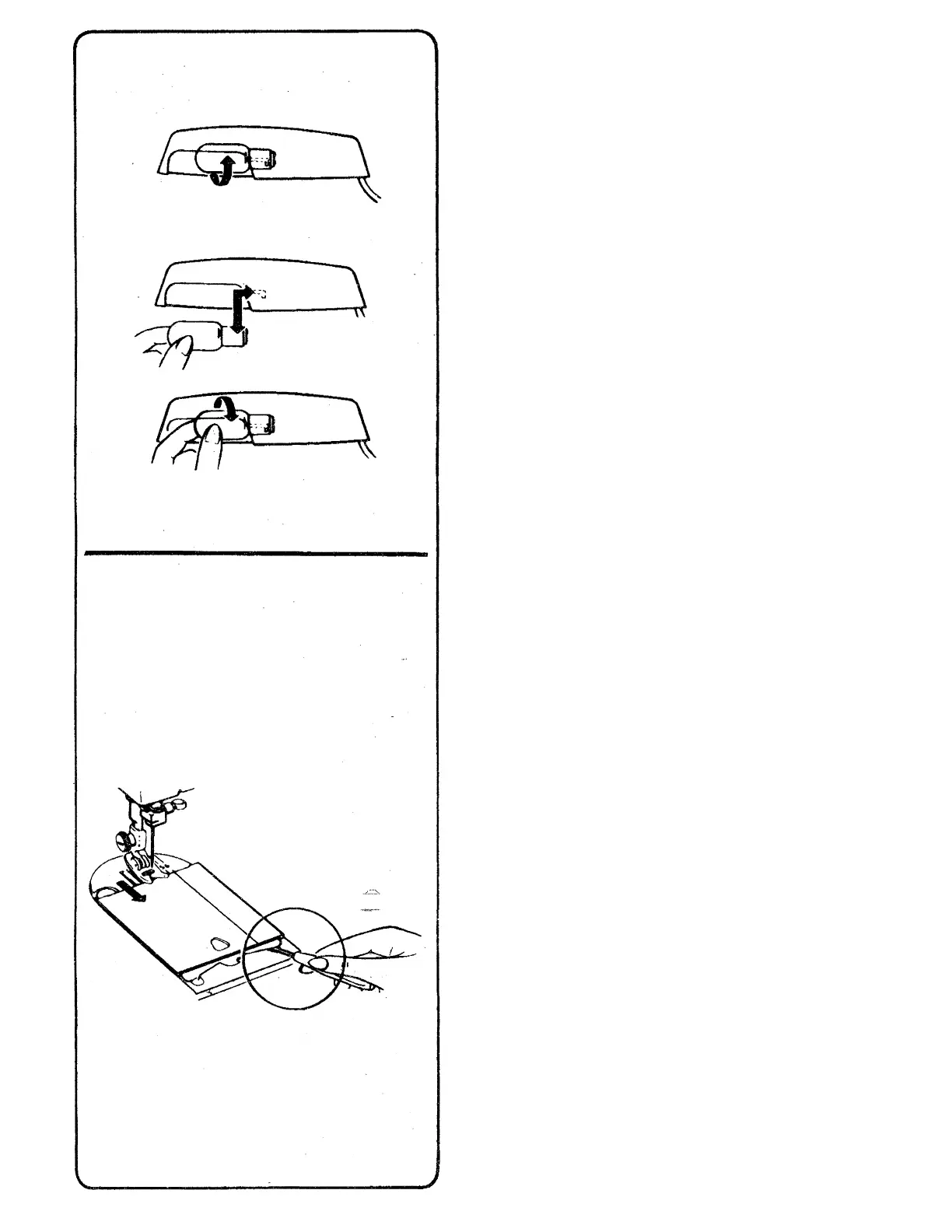

Removing Bulb. Raise light shield. Press bulb
into socket and at the same time turn bulb over
in direction shown to unlock bulb pin. (Do not
attempt to unscrew the bulb.)
Replacing Bulb. Press new bulb into socket,
with bulb pin entering slot of socket, and turn
it over in direction shown to lock bulb in
position. Lower the light shield.
Note:This machine is designed to use a 15 watt
maximum light bulb.
Raplacing the Slide Plate
You will not have any occasion to remove the
slide plate. However, if it should accidentally
become disengaged from the machine, it is
easily replaced.
• Raise the presser foot and make sure needle
is in its highest position.
• Place slide plate in slide way with the front
edge close to, but not covering, the retaining
spring (as shown).
• With a small screwdriver, lift each end of the
spring into each of the side grooves on the
underside of the plate.
• Draw the plate gently toward you and fully
engage the spring.
• Close slide plate.
65
