Needle and Presser Foot Area
ABOUT YOUR MACHINE

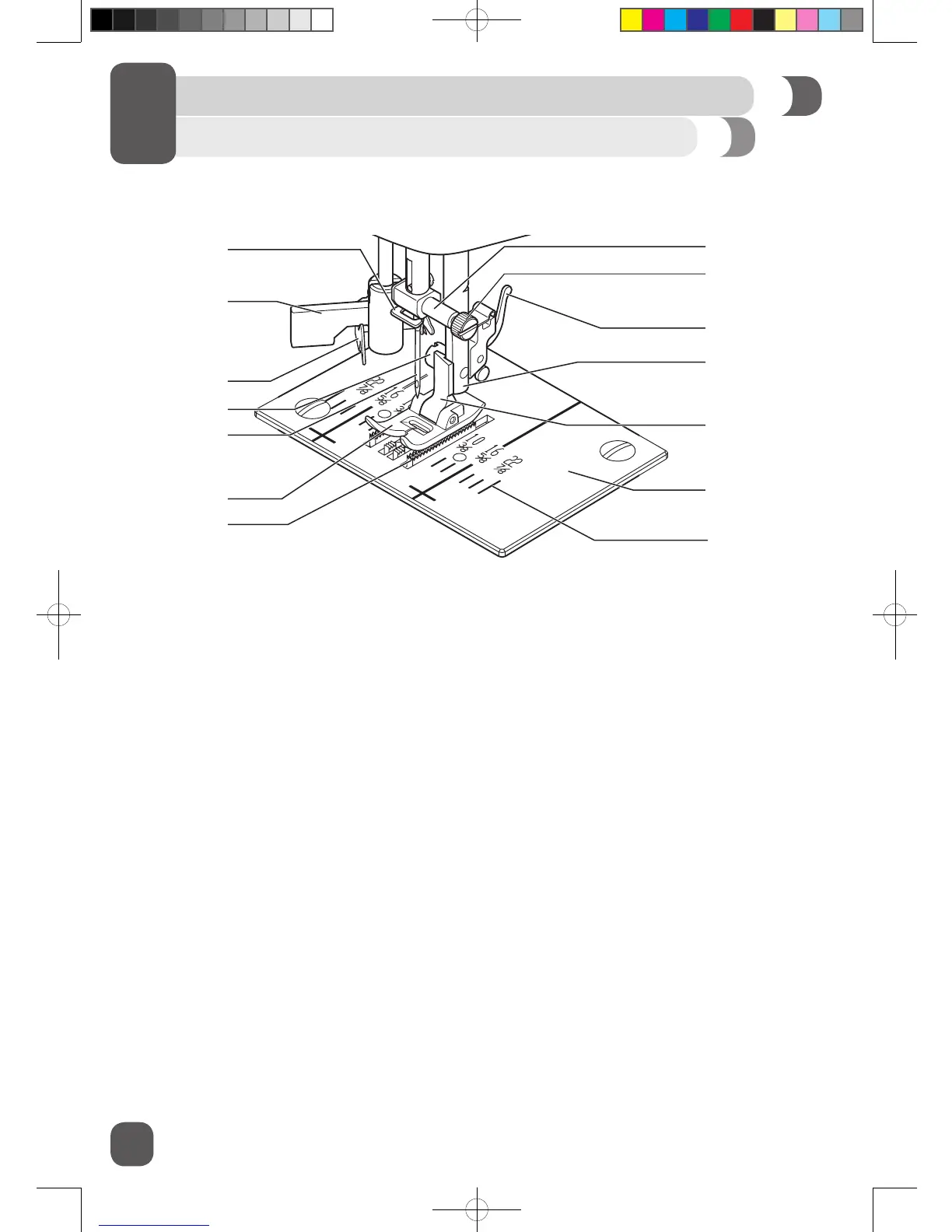

1. THREAD GUIDE controls movement of upper thread.
2. NEEDLE THREADER LEVER is used to engage the automatic needle threader mechanism.
3. NEEDLE THREADER GUIDE holds thread securely before placing it in hook pin.
4. PRESSER FOOT SCREW secures the presser foot holder (shank) onto the presser bar.
5. NEEDLE holds thread during stitch formation.
6. PRESSER FOOT holds fabric against the feed teeth while sewing. Various optional presser feet
are available, depending on fabric sewn and sewing techniques. (See Page 9)
7. FEED TEETH (OR FEED DOGS), which look like rows of teeth under the presser foot, control the
movement of the fabric under the presser foot.
8. NEEDLE CLAMP holds the machine’s needle in position.
9. NEEDLE CLAMP SCREW secures the needle when placed in needle clamp.
10. PRESSER FOOT RELEASE LEVER is pressed to remove the presser foot. (See Page 26)
11. PRESSER BAR accommodates the presser foot holder.
12. PRESSER FOOT HOLDER (OR SHANK) holds presser foot.
13. NEEDLE PLATE covers the bobbin area and provides at area around presser foot for sewing.
14. STITCHING GUIDELINES are used as a visual reference for guiding fabric straight while sewing.
The rst line is 3/8” (10mm) from center needle position. The most popular seam allowance
measurements are 1/2” (13mm) and 5/8” (16mm). The 1/2” seam allowance is the 2nd line, and
the 5/8” seam allowance is the 3rd line from center needle position.
