- 29 -
No.JXC※-OMX0011-A

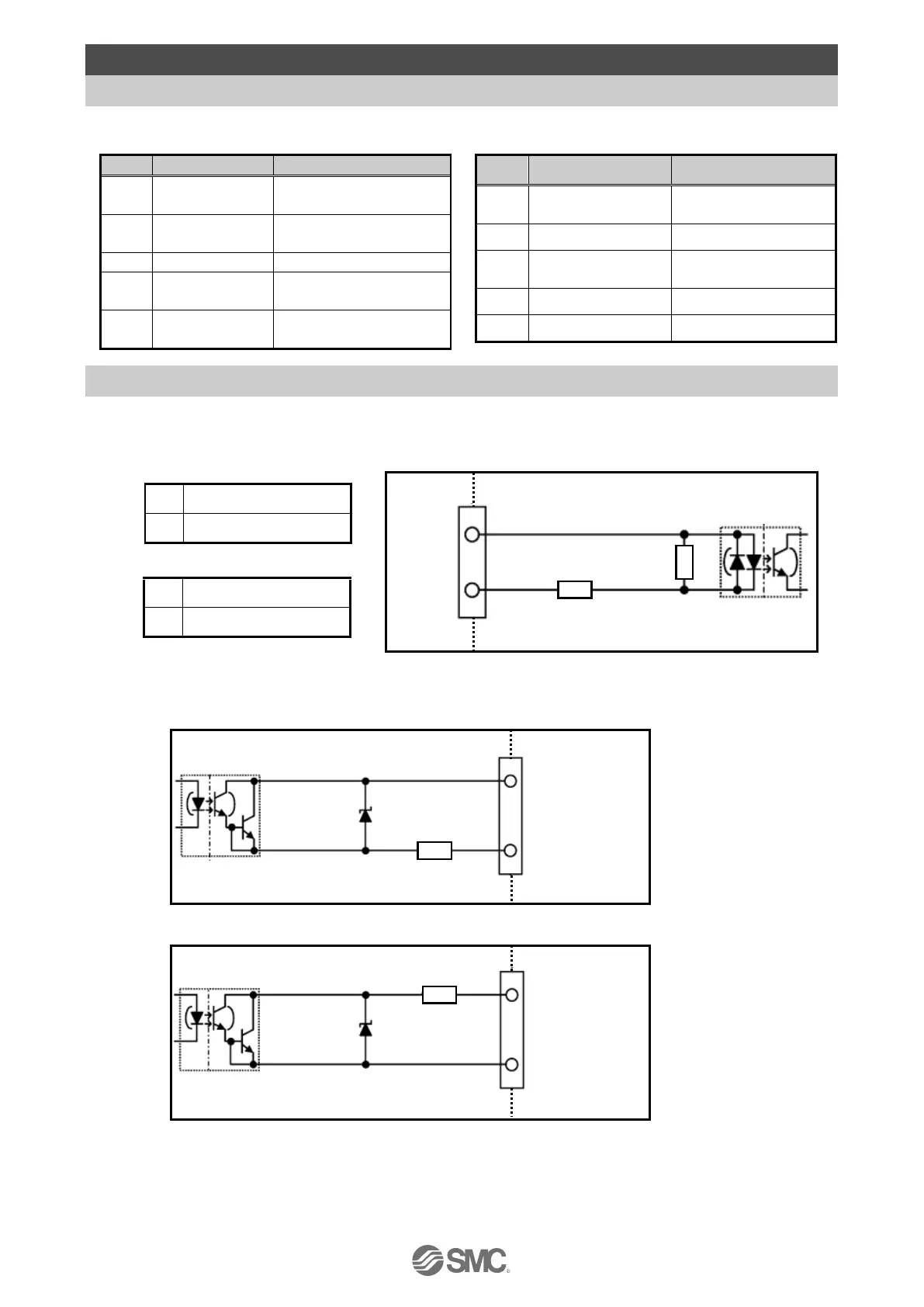

6. Parallel l/O Connector
6.1 Parallel I/O specifications
● Input specifications ●Output specifications
6.2 Parallel I/O type (NPN/ PNP type)
There are two types of parallel I/O for this controller: NPN type and PNP type.
(1) Parallel I/O input circuit (same for both NPN and PNP type)
● NPN type
（
JXC51##-#
）
● PNP type
（
JXC61##-#
）
(2) Parallel I/O output circuit
● NPN type (JXC51##-#)
● PNP type (JXC61##-#)
No.
Item
Specification
1
Output circuit
Internal circuit and
photo coupler Isolation
2
Number of outputs
13 outputs
3
Max. voltage
between terminal
30VDC
4
Max. output current
10mA supply/sink
5
Saturation voltage
2.0V (Max.)
No.
Item
Specification
1
Input circuit
Internal circuit and photo
coupler isolation
2
Number of
inputs
11 inputs
3
Voltage
24 VDC +/- 10%
4
Input current at
ON
3.5mA +/- 20%
(at 24 VDC)
5
Input current /
voltage at OFF
Current 1.5 mA or less
Voltage 11V or less
(a)
(b)
Inside of the controller
(a)
「COM+」〈A1〉
(b)
IN0〈A3〉～SVON〈A13〉
(a)
「COM-」〈A2〉
(b)
IN0〈A3〉～SVON〈A13〉
Outside
1kΩ
6.8kΩ
Inside of the controller Outside
「COM+」
10Ω 〈A1〉
OUT0〈B1〉
～ALARM〈B13〉
Inside of the controller Outside
OUT0〈B1〉
～ALARM〈B13〉
10Ω
「COM-」
〈A2〉
