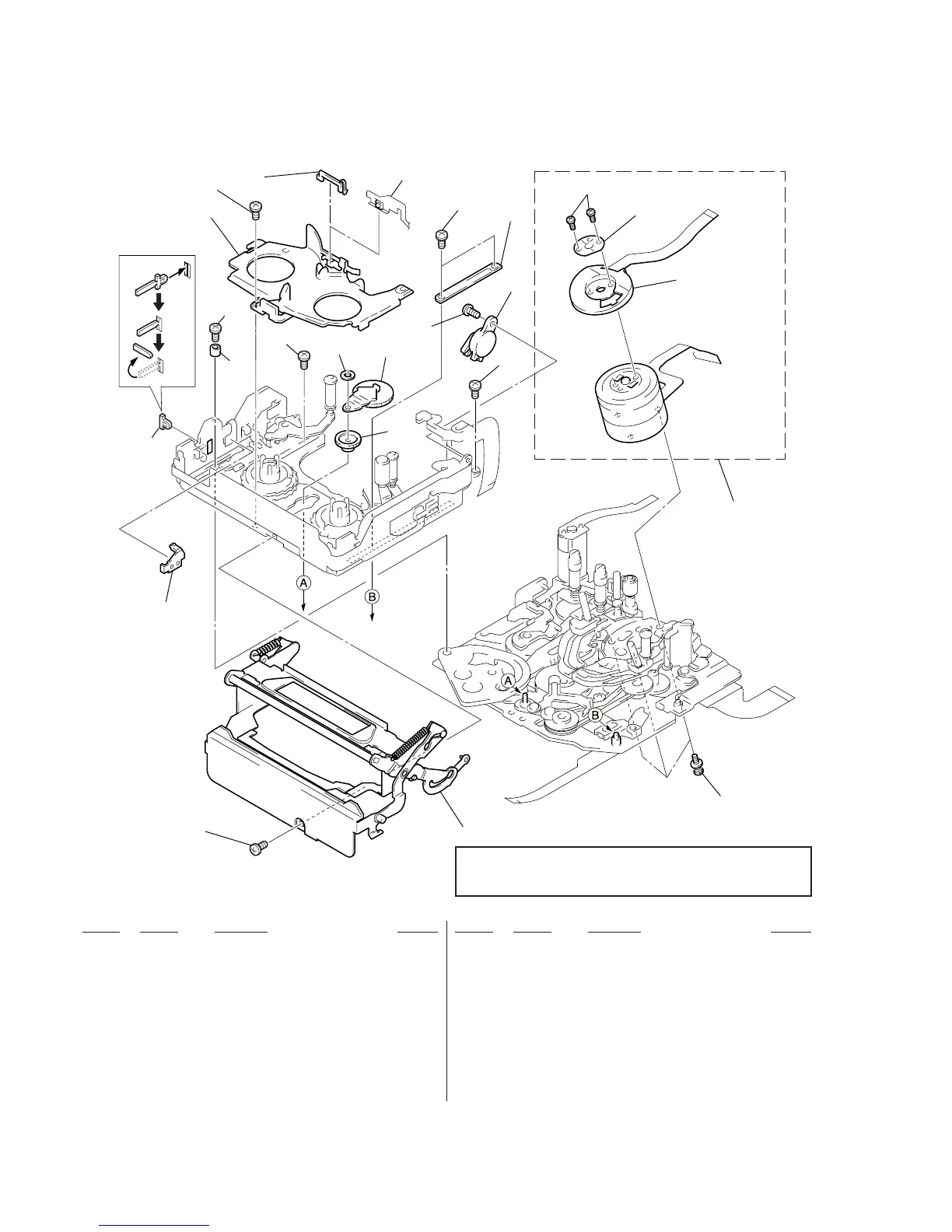

6-1-6. CASSETTE COMPARTMENT AND DRUM ASSEMBLY
708
707
706
701
703
720
Note
701
701
704
709
710
719
702
M901
701
712
705
713
711
718
716
714
not supplied
FP-242
(See page 6-7)
Attaching precedure
1
2
3
Note: Once remove No. 720 CC fastener, don't use it again.
Be sure to replace it with new one.
(Attaching procedure is as shown above figure.)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
701 3-728-103-11 SCREW (M1.4X1.6)
702 X-3947-480-1 CASSETTE COMPARTMENT ASSY
703 3-748-703-01 COLLAR
* 704 3-976-449-02 COVER, CC SWITCH
705 3-976-446-01 DAMPER
706 X-3748-613-3 BASE ASSY, LED
707 3-704-197-21 SCREW (M1.4X2.5), LOCKING
708 3-748-683-01 HOLDER, LED
709 3-315-414-31 WASHER
710 X-3748-609-2 GOOSENECK ASSY
711 3-748-736-01 GEAR, RELAY
712 3-748-702-02 SLIDER, CAM
713 3-962-914-01 SCREW (M1.4X2)
714 X-3944-897-2 MOTOR FPC ASSY
716 A-7026-009-B SCREW ASSY, DRUM FITTING
718 3-703-816-42 SCREW (M1.4X2.5), SPECIAL HEAD
719 3-962-346-01 SCREW (M1.6)
* 720 3-979-009-03 FASTENER, CC
M901 A-7048-887-A DRUM ASSY (DEH-11B-R)
