Sony DCR-PC1 - RGB Driver, Taming Generator) Printed Wiring Board

DCR-PC1/PC1E

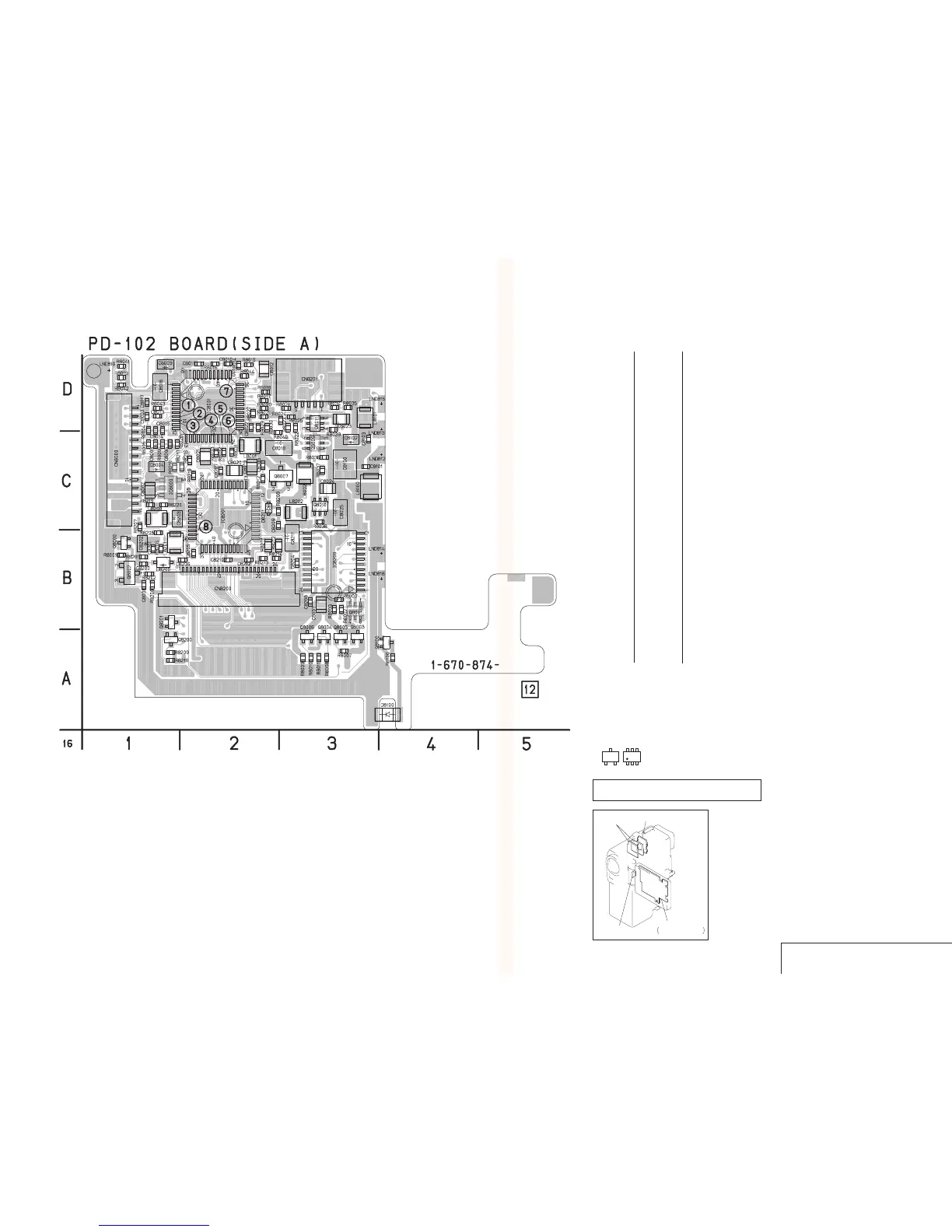

PD-102 (RGB DRIVER, TIMING GENERATOR) PRINTED WIRING BOARD
— Ref. No. PD-102 Board; 10,000 Series —
CD-203
(CCD IMAGER)
VF-125
(BACK-LIGHT DRIVE)
PR-31
(PANEL REVERSE)
PD-102
RGB DRIVER,
TIMING GENERATOR
For printed wiring boards
• This board is six-layer print board. However, the pat-
terns of layers two to five have not been included in
the diagram.
• Chip parts
Transistor
There are few cases that the part printed on this
diagram isn’t mounted in this model.
PD-102 BOARD
C8001 B-1
C8002 C-1
C8003 D-1
C8004 C-1
C8005 C-1
C8006 C-1
C8007 B-3
C8008 C-2
C8009 D-1
C8010 D-2
C8011 D-2
C8012 D-2
C8013 D-1
C8014 D-1
C8015 D-1
C8016 D-1
C8017 D-1
C8018 C-2
C8019 C-2
C8020 C-2
C8021 C-2
C8022 D-2
C8023 D-3
C8024 C-3
C8025 C-3
C8027 C-2
C8100 C-3
C8101 C-3
C8102 C-3
C8103 C-3
C8200 B-1
C8201 B-1
C8202 B-1
C8203 C-1
C8204 B-3
C8205 B-2
C8206 B-2
C8208 B-3
C8209 C-2
C8210 B-2
C8211 B-3
C8212 B-2
CN8000 C-1
CN8200 B-2
CN8201 D-3
D8100 A-4
D8200 B-1
D8201 C-2
IC8000 C-1
IC8001 D-2
IC8200 B-3
IC8201 C-2
L8001 C-2
L8002 C-3
L8100 C-3
L8101 D-3
L8200 C-1
L8201 B-1
L8202 C-3
Q8000 B-1
Q8001 B-3
Q8003 A-3
Q8004 A-3
Q8005 A-3
Q8006 A-3
Q8007 C-2
Q8009 C-3
Q8010 C-3
Q8011 D-3
Q8100 A-4
Q8200 A-1
Q8200 B-1
Q8201 B-1
R8000 B-3
R8001 B-1
R8002 B-3
R8003 B-3
R8004 D-1
R8005 C-1
R8006 C-1
R8007 A-3
R8008 A-3
R8009 A-3
R8010 A-3
R8011 A-3
R8012 C-2
R8014 D-2
R8015 D-2
R8016 D-2
R8017 D-2
R8018 D-2
R8019 D-1
R8020 D-2
R8021 D-3
R8022 D-3
R8023 D-3
R8024 D-2
R8025 D-3
R8026 D-2
R8027 D-2
R8028 C-1
R8029 D-2
R8030 D-2
R8031 C-2
R8032 C-2
R8033 C-2
R8034 D-3
R8035 D-3
R8036 C-3
R8037 C-3
R8038 C-3
R8039 D-3
R8040 C-2
R8041 D-1
R8042 D-1
R8043 D-1
R8044 D-2
R8100 A-4
R8120 A-1
R8200 B-1
R8201 B-1
R8202 B-1
R8205 B-1
R8206 B-1
R8207 C-1
R8208 C-2
R8209 A-1
R8211 B-2
R8212 B-2
R8213 B-2
R8214 B-2
R8215 C-2
R8216 C-2
R8217 C-1
R8218 C-1
R8219 C-1
R8220 C-1
4-63 4-64
RGB DRIVER, TIMING GENERATOR
PD-102
C
BE
5
64
2
13
