1-5. LCD SYSTEM ADJUSTMENTS
Before perform the LCD system adjustments, check that the speci-
fied values of “VIDEO SYSTEM ADJUSTMENTS” are satisfied.
Note 1: Taken an extreme care not to destroy the liquid crystal
display module by static electricity when replacing it.
Note 2: Set the LCD BRIGHTENSS (SET UP setting) to the
NORMAL.

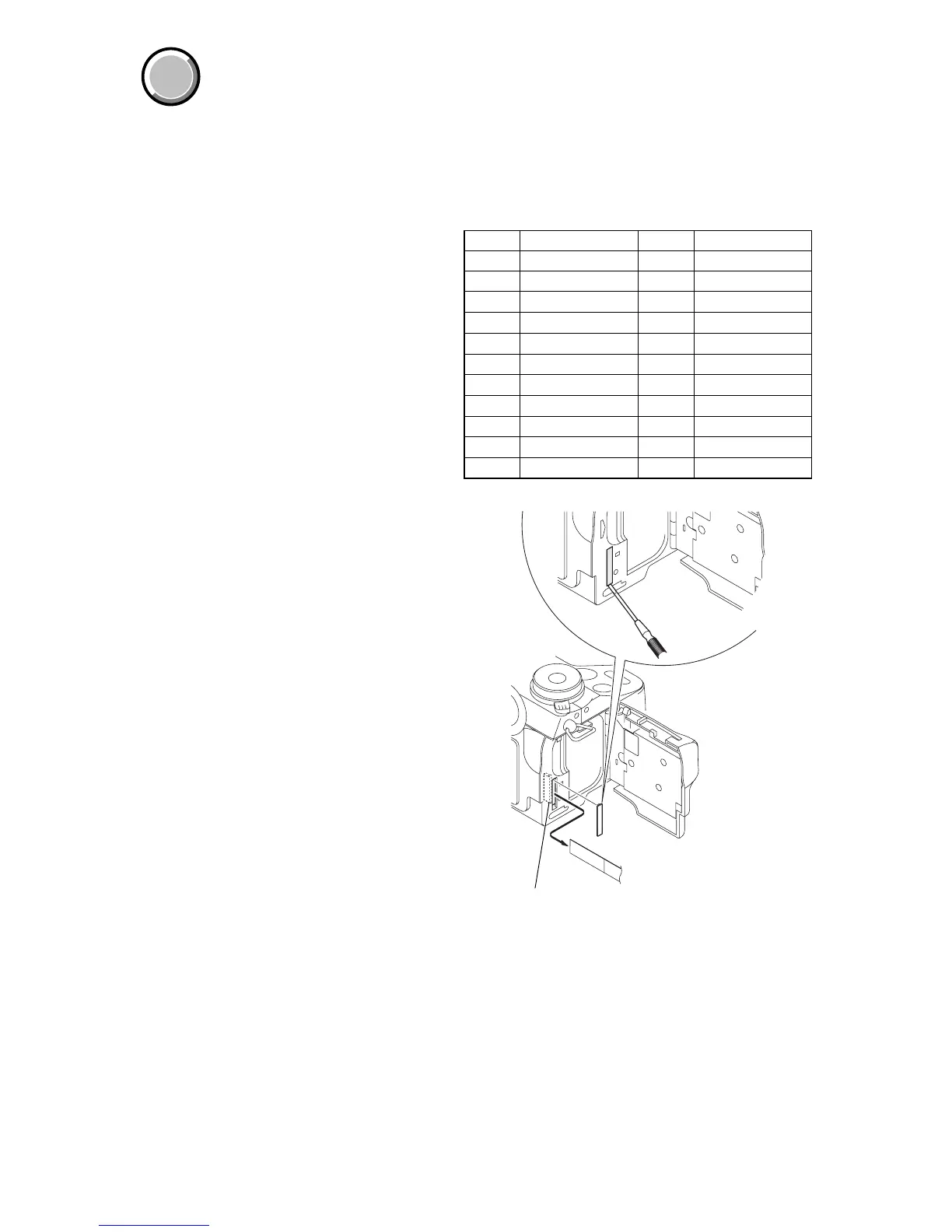

[Adjusting connector]
Most of the measuring points for adjusting the LCD system are
concentrated in CN305 of the FR-194 board.
Connect the Measuring Instruments via the CPC-12 jig (J-6082-
436-A).
The following table shows the Pin No. and signal name of CN305.
Pin No. Signal Name Pin No. Signal Name
1 BL_L1 12 LANC_OUT
2 N.C. 13 MAKER_RECOG
3 N. C. 14 N.C.
4 REG_GND 15 N.C.
5 N. C. 16 N.C.
6 BL_L2 17 N.C.
7 PANEL_HSY 18 N.C.
8 PANEL_COM 19 EVF_BL
9 PANEL_VG 20 EVF_BL_4.75V
10 CPC_UNREG 21 EVF_VG
11 LANC_IN 22 EVF_VCO
Fig. 6-1-18
CPC cover
CPC-12 jig
(J-6082-436-A)
FR-194 board
CN305
22
1

Sony DSC-F717 Specifications

General

Sensor Type	CCD
Effective Pixels	5.0 Megapixels
Optical Zoom	5x
Focal Length	9.7 - 48.5 mm
Aperture Range	f/2.0-f/2.4
ISO Sensitivity	Auto, 100, 200, 400, 800
Shutter Speed	30 - 1/2000 sec
LCD Screen Size	1.8 inches
Viewfinder	Electronic
Battery Type	NP-FM50 InfoLithium rechargeable battery
Digital Zoom	2x
Sensor Size	2/3 inch
Lens Type	Carl Zeiss Vario-Sonnar
LCD Screen Resolution	123, 000 pixels
Storage Media	Memory Stick
Image Processor	Real Imaging Processor
Focus Adjustment	Automatic, Manual
