DSC-F717
6-7
4. Preparing the Flash Adjustment Box
A dark room is required to provide an accurate flash adjustment.
If it is not available, prepare the flash adjustment box as given
below;

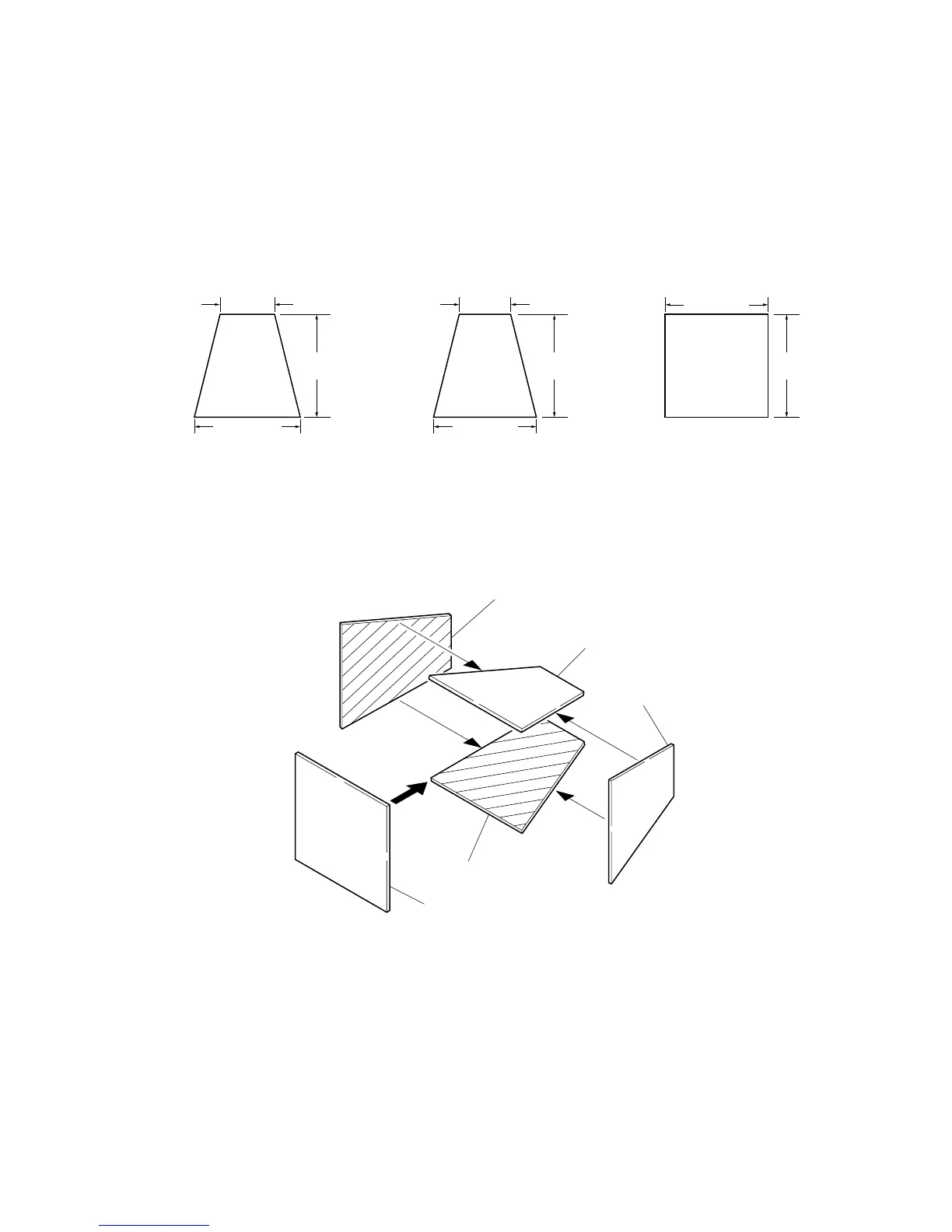

1) Provide woody board A, B and C of 15 mm thickness.
Dimensions without brackets are for a box of 1 m in depth.
Dimensions in brackets are for a box of 50 cm in depth.
woody board A (2)
530 mm
(400 mm)
woody board B (2)
500 mm
(370 mm)
woody board C (1)
1000 mm
(700 mm)
1026 mm
(513 mm)
1026 mm
(513 mm)
1000 mm
(700 mm)
1000 mm
(700 mm)
1030 mm
(730 mm)
2) Apply black mat paint to one side of woody board A and B.
3) Attach background paper (J-2501-130-A) to woody board C.
4) Assemble so that the black sides and the background paper
side of woody board A, B and C are internal. (Fig 6-1-10)
Fig. 6-1-9
woody board A
woody board B
woody board B
woody board C
woody board A
Fig. 6-1-10
To Next Page
