Connecting an optional external
microphone
You can also use an external 48-V microphone by connecting it to the MIC IN +48V
connector. (The optional CAC-12 Microphone Holder is required.)

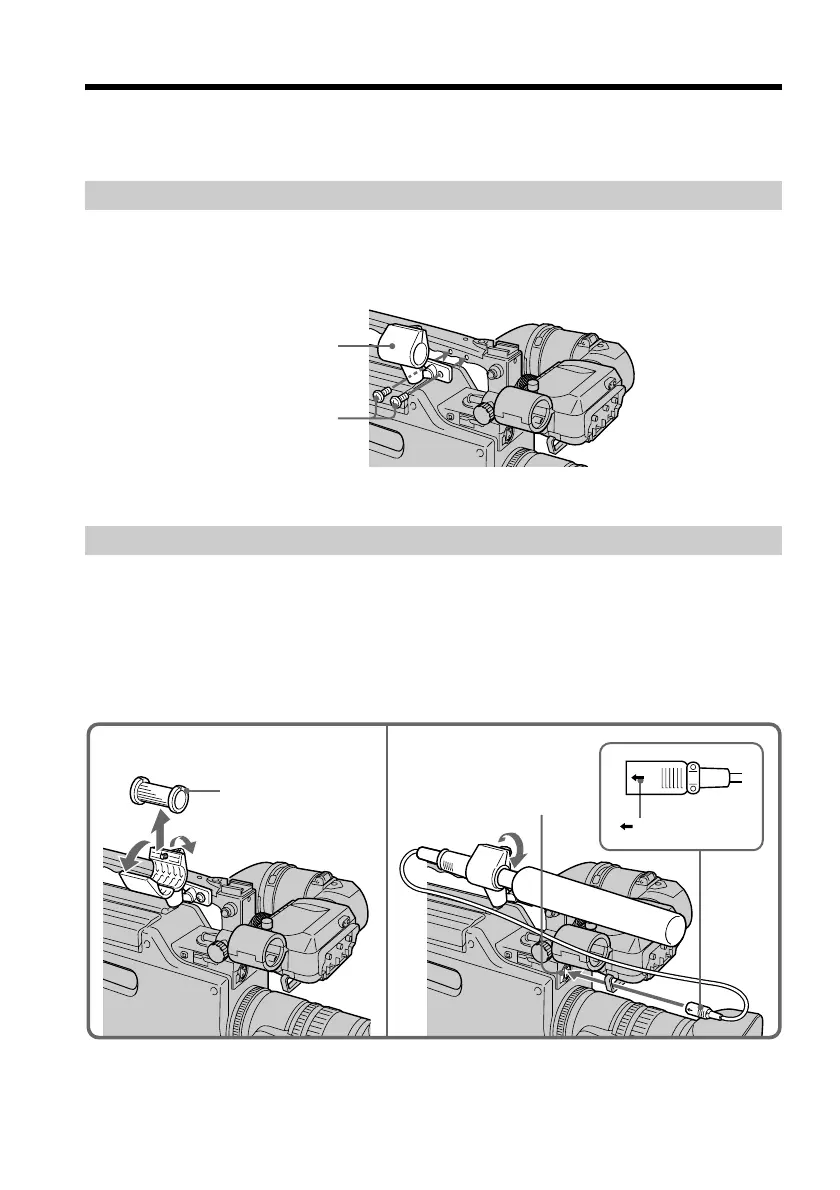

Installing the optional CAC-12 Microphone Holder
Remove the two retaining screws (M3 × 12) for the optional microphone holder, then
use these screws to attach the CAC-12 Microphone Holder.
Fitting an optional microphone
Use the following procedure to attach an optional ECM-670 Microphone.
(1) Loosen the screw of the CAC-12 Microphone Holder, then open the holder and
replace the microphone adaptor with the one supplied with the ECM-670
Microphone.
(2) Insert the microphone in the microphone holder, close the holder, and tighten
the screw. Connect the microphone cable to the MIC IN +48 V connector.
21
Screws removed from the
camcorder
CAC-12
Microphone adaptor
MIC IN +48 V
connector
Mark
