DVP-CX777ES

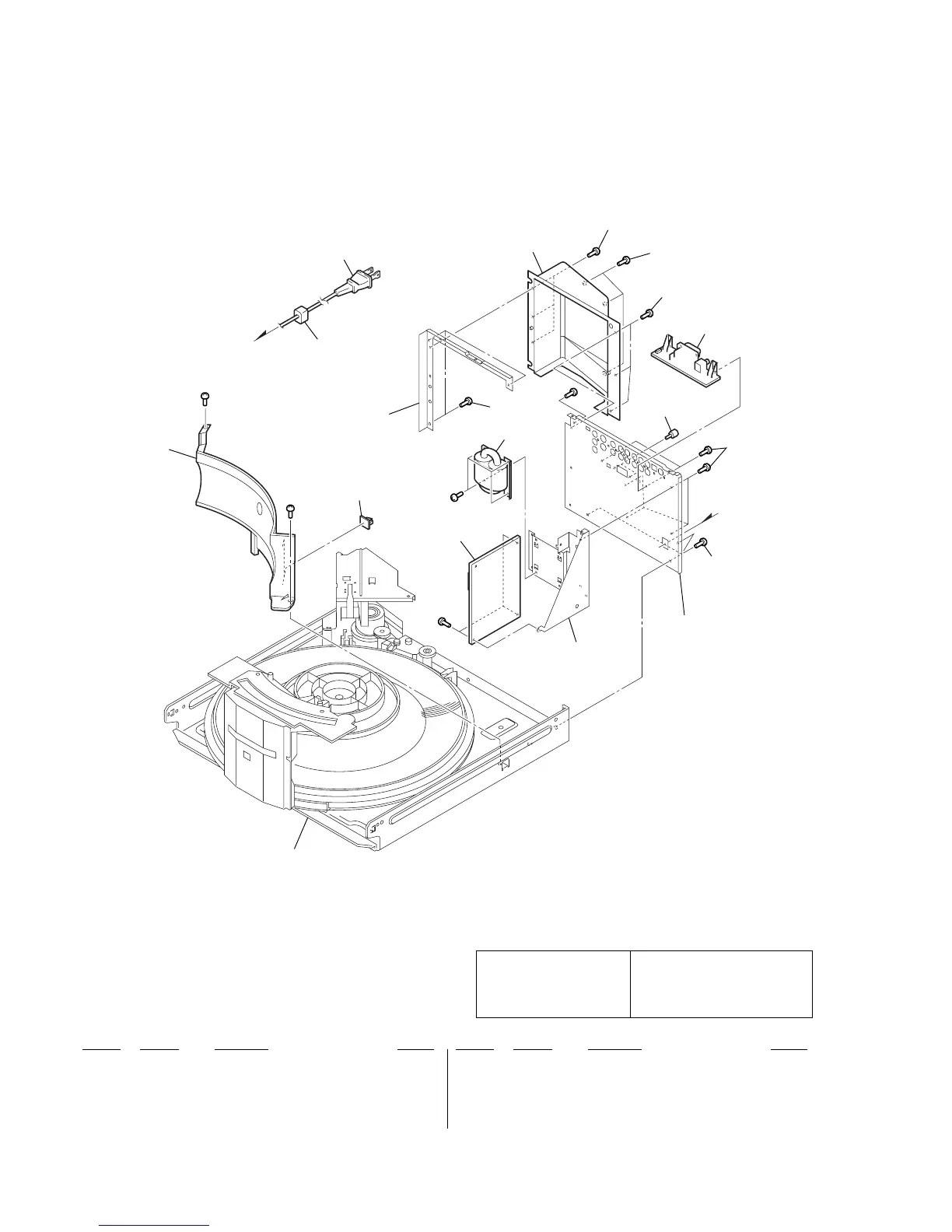

8-3. POWER BLOCK SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 4-226-841-02 COVER (PT)
102 1-477-957-11 POWER BLOCK (Including POWER BOARD)
103 A-4733-703-A RS-232C BOARD, COMPLETE
104 4-226-876-21 COVER (CDM)
0105 1-783-531-32 CORD, POWER
* 106 3-703-244-00 BUSHING (2104), CORD
109 3-704-515-21 SCREW (BV/RING)
110 4-250-786-01 LOCKING WIRE SADDLE
0T102 1-437-496-21 TRANSFORMER, POWER
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
101
102
110
109
109
103
104
109
109
109
109
105
106
not supplied
not supplied
supplied with
S801
not supplied
table section
#1
#1
#1
T102
#1
#1
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part num-
ber specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
