Sony DVP-CX777ES Service Manual

132
DVP-CX777ES

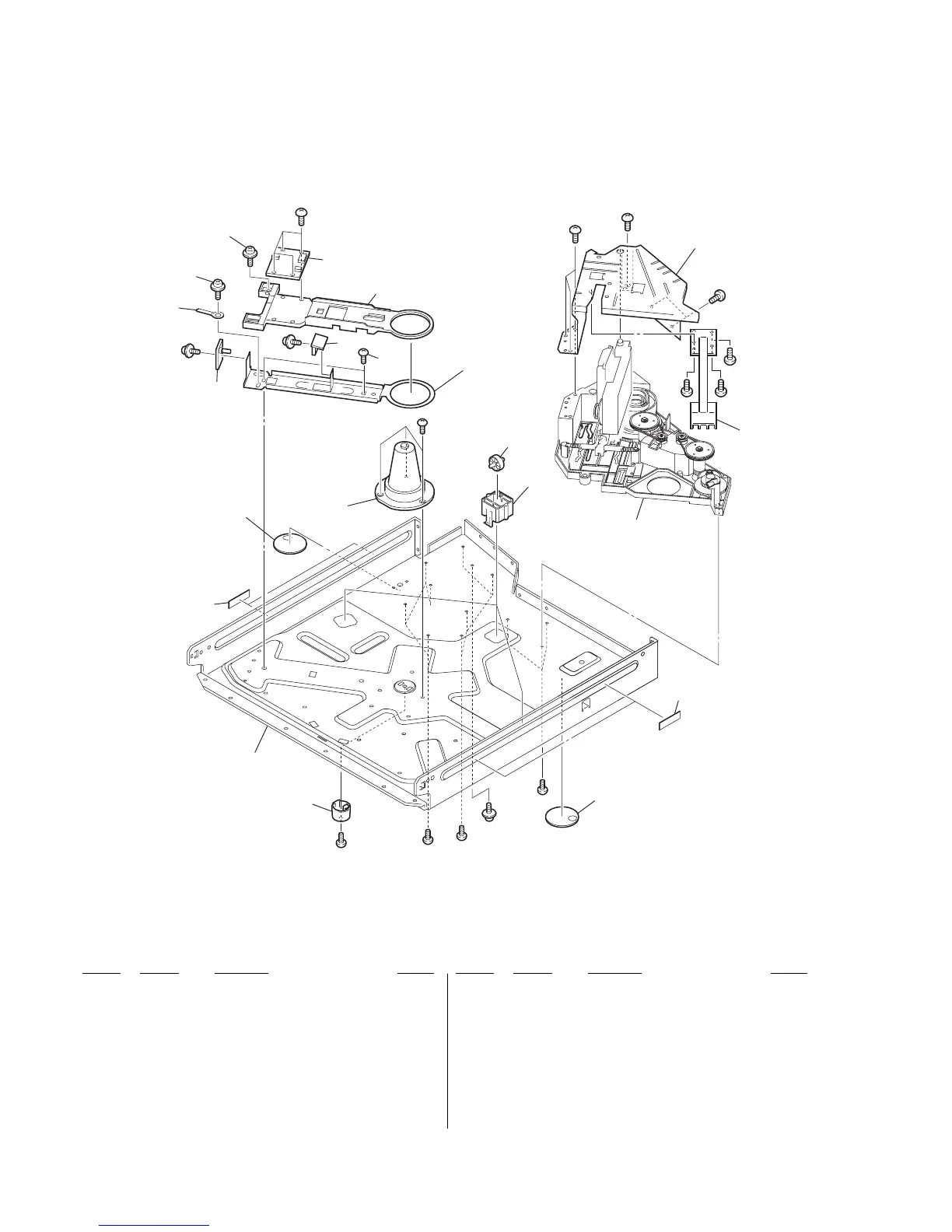

8-5. CHASSIS SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
201 3-703-249-01 SCREW, S TIGHT, +PTTWH 3X6
202 1-688-453-11 D. SENS OUT BOARD
203 A-4733-707-A SENSOR BOARD, COMPLETE
204 4-225-873-01 HOLDER (TABLE SENSOR 400)
205 1-688-452-11 D. SENS IN BOARD
206 4-216-096-01 SCREW (T1), STEP
207 4-216-088-02 GUIDE (DISC)
208 4-216-089-02 SHAFT (CENTER)
* 209 3-378-400-01 CUSHION, SARANET
210 4-216-093-01 ROLLER
211 4-216-092-03 HOLDER (ROLLER)
212 4-219-325-11 CUSHION (FOOT-L)
213 4-931-169-01 FOOT
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#5 7-685-645-79 SCREW +BVTP 3X6 TYPE2 N-S
#7 7-682-948-01 SCREW +PSW 3X8
#8 7-685-871-01 SCREW +BVTT 3X6
#1
#7
#1
#1
#1
212
212
213
209
207
211
210
not supplied
CD/DVD mechanism deck section-2
(pulley block)
208
204
206
205
#7
203
not supplied
not supplied
#1
#8
#1
#1
#1
#5
#5 #5
201
201
202
#7
not supplied
209
