DVP-CX777ES
SECTION 5
MECHANICAL ADJUSTMENTS
POP UP MECHANISM ADJUSTMENT
1. Connect the AC plug of the set to AC consent, then the set
enters standby mode.
2. Press the [TOP MENU], [CLEAR] and I/1 key in turn, then
the set enters the diag mode.
3. Select 2. Drive Manual Operation by pressing the [2] key.
4. Select 8. Changer Mecha check by pressing the [8] key.
5. Press the [ENTER] key, then the CDM initializies.
6. Press the [PAUSE] key, then the T.table rotates to the mecha
adjustment position, the door opens and the T. table locks. (Fig.
1)
7. Keep pressing the [RIGHT] key to raise the pop up part.
8. Loosen the adjusting screw, move the screwdriver left and right
until the lever (POP UP) does not touch the slit wall, and se-
cure the screw. (Fig. 2)
The following keys have special functions in this mode.
[UP] key : Loading mechanism IN operation
[DOWN] key : Loading mechanism OUT operation
[RIGHT] key : Pop up part UP operation
[LEFT] key : Pop up part DOWN operation
TABLE SENSOR ADJUSTMENT
After the Pop Up Mechanism Adjustment, perform this adjust-
ment continuously.
1. Loosen the fixing screw. Moving the holder little by little, stop
it at a boundary point where the PROGRESSIVE LED (blue)
goes off and the SACD LED (white) lights up. If the holder is
moved in reverse direction, stop the holder at a point where
the SACD LED goes off and the PROGRESSIVE LED lights
up.
2. Moving the T. table right and left with a hand after the screw
is fixed, the table will move by the play of the T. table. If the
LEDs light up alternately, the adjustment will be performed
correctly. (Fig. 3)

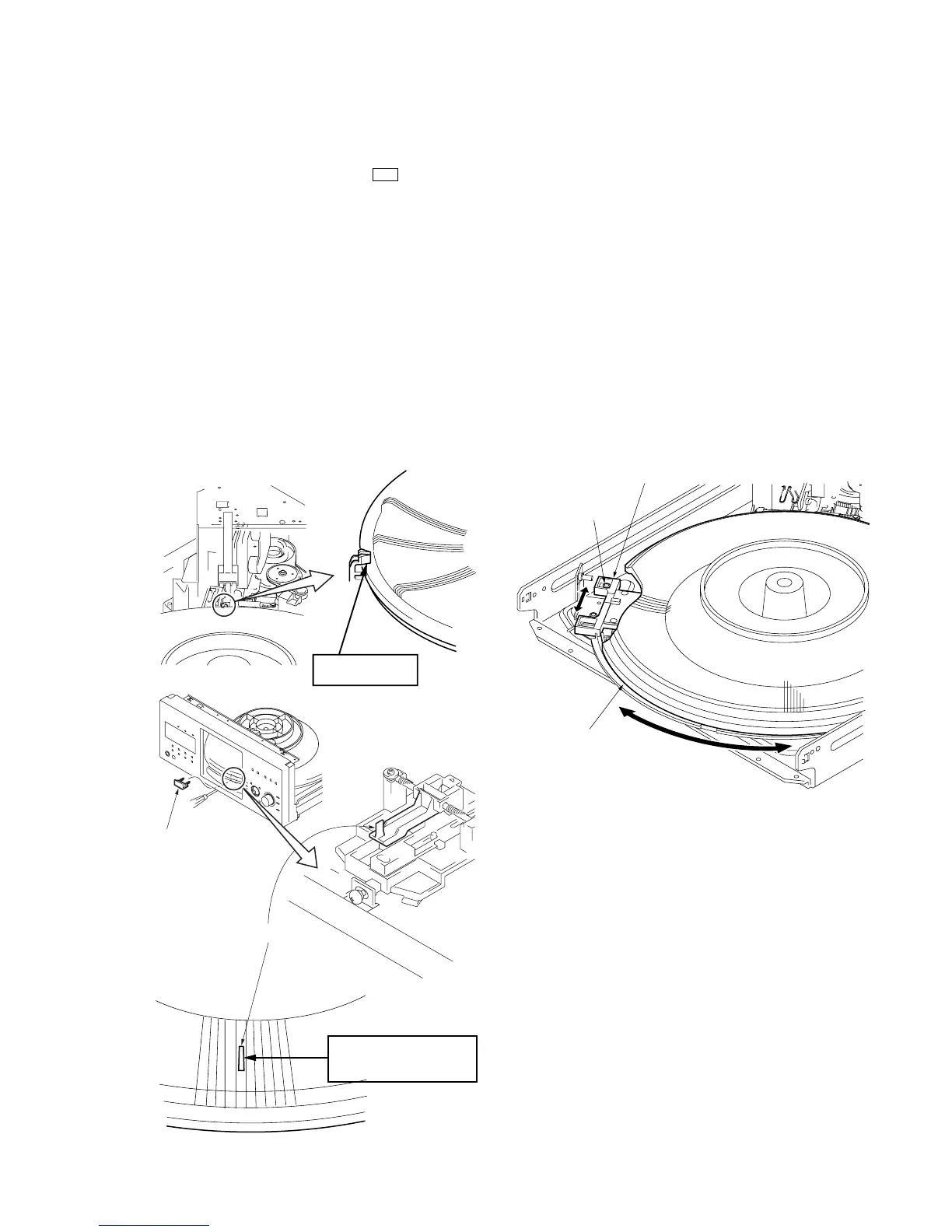

Fig. 1
Fig. 2
Fig. 3
Holder (table sensor 400)
S tight, screw
(PTTWH 3
×
6)
Swing
Tab le (400) assembly
At this position,this
part will be locked.
Lever (POP-UP 400)
Fix to the center so that the
lever (POP-UP 400) does
not touch the slit.
Cover (chassis 400)
