Sony DVP-CX777ES - Mechanism Deck Section-3 (Lever, Holder Block)

136
DVP-CX777ES
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
401 X-4952-499-1 LEVER (LOCK 400) ASSY
402 4-216-067-01 SPRING (CLAMP), COMPRESSION
403 3-701-441-21 WASHER
404 X-4952-501-1 HOLDER (DISC L400) ASSY
405 X-4952-502-1 HOLDER (DISC R400) ASSY
406 4-225-868-01 SHAFT (CLAMP 400)
407 3-325-697-21 WASHER
408 4-216-076-11 HOLDER (R)
409 4-216-077-01 SPRING (HOLDER FR), TORSION
410 4-225-871-03 HOLDER (F400)
411 X-4950-900-1 BRACKET (LEVER) ASSY
412 4-216-080-01 SPRING (LIMITTER), TORSION
413 4-216-079-02 LIMITTER (LEVER)
414 4-216-078-01 LEVER (LOADING)
415 4-998-716-01 SCREW, BU FITTING
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#6 7-624-106-04 STOP RING 3.0, TYPE -E

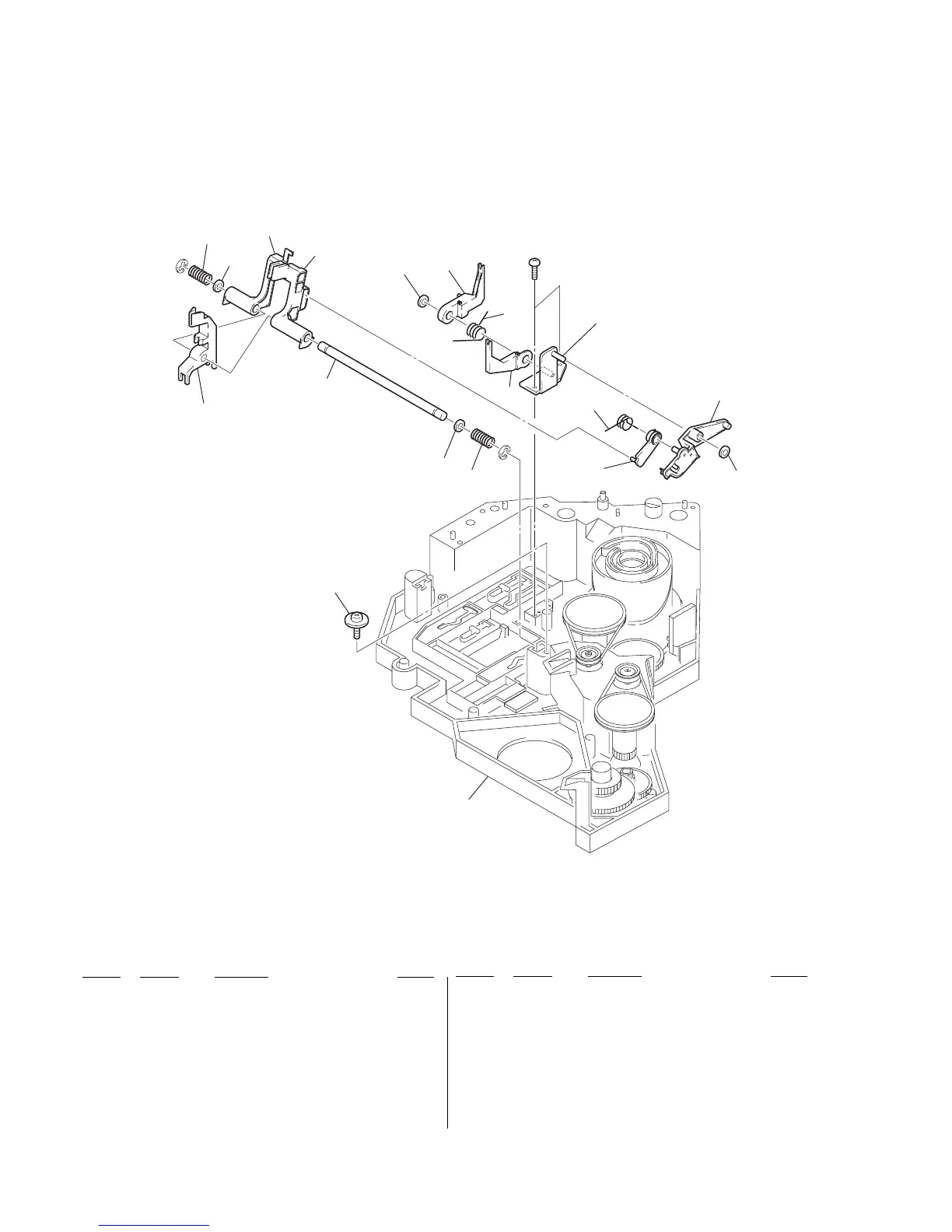

8-9. CD/DVD MECHANISM DECK SECTION-3
(LEVER, HOLDER BLOCK)
404
405
403
402
401
408
409
407
411
414
407
412
413
410
402
403
415
406
#6
#1
#6
