DVP-CX777ES

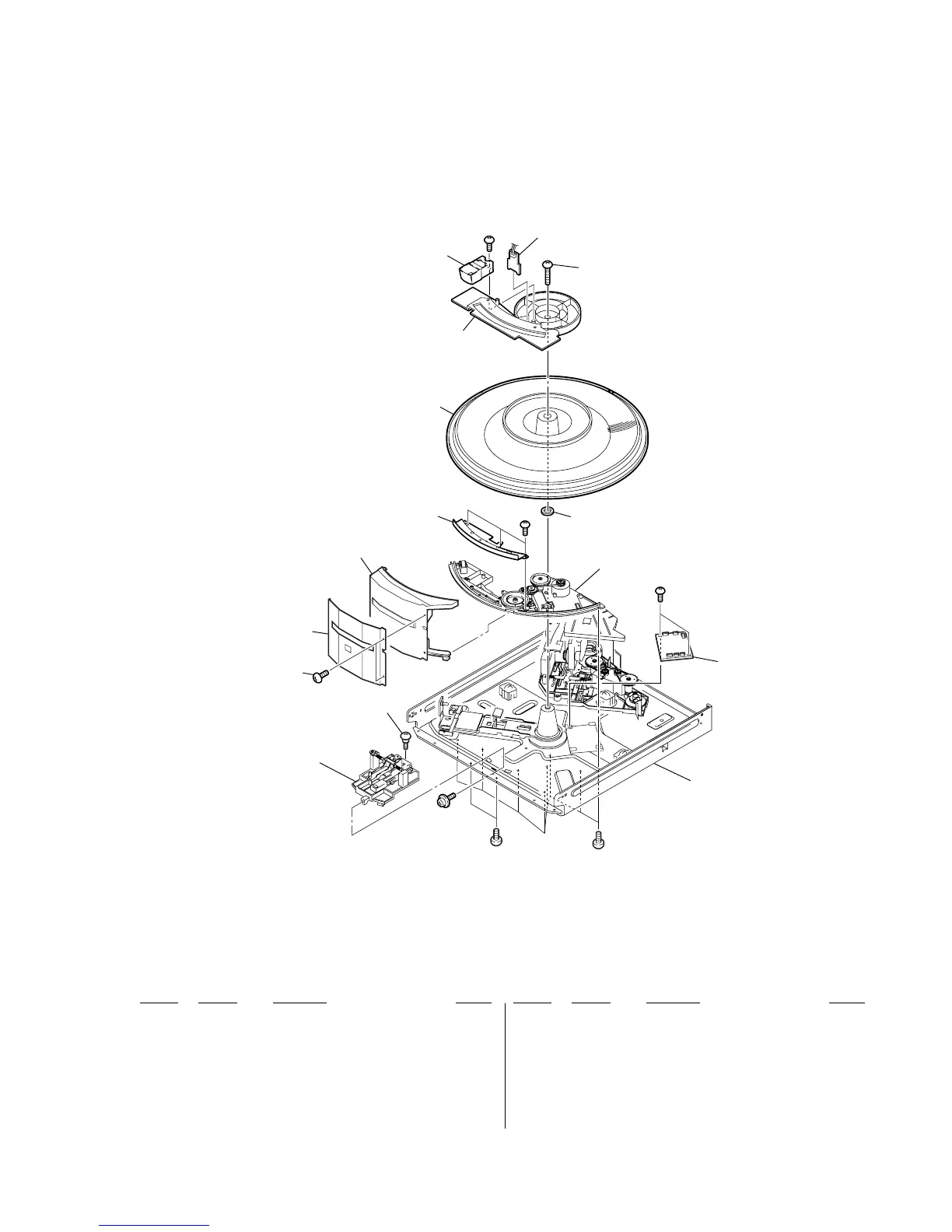

8-4. TABLE SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
151 X-4955-915-1 PANEL (DOOR) ASSY
152 4-226-834-01 COVER (TABLE)
153 X-4952-500-2 TABLE (400) ASSY
154 4-226-833-05 GUIDE (DOOR)
155 4-215-968-01 WINDOW (INTERNAL ILLUMINATION)
156 A-4733-717-A LED BOARD, COMPLETE
157 3-701-447-21 WASHER, 10
158 A-4733-705-A DRIVER BOARD, COMPLETE
159 3-356-601-11 SCREW, STEP
160 4-951-620-01 SCREW (2.6X8), +BVTP
161 X-4955-689-1 DOOR ASSY
162 3-703-136-31 SCREW (M3X14)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#4 7-685-903-11 SCREW +PTPWH 3X6 (TYPE2)
151
159
152
161
160
153
154
155
156
157
158
chassis section
base (door) section
CD/DVD mechanism deck
section-1
(pop-up block)
#1
#1
#1
#1
#1
#4
162
