DVP-CX777ES
457
458
#3
#7
#3
459
456
460
452
458
453
451
453
457
462
461
460
463
454
#1
not supplied
M601
#1
M602
not supplied
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
451 4-225-865-01 SLIDER (400)
452 1-688-448-11 LOCK SW BOARD
453 X-4952-503-1 LEVER (FULCRUM 400) ASSY
454 1-688-447-11 LAODING MOTOR BOARD
456 A-4672-676-B CAM ASSY
457 4-225-876-01 BELT (400)
458 4-225-870-01 PULLEY (400)
459 4-216-057-01 GEAR (CENTER 2)
460 4-216-058-01 GEAR (CENTER)
461 4-951-620-01 SCREW (2.6X8), +BVTP
462 1-688-446-11 LOADING SW BOARD
463 4-225-869-01 GEAR (TABLE 400)
M601 A-4672-895-A MOTOR (400) ASSY (TABLE)
M602 A-4672-895-A MOTOR (400) ASSY (LOADING)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#3 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3
#7 7-682-948-01 SCREW +PSW 3X8

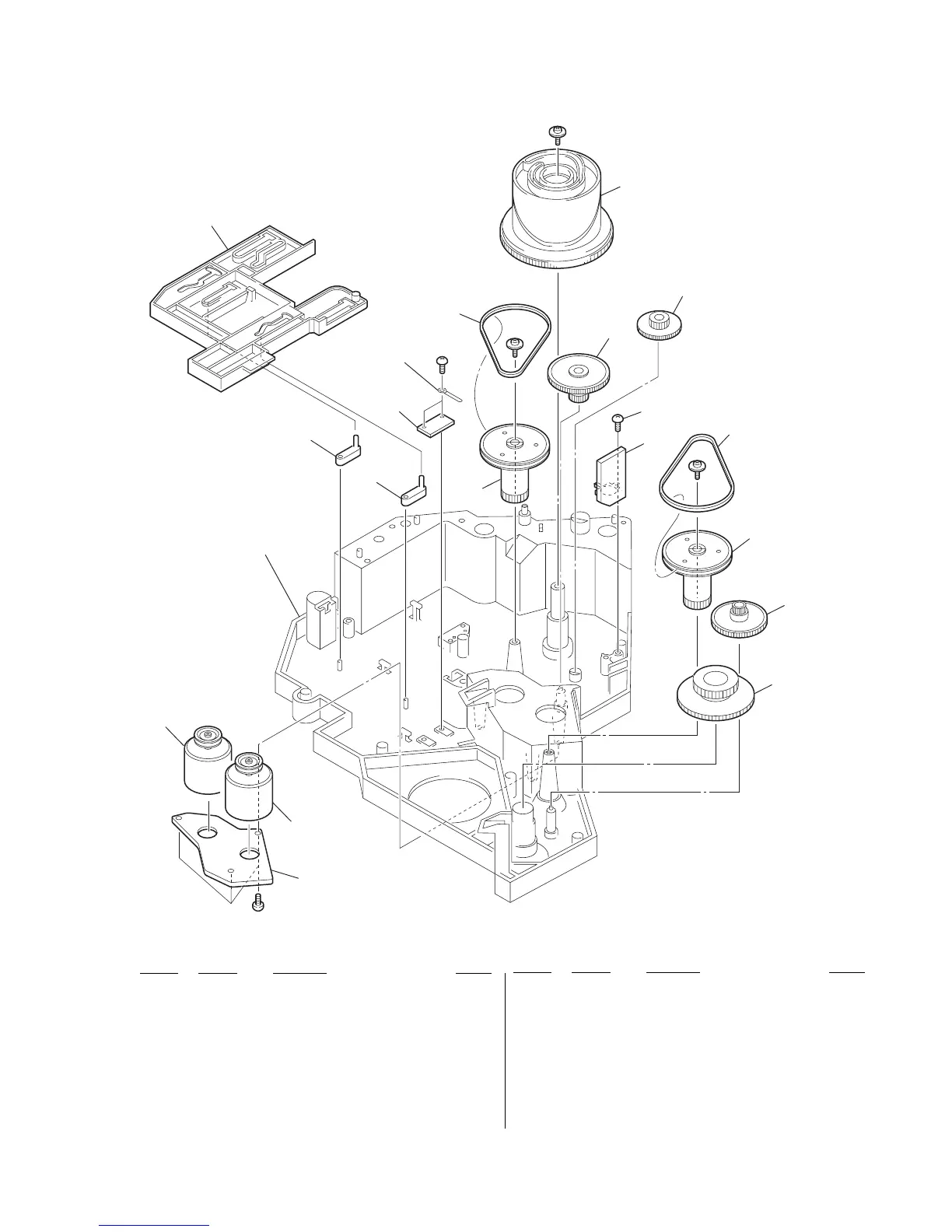

8-10. CD/DVD MECHANISM DECK SECTION-4
(GEAR, MOTOR BLOCK)
