D
VP-CX777ES
90
90
7-40.
PRINTED

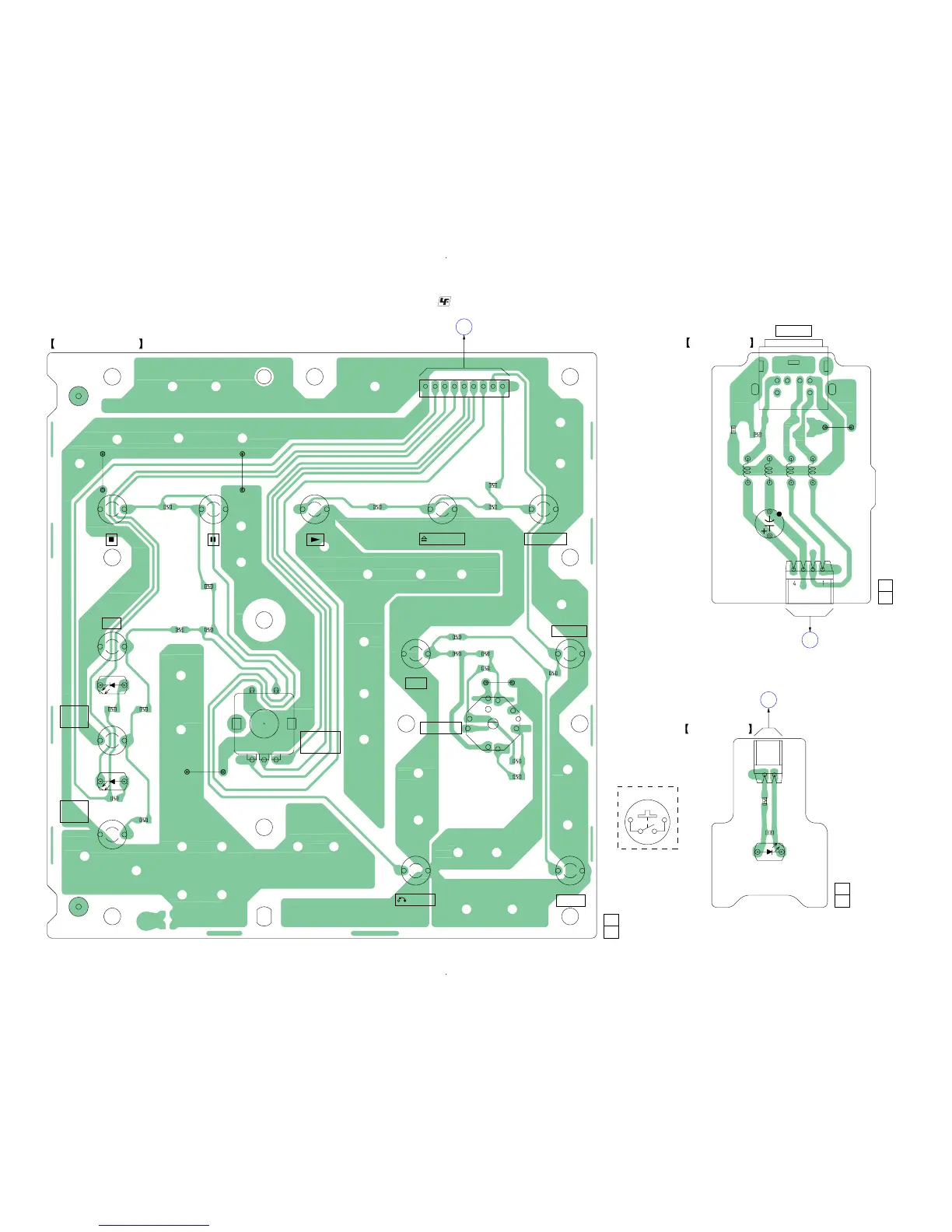

WIRING BOARDS – P
ANEL Section –
•
See page 56 for Circuit Boards Location.
:Uses unleaded solder.
JW1101
JW1102
LP1101
JW1103
LP1102
S1108
S1107
S1103
S1102
S1101
S1110
S1111
S1112
S1104
S1105
S1106
S1109
D1101
RE1101
JG1101
CN1101
D1102
R1102
R1103
R1104
R1105
R1106
R1107
R1108
R1109
R1110
R1111
R1112
R1113
R1114
R1115
R1117
R1116
R1118
R1101
JW821
L823
L822
CNP503
L821
C823
L824
J821
C822
C821
CNP504
D801
C801
R801
PANEL-R BOARD
1-688-445-
11
(11)
1
9
PANEL-L BOARD
CN1102
R
OPEN/CLOSE
DISC EJECT
TOP MENU
MENU
1
2
3
4
8
7
5
6
PUSH ENTER
DISPLAY
RETURN
54
13
ROTARY
ENCODER
DISC AMS
PUSH ENTER
+100
DISC
CHANGE
D1101, S1111
DIRECT
SEARCH
D1102, S1112
S1101 – 1112
KEY BOARD
1-688-454-
11
(11)
2
4
65
3
1
PANEL-L BOARD
CN1103
S
12
1-688-449-
11
(11)
LED BOARD
MB BOARD
CN105
E
(ILLUMINATION)
KEYBOARD
(Page 86)
(Page 87)
(Page 72)
89
91
Table of Contents
Self Diagnosis Function
2
Following Discs
4
Region Code
4
This Player Can Play the
4
Table of Contents
5
1 Servicing Notes
6
2 General
10
3 Disassembly
11
Disassembly Flow
11
Case (ES) Assy
12
MB Board
12
AV Board
13
Bracket (L)/(R)
13
Front Panel Section
14
Cover (PT)/(CDM)
14
DVBU26 Assy
15
Power Block, Power Transformer (T102)
15
Table (400) Assy
16
Door Block, Base (Door) Assy
16
DC Motor (Door) (M603)
17
Holder (Table Sensor 400)
17
SENS out Board, D. SENS in Board
18
Pop-Up (400) Assy
18
Door SW Board
19
Lock SW Board, Loading SW Board
20
CD/DVD Mechanism Deck Block (CDM62-DVBU26)
21
Motor (400) Assy (Loading) (M602)/(Table) (M601), Loading Motor Board
21
Optical Pick-Up (KHM-290AAA)
22
4 Test Mode
23
5 Mechanical Adjustments
45
6 Electrical Adjustments
46
7 Diagrams
50
Block Diagram - RF Section
50
Block Diagram - SERVO/CHANGER Section
51
Block Diagram - AUDIO Section
52
Block Diagram - VIDEO Section
53
Block Diagram - PANEL/POWER SUPPLY Section
54
Note for Printed Wiring Boards and Schematic Diagrams
55
Schematic Diagram - MB Board (1/15)
57
Schematic Diagram - MB Board (2/15)
58
Schematic Diagram - MB Board (3/15)
59
Schematic Diagram - MB Board (4/15)
60
Schematic Diagram - MB Board (5/15)
61
Schematic Diagram - MB Board (6/15)
62
Schematic Diagram - MB Board (7/15)
63
Schematic Diagram - MB Board (8/15)
64
Schematic Diagram - MB Board (9/15)
65
Schematic Diagram - MB Board (10/15)
66
Schematic Diagram - MB Board (11/15)
67
Schematic Diagram - MB Board (12/15)
68
Schematic Diagram - MB Board (13/15)
69
Schematic Diagram - MB Board (14/15)
70
Schematic Diagram - MB Board (15/15)
71
MB Board (Component Side)
72
Printed Wiring Board MB Board (Component Side)
72
MB Board (Conductor Side)
73
Printed Wiring Board MB Board (Conductor Side)
73
Printed Wiring Board - DRIVER Board
74
Schematic Diagram - DRIVER Board
75
Printed Wiring Boards - MOTOR/SWITCH Section
76
Schematic Diagram - MOTOR/SWITCH Section
77
Printed Wiring Boards - SENSOR Section
78
Schematic Diagram - SENSOR Section
79
Printed Wiring Board - AV Board (Component Side)
80
Printed Wiring Board - AV Board (Conductor Side)
81
Printed Wiring Board - RS-232C Board
82
Schematic Diagram - AV (1/3)/RS-232C Boards
83
Schematic Diagram - AV Board (2/3)
84
Schematic Diagram - AV Board (3/3)
85
Printed Wiring Board - PANEL-L Board (Component Side)
86
PANEL-L Board (Conductor Side)
87
Schematic Diagram - PANEL-L Board (1/2)
88
Schematic Diagram - PANEL-L Board (2/2)
89
Printed Wiring Boards - PANEL Section
90
Schematic Diagram - PANEL Section
91
Printed Wiring Board - POWER Board
92
Schematic Diagram - POWER Board
93
IC Pin Function Description
102
8 Exploded Views
128
Overall Section
128
Front Panel Section
129
Power Block Section
130
Table Section
131
Chassis Section
132
Base (Door) Section
133
CD/DVD Mechanism Deck Section-1
134
(Pop-Up Block)
134
CD/DVD Mechanism Deck Section-2 (Pulley Block)
135
CD/DVD Mechanism Deck Section-3
135
(Lever, Holder Block)
136
CD/DVD Mechanism Deck Section-4
137
(Gear, Motor Block)
137
Optical Pick-Up Section (DVBU26)
138
9 Electrical Parts List
139
Revision History
154
Other manuals for Sony DVP-CX777ES
Operating Instructions
112 pages
Integration Guide
2 pages
Specifications
2 pages
Integration Notes
4 pages
