DVP-CX777ES
19

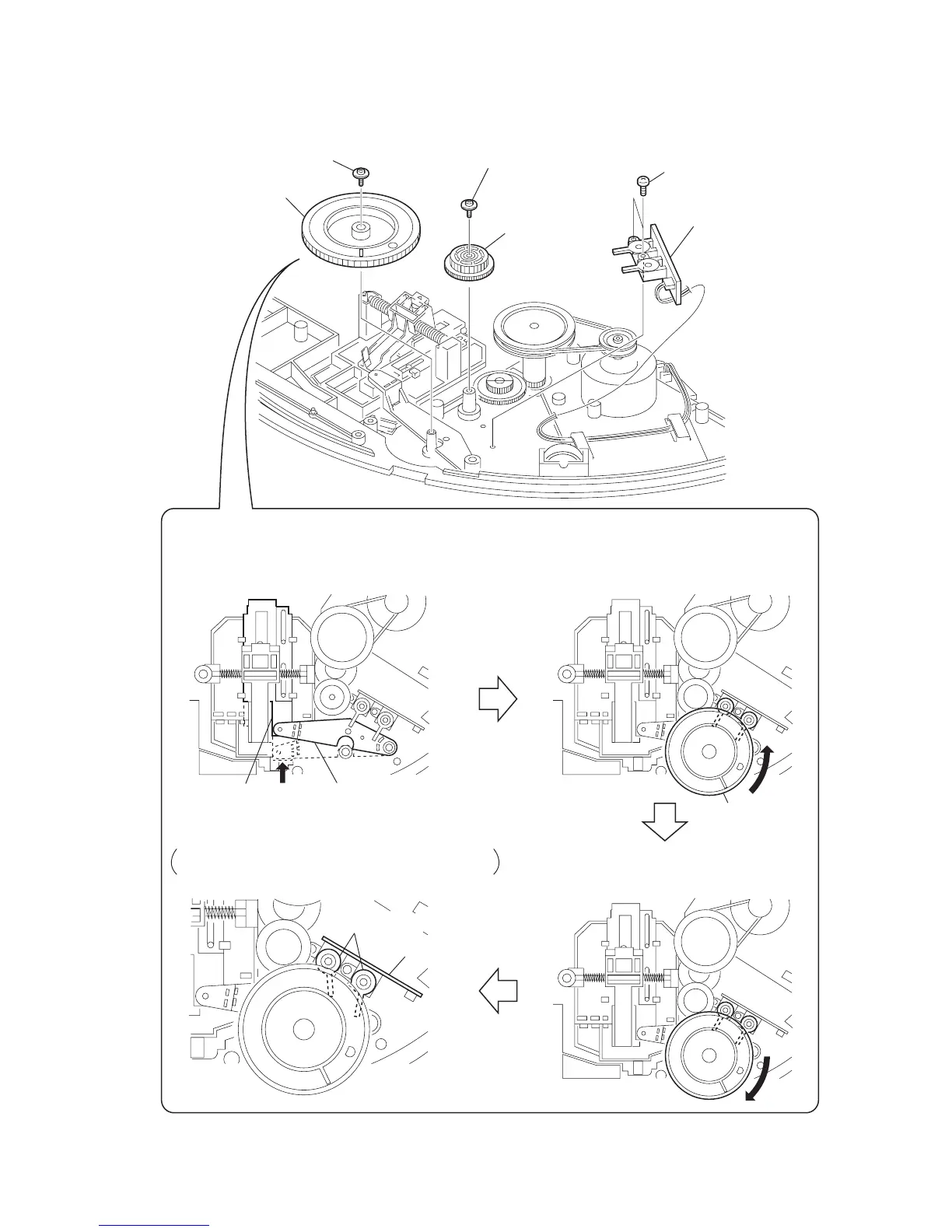

3-16. DOOR SW BOARD
5
two screws
(BVTP 2.6
×
8)
3
screw (PTPWH 2.6
×
8)
1
screw (PTPWH 2.6
×
8)
1
Move the slider (pop-up) and the lever (pu joint) fully
in the direction of the arrow
A
.
2
Install the gear (cam) in the direction shown
in the illustration and rotate it fully
in the direction of the arrow
B
.
3
When the gear (cam) happens to go too deep,
return it to the original position
in the direction of the arrow
C
.
4
gear (B)
2
gear (cam)
6
door SW board
C
B
A
lever (pu joint)
two rotary switches
slider (pop-up)
gear (cam)
door SW board
The levers of the two rotary switches on the door SW board
are shown in the illustration below.
Precaution during the gear (cam) installation
To Next Page
