Sony DVP S9000ES Service Manual

8-1
NOTE:
• -XX and -X mean standardized parts, so they may
have some difference from the original one.
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• Abbreviation
AUS : Australian model
CN : Chinese model
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Hardware (# mark) list and accessories and pack-
ing materials are given in the last of the electrical
parts list.
SECTION 8
REPAIR PARTS LIST
8-1. EXPLODED VIEWS
DVP-S9000ES
The components identified by mark
0 or dotted line with mark 0 are
critical for safety.
Replace only with part number speci-
fied.
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
CND : Canadian model
HK : Hong Kong model
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark

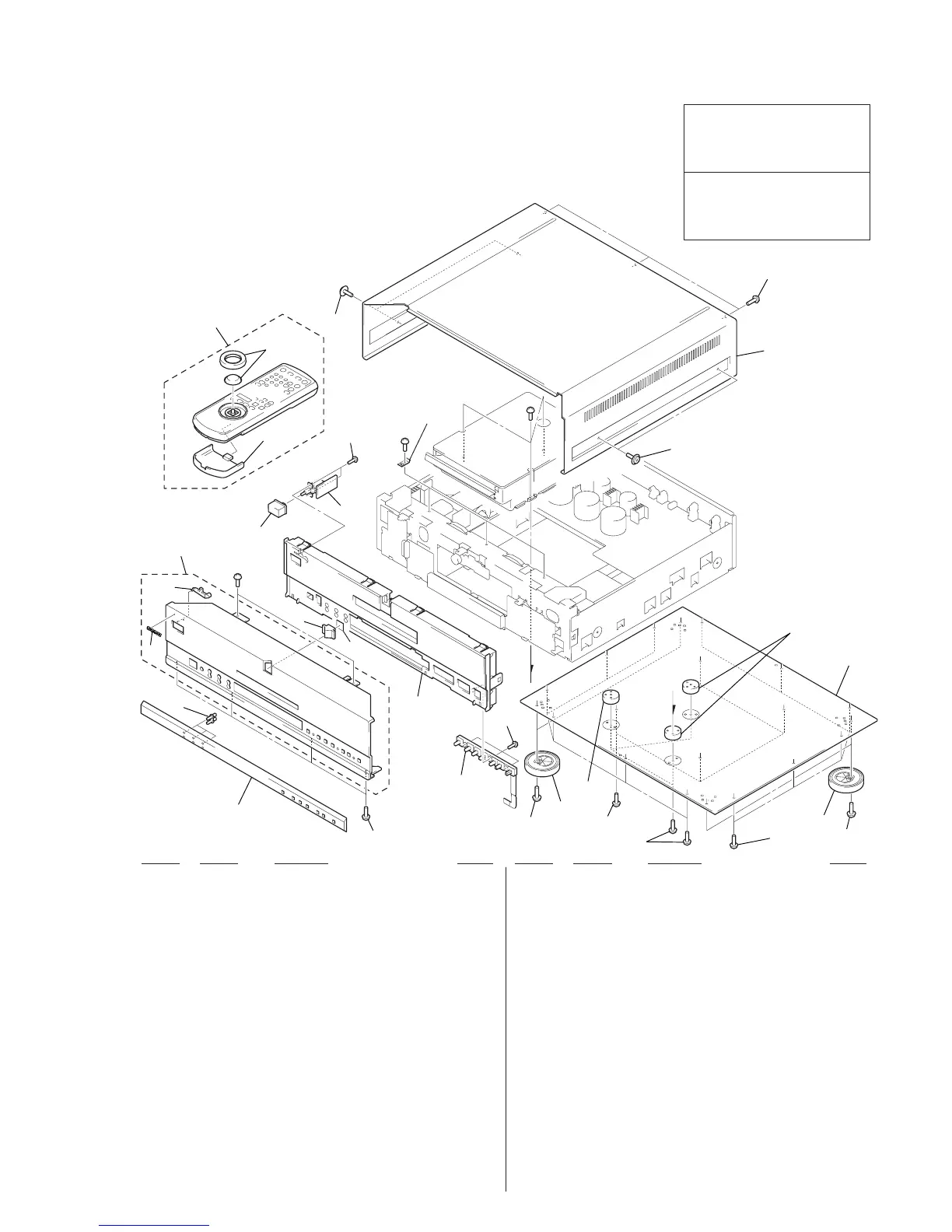

8-1-1. CASE ASSEMBLY
1 3-063-216-01 WINDOW, INDICATION (EXCEPT US, CND)
1 3-063-216-11 WINDOW, INDICATION (US, CND)
2 3-063-214-01 INDICATOR (FU)
3 4-951-620-01 SCREW (2.6X8), +BVTP
4 X-3950-874-1 PANEL (AL-G) ASSY, FRONT
(EXCEPT US, CND)
4 X-3950-875-1 PANEL (AL-B) ASSY, FRONT (US, CND)
5 4-942-568-01 EMBLEM (NO.5), SONY (US, CND)
5 4-942-568-31 EMBLEM (NO.5), SONY (EXCEPT US, CND)
6 3-063-212-01 INDICATOR (POWER)
7 3-063-215-01 INDICATOR (TOP)
8 X-3951-113-1 PANEL (M-G) ASSY, FRONT (EXCEPT US, CND)
8 X-3951-114-1 PANEL (M-B) ASSY, FRONT (US, CND)
9 1-476-236-11 SWITCH BLOCK, CONTROL
10 4-923-520-01 KNOB, POWER (US, CND)
10 4-923-520-61 KNOB, POWER (EXCEPT US, CND)
* 11 A-6065-572-A SW-344 BOARD, COMPLETE
12 3-053-984-11 SCREW (+BV/CU)
13 3-710-901-11 SCREW, TAPPING (US, CND)
13 3-710-901-61 SCREW, TAPPING (EXCEPT US, CND)
14 X-3951-127-3 CASE ASSY, TOP (EXCEPT US, CND)
14 X-3951-126-3 CASE ASSY, TOP (US, CND)
15 3-063-189-01 BRACKET, MD
16 1-476-249-11 COMMANDER, STANDARD (RMT-D122A)
(US, CND)
16 1-476-249-31 COMMANDER, STANDARD (RMT-D122P)
(AEP, UK)
16 1-476-249-41 COMMANDER, STANDARD (RMT-D122E)
(HK, CN)
16 1-476-249-51 COMMANDER, STANDARD (RMT-D122O)
(AUS)
17 X-3951-082-1 FOOT ASSY
18 X-3951-122-3 BASE ASSY
19 3-063-217-01 ILLUMINATOR (TOP)
20 3-709-493-01 COVER, BATTERY (for RMT-D122E/D122O/
D122P) (EXCEPT US, CND)
20 3-709-493-11 COVER, BATTERY (for RMT-D122A) (US, CND)
21 3-066-209-01 SCREW
1
2
6
5
10
20
11
3
7
4
3
#1
#3
16
13
12
14
13
15
18
17
12
12
12
15
17
9
3
21
21
8
not
supplied
19
#1
not
supplied
