Sony DVP S9000ES - Digital out Coaxial Jack); Printed Wiring Boards and Schematic Diagrams

DVP-S9000ES
4-7 4-8
RF/SERVO
TK-58
PS-436 (US, Canadian)
PS-438 (EXCEPT US, Canadian)
(POWER SUPPLY)
PS-437 (US, Canadian)
PS-439 (EXCEPT US, Canadian)
(POWER SUPPLY)
AU-226
(AUDIO)
CO-26
(DIGITAL OUT COAXIAL JACK)
ER-11 (AEP, UK)
(EURO AV)
VP-52
(VIDEO)
MB-91
(SIGNAL PROCESS/SERVO)
AC-113 (US, Canadian)
AC-114 (EXCEPT US, Canadian)
(STANDBY)
BZ-1
(BUZZER)
SW-344
(POWER SWITCH)
MS-59
(LOADING MOTOR)
CK-95
(SENSOR)
TK-58
(RF/SERVO)
()
FR-172
DC-DC CONVERTER,
REMOTE COMMANDER
RECEIVER
()
FL-114
FUNCTION SWITCH,
IF CON
4-2. PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS

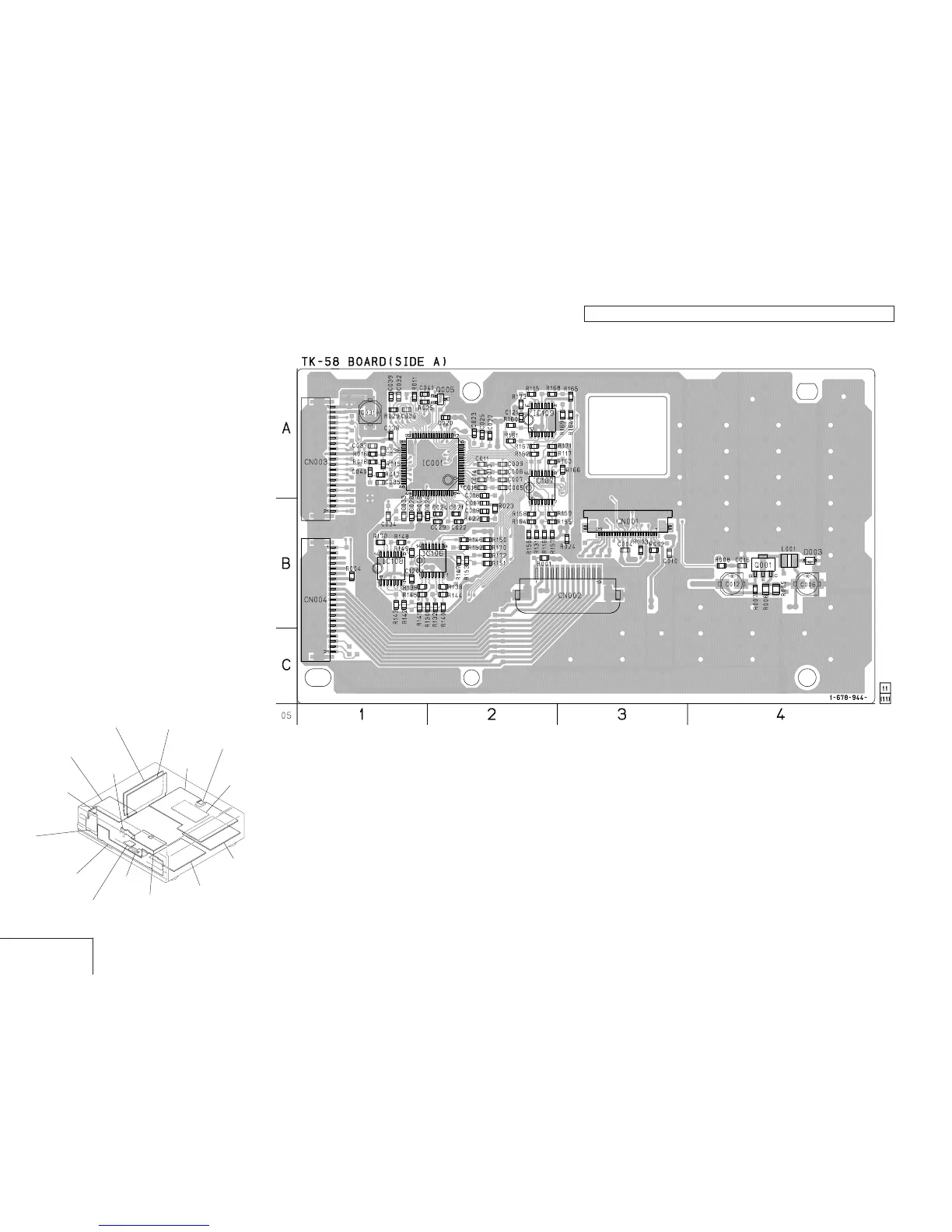

TK-58 (RF/SERVO) PRINTED WIRING BOARD
– Ref. No.: TK-58 board; 1,000 series –
TK-58 BOARD (SIDE A)
CN001 B-3
CN002 B-3
CN003 A-1
CN004 B-1
D003 B-4
IC001 A-2
IC107 A-2
IC109 A-2
Q001 B-4
Q005 A-2
There are a few cases that the part isn't mounted in this model is printed on this diagram.
