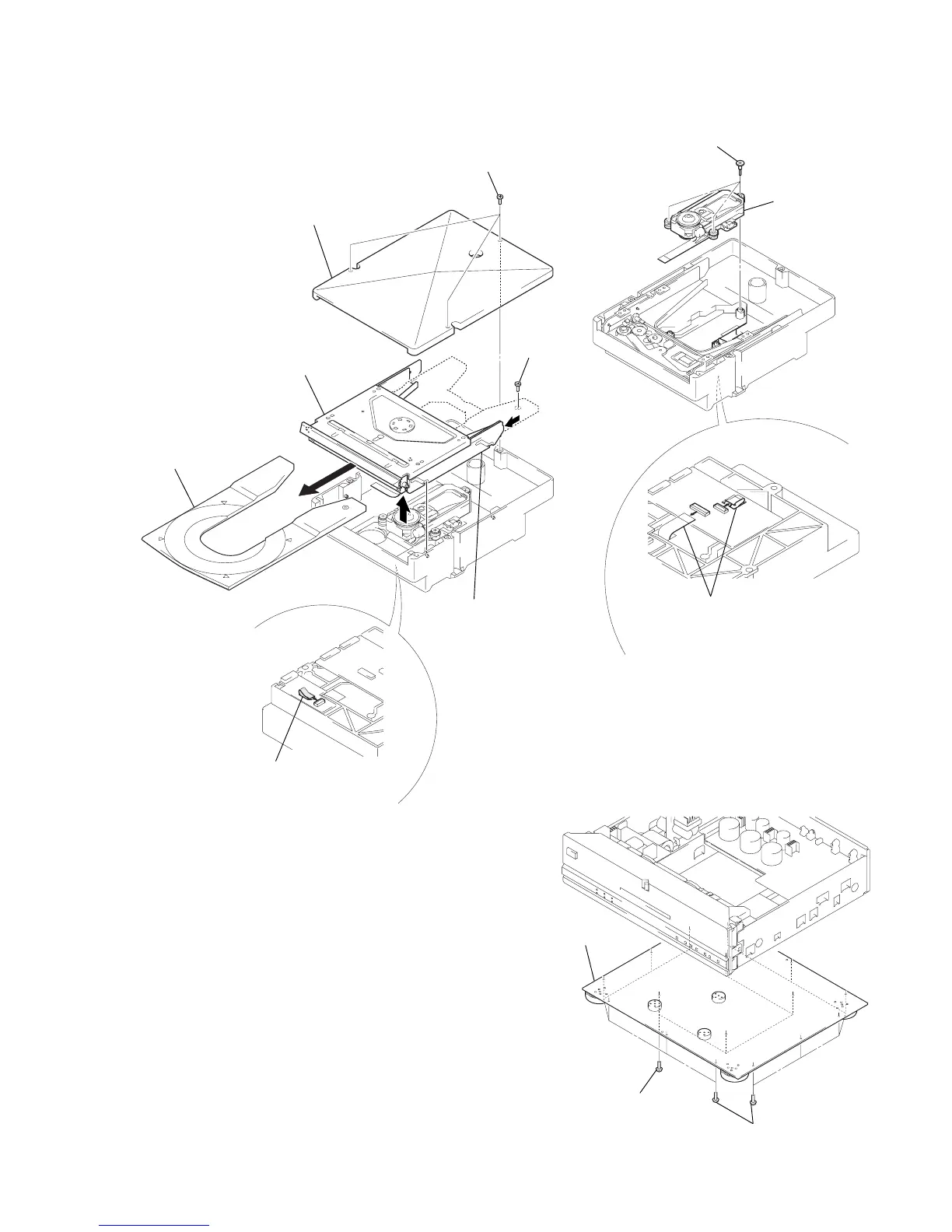

2-3
2-9.
LO
ADING ASSEMBL
Y REMO
V
AL
2-10.
OPTICAL PICK-UP REMO
V
AL
2-11.
B
ASE ASSEMBL
Y REMO
V
AL
1
Three hexagon soc
ket bolts
(3
×
10)
2
MD cover
7
Loading assembly
6
T
ray assemb
ly
4
Screw
(B3
×
8)
3
Flexib
le board
(CN602)
5
Slide the slider (R)
and lift up the loading
assembly
.
2
Three step screws
3
Optical pick-up
1
T
wo flexib
le boards
(CN001, 002)
3
Base assembly
1
Four scre
ws
(BV/CU)
2
T
welve scre
ws
(BV/CU)
25
27
Table of Contents
Specifications
1
Table of Contents
3
Section Title Page
4
Service Note
5
General
6
This Player Can Play the Following Discs
6
Getting Started
7
Channel Surround Hookups
8
Playing Discs
9
Using the Front Panel Display
11
Control Menu Item List
12
Labeling the Disc
13
Changing the Sound
13
Video Control
14
Checking the Play Information
15
Playing Repeatedly (Repeat Play)
16
Settings and Adjustments
17
Using the Setup Display
17
Setup Display Item List
17
Language Setup
18
Audio Setup
19
Additional Information
21
Language Code List
22
Index to Parts and Controls
22
Disassembly
24
Top Case Removal
24
Front Panel Removal
24
Board Removal
24
PS-436/437/438/439 Board Removal
25
Board Removal
25
Mechanism Deck Removal
25
Loading Assembly Removal
26
Optical Pick-Up Removal
26
Base Assembly Removal
26
Internal View
27
Circuit Boards Location
28
Block Diagrams
29
Overall Block Diagram
29
Rf/Servo Block Diagram
30
Signal Process 1 Block Diagram
31
Signal Process 2 Block Diagram
32
Video 1 Block Diagram
33
Video 2 Block Diagram
34
System Control Block Diagram
35
Audio Block Diagram
36
Interface Control Block Diagram
37
Power 1 Block Diagram
38
Power 2 Block Diagram
39
Printed Wiring Boards and Schematic Diagrams
40
Frame Schematic Diagram
41
Frame (1) Schematic Diagram
41
Frame (2) Schematic Diagram
42
Digital out Coaxial Jack)
43
Printed Wiring Boards and Schematic Diagrams
43
VP-52 (VIDEO ENCODER) Schematic Diagram
64
VP-52 (PROGRESSIVE) Schematic Diagram
65
VP-52 (SGRAM) Schematic Diagram
66
VP-52 (D/A CONVERTER) Schematic Diagram
67
VP-52 (VIDEO BUFFER) Schematic Diagram
68
CURRENT PULSE D/A, AMP) Schematic Diagram
72
ER-11 (EURO AV1) Schematic Diagram
75
EURO AV2) Schematic Diagram
76
IF CON) Schematic Diagram
79
LED DRIVE), BZ-1 (BUZZER) Schematic Diagram
80
DC-DC CONVERTER, REMOTE COMMANDER RECEIVER) Schematic Diagram
82
AC-113/114, SW-344 Printed Wiring Boards
83
AC-113/114 (STANDBY), SW-344 (POWER SWITCH) Schematic Diagram
85
LOADING MOTOR), CK-95 (SENSOR) Printed Wiring Boards and Schematic Diagram
86
Power Supply
87
PS-436/438 Printed Wiring Board
87
PS-436/438 (POWER SUPPLY) Schematic Diagram
89
PS-437/439 (POWER SUPPLY) Schematic Diagram
90
PS-437/439 Printed Wiring Board
91
IC Pin Function Description
93
Test Mode
95
General Description
95
Starting Test Mode
95
Syscon Diagnosis
95
Drive Auto Adjustment
99
Drive Manual Operation
101
Mecha Aging
103
Emergency History
103
Version Information
104
Video Level Adjustment
104
If con Self Diagnostic Function
105
Electrical Adjustments
113
Power Supply Check
113
Board
113
Adjustment of System Control
114
System Clock 27 Mhz Adjustment
114
Adjustment of Video System
114
Interface Video Output Level Adjustment
114
S-Terminal Output Check
114
Checking Component Video Output B-Y
114
Checking Component Video Output R-Y
115
Component Video Output Level Adjustment
115
Progressive Video Output Level Adjustment
115
Checking RGB Output R
115
Checking RGB Output G
116
Checking RGB Output B (AEP, UK Model)
116
Checking S Video Output S-C
116
Adjustment Related Parts Arrangement
117
Repair Parts List
119
Exploded Views
119
Case Assembly
119
Chassis Assembly
120
Mechanism Deck Assembly
121
Electrical Parts List
122
