Sony DVP S9000ES Service Manual

8-3
Ref. No. Part No. Description RemarkRef. No. Part No. Description Remark
101 X-3950-950-1 TRAY ASSY
* 102 A-6065-574-A MS-59 BOARD, COMPLETE
103 1-757-068-11 CABLE, FLEXIBLE FLAT (FCM-13)
104 A-6062-468-A LOADING ASSY (EXCEPT US, CND)
104 A-6062-471-A LOADING ASSY (US, CND)
105 3-063-621-01 SPRING, DOOR LIMITTER
106 3-533-073-01 WASHER
107 4-981-923-01 SCREW (M), STEP
108 3-064-313-01 INSULATOR (H)
0 109 A-6062-397-A SERVICE ASSY, KHM-220AAA
110 X-3950-949-1 BASE ASSY, MECHANICAL
* 111 A-6065-566-A TK-58 BOARD, COMPLETE
112 1-757-065-11 CABLE, FLEXIBLE FLAT (FMT-29)
* 113 A-6065-575-A CK-95 BOARD, COMPLETE
114 3-058-511-11 +BV 1BR
115 X-3950-945-1 DOOR ASSY
M501 1-763-397-21 MOTOR, DC (RF-300FA-12350) (LOADING)

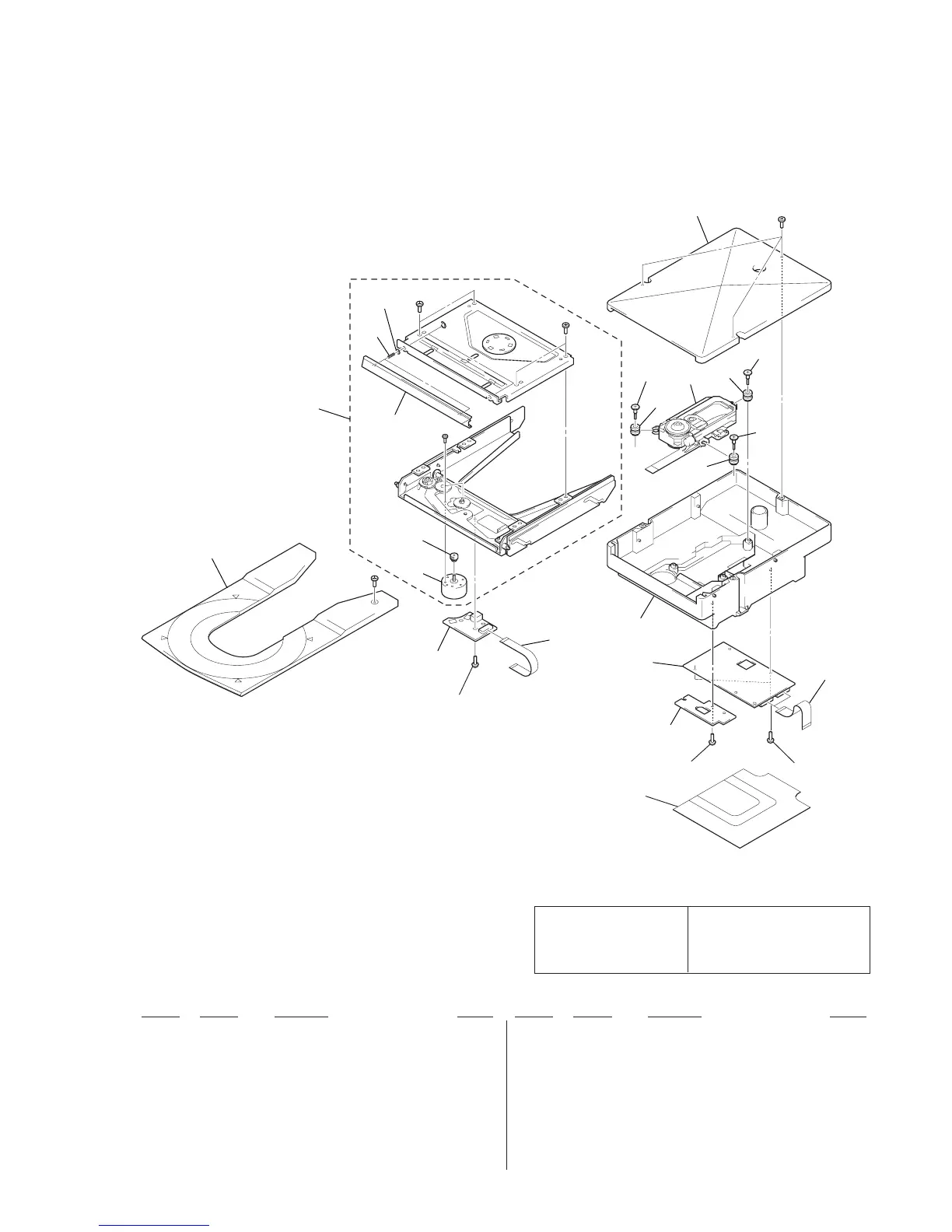

8-1-3. MECHANISM DECK ASSEMBLY
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le neméro spécifié.
101
#5
#6
#6
#7
#9
#8
M501
not
supplied
not
supplied
102
103
104
115
105
106
107
107
108
108
109
108
110
111
113
112
107
114
not
supplied
114
114
