Sony DVP S9000ES Service Manual

2-5

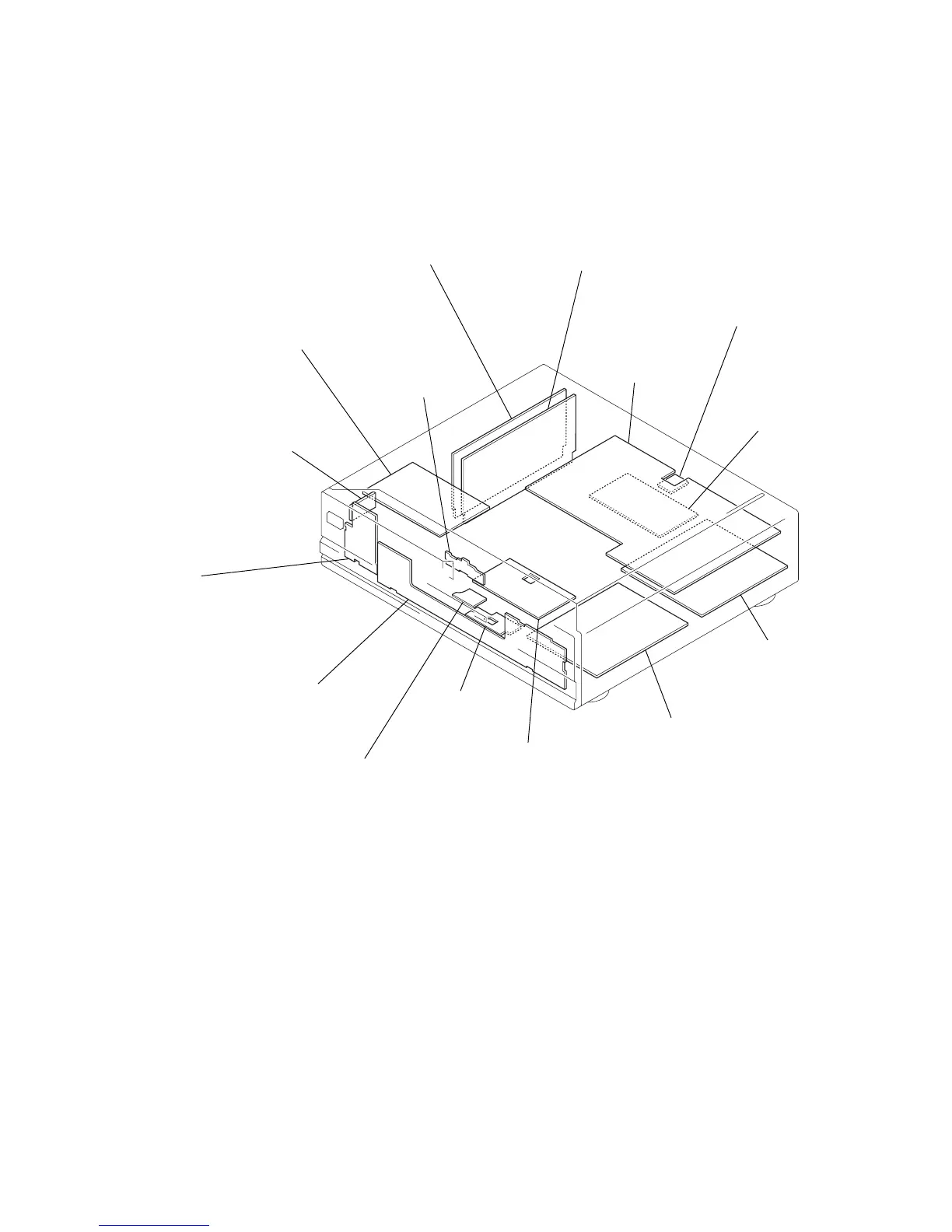

2-13. CIRCUIT BOARDS LOCATION
2-5 E
PS-436 (US, Canadian)
PS-438 (EXCEPT US, Canadian)
(POWER SUPPLY)
PS-437 (US, Canadian)
PS-439 (EXCEPT US, Canadian)
(POWER SUPPLY)
AU-226
(AUDIO)
CO-26
(DIGITAL OUT COAXIAL JACK)
ER-11 (AEP, UK)
(EURO AV)
VP-52
(VIDEO)
MB-91
(SIGNAL PROCESS/SERVO)
AC-113 (US, Canadian)
AC-114 (EXCEPT US, Canadian)
(STANDBY)
BZ-1
(BUZZER)
SW-344
(POWER SWITCH)
MS-59
(LOADING MOTOR)
CK-95
(SENSOR)
TK-58
(RF/SERVO)
()
FR-172
DC-DC CONVERTER,
REMOTE COMMANDER
RECEIVER
()
FL-114
FUNCTION SWITCH,
IF CON
